Let’s get started!

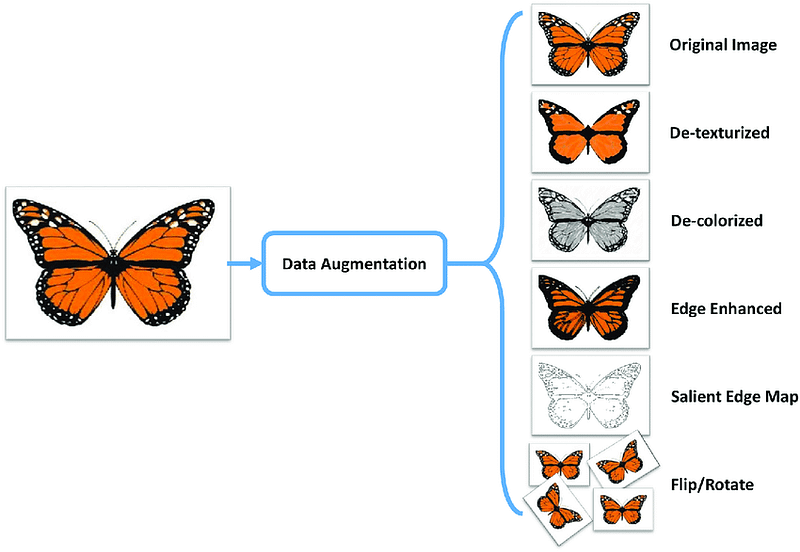

Data augmentation is a technique used to artificially increase the size of a dataset by applying various transformations to the existing data.
Some common data augmentation techniques include:
- Width and Height Shifts: This technique randomly shifts the position of an image horizontally and vertically within a specified range.
- Brightness: This technique adjusts the brightness of an image by a random factor within a specified range.
- Shear Transformation: This technique applies a random shear transformation to an image, which can change the angle of an object in the image.
- Zoom: This technique randomly zooms in or out on an image within a specified range.
- Channel Shift: This technique randomly changes the color channels of an image, such as shifting the value of the red channel by a random amount.
- Flips: This technique randomly flips an image horizontally or vertically.
When working with large datasets, it is important to have efficient ways of loading, processing, and managing the data. Some common techniques include:
- Load data: You can use libraries like Pandas or NumPy to load large datasets into memory and store them in a DataFrame or an array.
- Aggregation: You can use libraries like Pandas or NumPy to group data by certain columns and calculate aggregate statistics such as mean, median, or count.
- Filtering: You can use libraries like Pandas or NumPy to filter data by certain conditions and select only the rows that meet those conditions.
- Evaluating expressions: You can use libraries like Pandas or NumPy to evaluate expressions on the data and create new columns or update existing columns.
- Selection: You can use libraries like Pandas or NumPy to select specific columns or rows from the data for further processing.

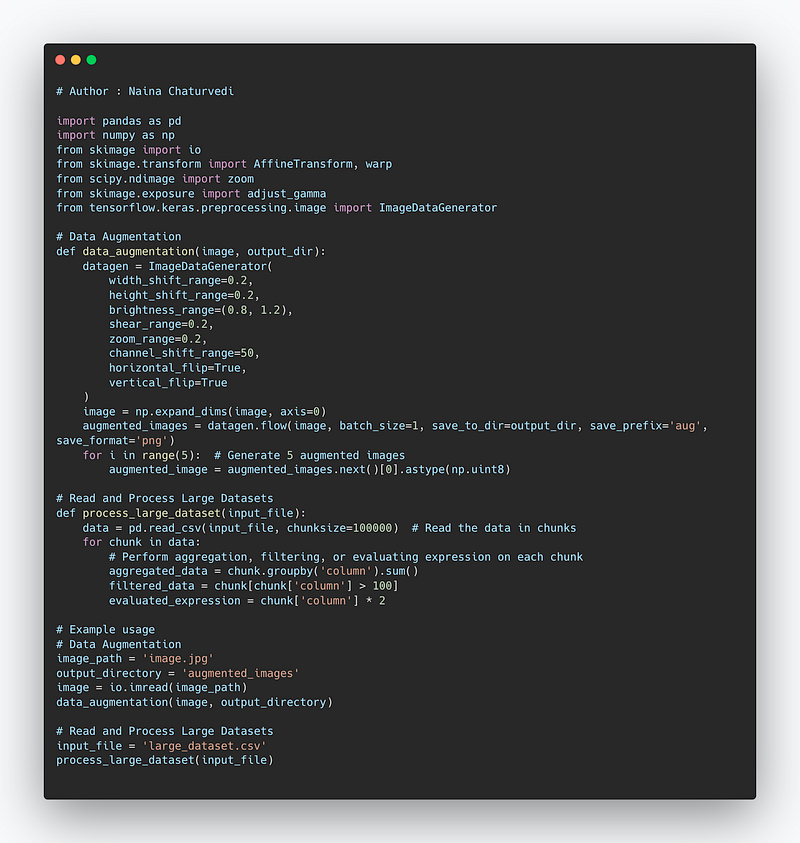

Complete code —
import pandas as pd
import numpy as np
from skimage import io
from skimage.transform import AffineTransform, warp
from scipy.ndimage import zoom
from skimage.exposure import adjust_gamma
from tensorflow.keras.preprocessing.image import ImageDataGenerator
# Data Augmentation
def data_augmentation(image, output_dir):
datagen = ImageDataGenerator(
width_shift_range=0.2,
height_shift_range=0.2,
brightness_range=(0.8, 1.2),
shear_range=0.2,
zoom_range=0.2,
channel_shift_range=50,
horizontal_flip=True,
vertical_flip=True
)
image = np.expand_dims(image, axis=0)
augmented_images = datagen.flow(image, batch_size=1, save_to_dir=output_dir, save_prefix='aug', save_format='png')
for i in range(5): # Generate 5 augmented images
augmented_image = augmented_images.next()[0].astype(np.uint8)
# Read and Process Large Datasets
def process_large_dataset(input_file):
data = pd.read_csv(input_file, chunksize=100000) # Read the data in chunks
for chunk in data:
# Perform aggregation, filtering, or evaluating expression on each chunk
aggregated_data = chunk.groupby('column').sum()
filtered_data = chunk[chunk['column'] > 100]
evaluated_expression = chunk['column'] * 2
# Example usage
# Data Augmentation
image_path = 'image.jpg'
output_directory = 'augmented_images'
image = io.imread(image_path)
data_augmentation(image, output_directory)
# Read and Process Large Datasets
input_file = 'large_dataset.csv'
process_large_dataset(input_file)Snippet —
Data augmentation
It’s the technique of increasing the amount and diversity of your training set by applying random transformations.
Width and Height Shifts —
generator = tf.keras.preprocessing.image.ImageDataGenerator(
width_shift_range=[-90,-40,0,40,90],
height_shift_range=[-40,0,40]
)
x, y = next(generator.flow_from_directory('images', batch_size=1))
plt.imshow(x[0].astype('uint8'));Brightness —
generator = tf.keras.preprocessing.image.ImageDataGenerator(
brightness_range=(0.8,4.2)
)x, y = next(generator.flow_from_directory('images', batch_size=1))
plt.imshow(x[0].astype('uint8'));Shear Transformation —
generator = tf.keras.preprocessing.image.ImageDataGenerator(
shear_range=46
)x, y = next(generator.flow_from_directory('images', batch_size=1))
plt.imshow(x[0].astype('uint8'));Zoom —
generator = tf.keras.preprocessing.image.ImageDataGenerator(
zoom_range=[0.2,3.0]
)x, y = next(generator.flow_from_directory('images', batch_size=1))
plt.imshow(x[0].astype('uint8'));Channel Shift —
generator = tf.keras.preprocessing.image.ImageDataGenerator(
channel_shift_range=180
)x, y = next(generator.flow_from_directory('images', batch_size=1))
plt.imshow(x[0].astype('uint8'));Flips —
generator = tf.keras.preprocessing.image.ImageDataGenerator(
horizontal_flip=True,
vertical_flip=True
)x, y = next(generator.flow_from_directory('images', batch_size=1))
plt.imshow(x[0].astype('uint8'));Read and Process Large Datasets
Vaex is a high-performance open source python library for lazy out-of-core dataframes which lets you perform the visualization, exploration, analysis, ML on tabular datasets using techniques such as efficient out-of-core algorithms, memory mapping and lazy evaluations. One can go over a billion rows and perform different statistical functions, aggregations and build impressive plots within few seconds.
Vaex does not read any data when you open a memory mapped file, instead it only reads the file metadata, such as number of rows, number of columns, column names, data types, file structure, location of the data on the disk, file description etc. It goes through the entire dataset only when its required to do so with just few passes over the dataset.
Why to use Vaex :
- Memory efficient: It doesn’t create any memory copy while filtering/selections operations
- Lazy / Virtual columns: Without wasting the RAM, Vaex computes on the fly
- Performance: Vaex is used to process huge tabular data i.e it processes >¹⁰⁹ rows/second
- Visualization : Using Vaex data visualization can be done with just one-line of code.

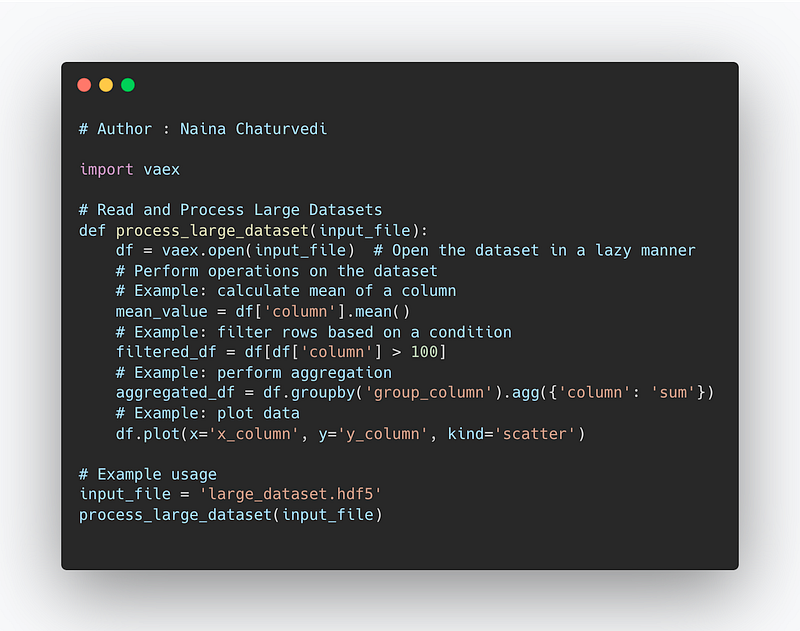

Complete Code —
import vaex
# Read and Process Large Datasets
def process_large_dataset(input_file):
df = vaex.open(input_file) # Open the dataset in a lazy manner
# Perform operations on the dataset
# Example: calculate mean of a column
mean_value = df['column'].mean()
# Example: filter rows based on a condition
filtered_df = df[df['column'] > 100]
# Example: perform aggregation
aggregated_df = df.groupby('group_column').agg({'column': 'sum'})
# Example: plot data
df.plot(x='x_column', y='y_column', kind='scatter')
# Example usage
input_file = 'large_dataset.hdf5'
process_large_dataset(input_file)Snippet —
We will see Vaex in action now.
1. If you haven’t installed Vaex then use below command to install it
pip install vaex
2. Once done, restart your kernal. Next import all the necessary libraries —
import vaex
import pandas as pd3. Load data using Vaex
We will using dataset — Chicago Taxi Trips
df=vaex.open('/your_file_path/chicago_taxi_trips_2016_01.csv')Output — the data gets loaded in total 5.79 s

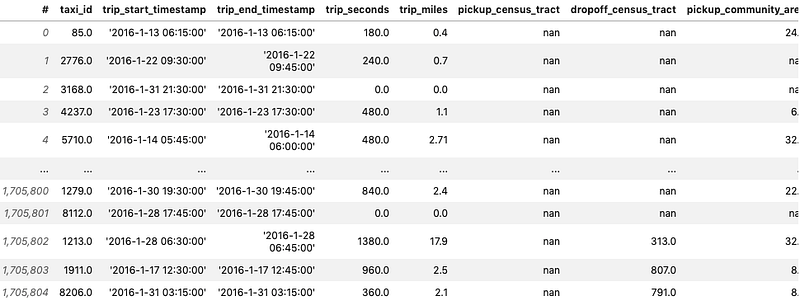

4. See the loaded data and stats
%%time
dfOutput —
CPU times: user 3 µs, sys: 0 ns, total: 3 µs
Wall time: 7.63 µs
type(df)Output —
vaex.dataframe.DataFrameLocal# Get a high level overview of the DataFrame%%time

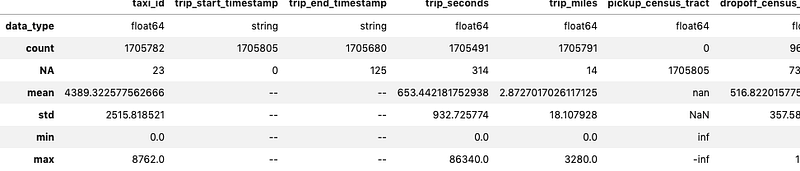

df.describe()This is done with a single pass over the data
Output —
CPU times: user 1.83 s, sys: 37.8 ms, total: 1.87 s
Wall time: 970 ms
%%time

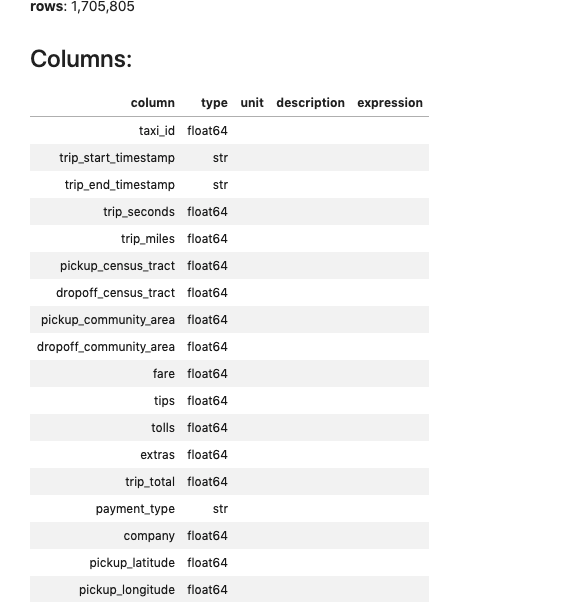

df.info()Output —
CPU times: user 15 ms, sys: 4.9 ms, total: 19.9 ms
Wall time: 18.2 ms
%%time
df['payment_type'].value_counts()Output —
CPU times: user 264 ms, sys: 8.24 ms, total: 272 ms
Wall time: 163 msCash 912334
Credit Card 781271
No Charge 7555
Unknown 3139
Dispute 845
Pcard 437
Prcard 224
dtype: int645. Aggregation, Filtering, evaluating expression and selection
Vaex performs parallelized, highly performant groupby operations
%%time
df_group=df.groupby(df.payment_type,agg='count')
df_groupOutput —
total: 542 ms
Wall time: 330 ms
In Vaex, filtering, evaluating expressions and selection will not waste memory by making copies.
%%timeit

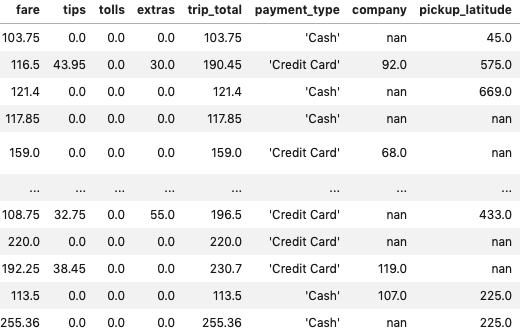

df[df.fare>100]Output —
1.47 ms ± 70.2 µs per loop (mean ± std. dev. of 7 runs, 100 loops each)

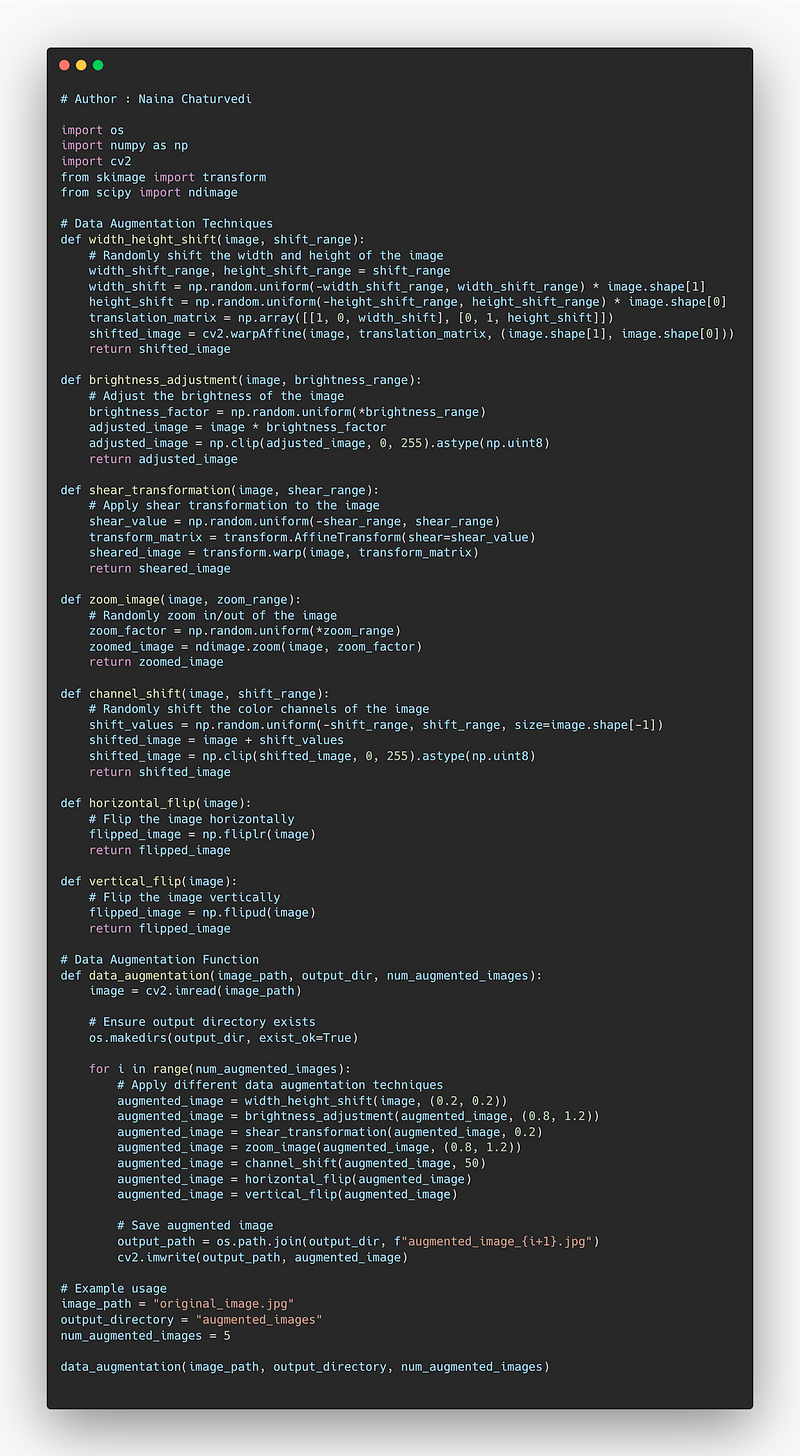

Complete Code Implementation —
import os
import numpy as np
import cv2
from skimage import transform
from scipy import ndimage
# Data Augmentation Techniques
def width_height_shift(image, shift_range):
# Randomly shift the width and height of the image
width_shift_range, height_shift_range = shift_range
width_shift = np.random.uniform(-width_shift_range, width_shift_range) * image.shape[1]
height_shift = np.random.uniform(-height_shift_range, height_shift_range) * image.shape[0]
translation_matrix = np.array([[1, 0, width_shift], [0, 1, height_shift]])
shifted_image = cv2.warpAffine(image, translation_matrix, (image.shape[1], image.shape[0]))
return shifted_image
def brightness_adjustment(image, brightness_range):
# Adjust the brightness of the image
brightness_factor = np.random.uniform(*brightness_range)
adjusted_image = image * brightness_factor
adjusted_image = np.clip(adjusted_image, 0, 255).astype(np.uint8)
return adjusted_image
def shear_transformation(image, shear_range):
# Apply shear transformation to the image
shear_value = np.random.uniform(-shear_range, shear_range)
transform_matrix = transform.AffineTransform(shear=shear_value)
sheared_image = transform.warp(image, transform_matrix)
return sheared_image
def zoom_image(image, zoom_range):
# Randomly zoom in/out of the image
zoom_factor = np.random.uniform(*zoom_range)
zoomed_image = ndimage.zoom(image, zoom_factor)
return zoomed_image
def channel_shift(image, shift_range):
# Randomly shift the color channels of the image
shift_values = np.random.uniform(-shift_range, shift_range, size=image.shape[-1])
shifted_image = image + shift_values
shifted_image = np.clip(shifted_image, 0, 255).astype(np.uint8)
return shifted_image
def horizontal_flip(image):
# Flip the image horizontally
flipped_image = np.fliplr(image)
return flipped_image
def vertical_flip(image):
# Flip the image vertically
flipped_image = np.flipud(image)
return flipped_image
# Data Augmentation Function
def data_augmentation(image_path, output_dir, num_augmented_images):
image = cv2.imread(image_path)
# Ensure output directory exists
os.makedirs(output_dir, exist_ok=True)
for i in range(num_augmented_images):
# Apply different data augmentation techniques
augmented_image = width_height_shift(image, (0.2, 0.2))
augmented_image = brightness_adjustment(augmented_image, (0.8, 1.2))
augmented_image = shear_transformation(augmented_image, 0.2)
augmented_image = zoom_image(augmented_image, (0.8, 1.2))
augmented_image = channel_shift(augmented_image, 50)
augmented_image = horizontal_flip(augmented_image)
augmented_image = vertical_flip(augmented_image)
# Save augmented image
output_path = os.path.join(output_dir, f"augmented_image_{i+1}.jpg")
cv2.imwrite(output_path, augmented_image)
# Example usage
image_path = "original_image.jpg"
output_directory = "augmented_images"
num_augmented_images = 5
data_augmentation(image_path, output_directory, num_augmented_images)Snippet —
That’s it for now.
Find Day 18 Below —
Let me know if you have questions in the comment section below. Subscribe/ Follow, Like/Clap as it would encourage me to write more in my free time
Stay Tuned!!
