Blazor Server Project #18: How to Configure Twitter Authentication

A practical guide to integrating Twitter Sign-In into your web app, allowing users to log in using their Twitter account.

Table of Contents

▸ Overview ▸ Create the app in Twitter ▸ Install Twitter Authentication Middleware ▸ Store the Twitter Client ID and Secret ▸ Configure Twitter Authentication ▸ Modify the Login and Register Page ▸ Sign in with Twitter ▸ Summary ▸ References

This article is the eighteenth in a series covering the Blazor Server Project: (1) How to create a CRUD operation using Dapper (2) Building a dropdown list involves a 1:N relationship (3) How to implement a checkbox list involving an M:N relationships (4) Understanding URL routing and navigation (5) Creating and using page layout (6) How to create a reusable modal dialog component (7) Practical guide to making a master-detail page (8) Master-detail page using dynamic query (9) How to avoid SQL injection attacks (10) Hiding/showing HTML elements (11) Migrate to ASP.NET Core 6.0 (12) Installing ASP.NET Core Identity (13) Integrating Identity tables into the existing project database (14) Authentication and authorization (15) Role-based authorization (16) How to implement Google Authentication (17) Facebook Authentication and Authorization (18) How to configure Twitter Authentication (19) How to Customize Password Policy (20) Account Lockout Policy

These articles are for anyone who wants to learn how to build Blazor Server applications in a practical approach through some sample projects. It will be straightforward if you have some experience with C#, HTML, CSS, and SQL.

Overview

In the previous article, Blazor Server Project #16, we implemented authentication using Google OAuth 2.0; in Blazor Server Project #17, we discussed enabling users to sign in with their Facebook account. For now, we cover how to apply authentication by integrating Twitter Sign-In into your web app so users can log in using their Twitter accounts. The steps are: ▸ Create the app in Twitter ▸ Install Twitter Authentication Middleware ▸ Store the Twitter consumer API key and secret ▸ Configure Twitter Authentication ▸ Sign in with Twitter

Create the app in Twitter

• Go to the Twitter developer portal Dashboard to sign in using your Twitter account. If you don't already have one, please sign up now. Next, do the following similar screenshots in Figures 1 to 13.

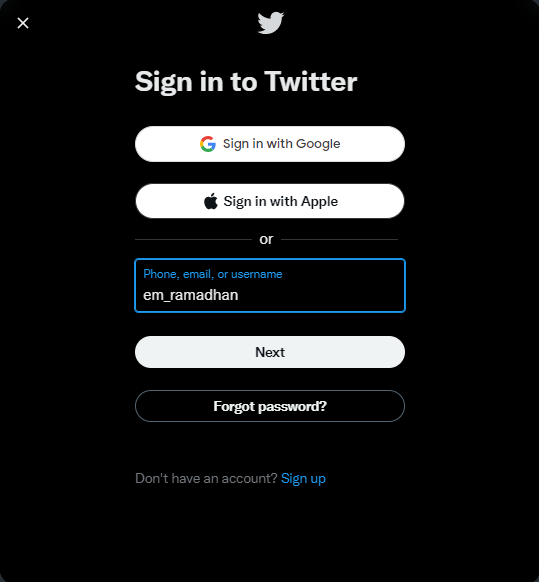

• You can sign in with your Google or Apple account, phone, email, or username.

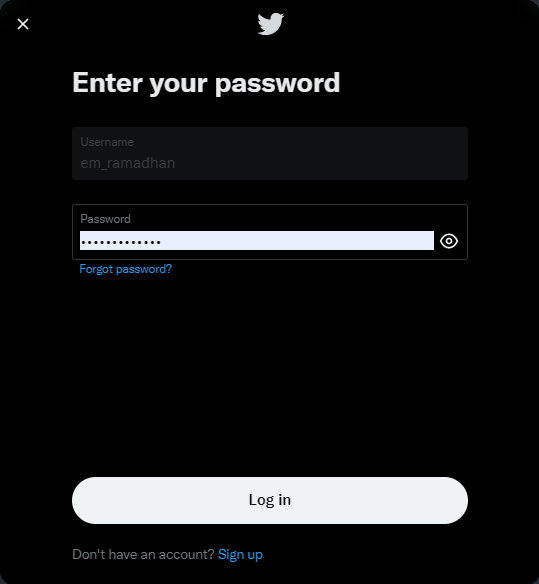

• Enter your password and log in.

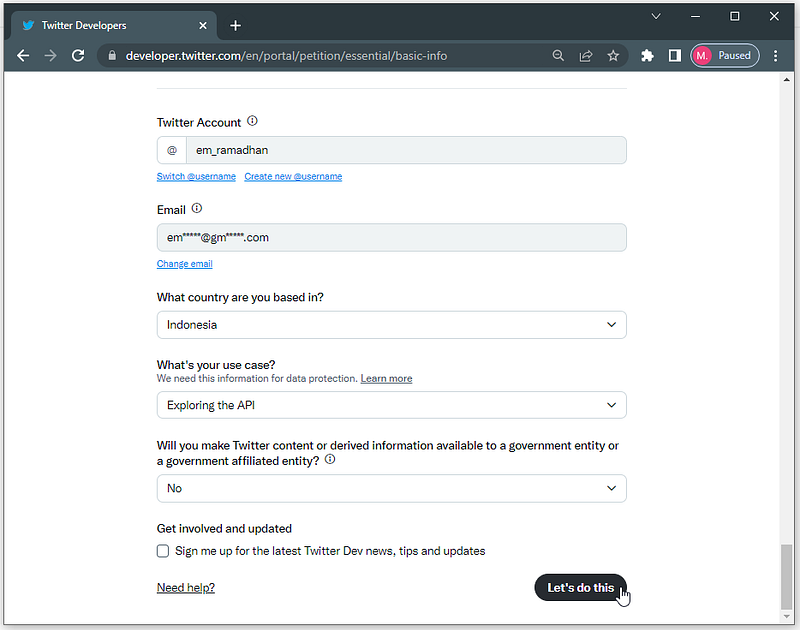

• Fill out the required fields and click the Let's do this button.

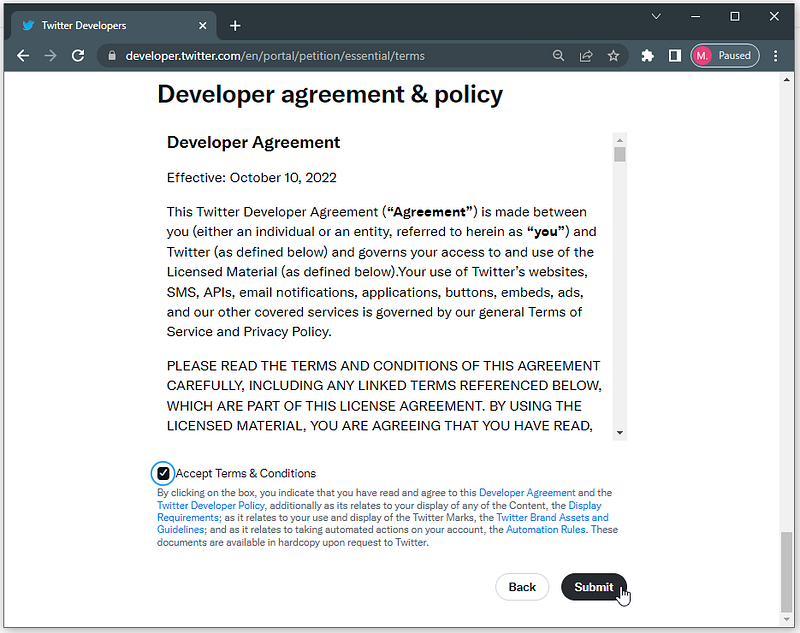

• Check the Accept Terms & Conditions checkbox and click the Submit button.

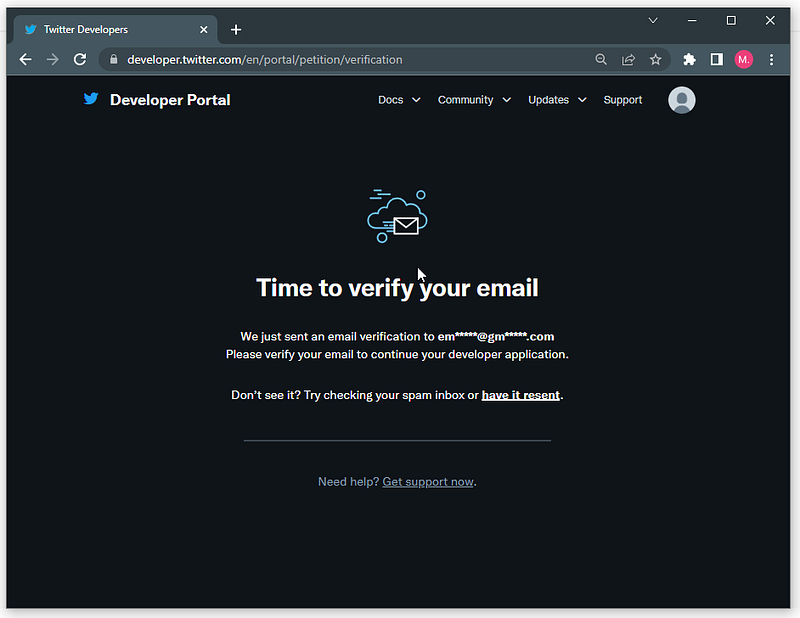

• Twitter will send an email verification.

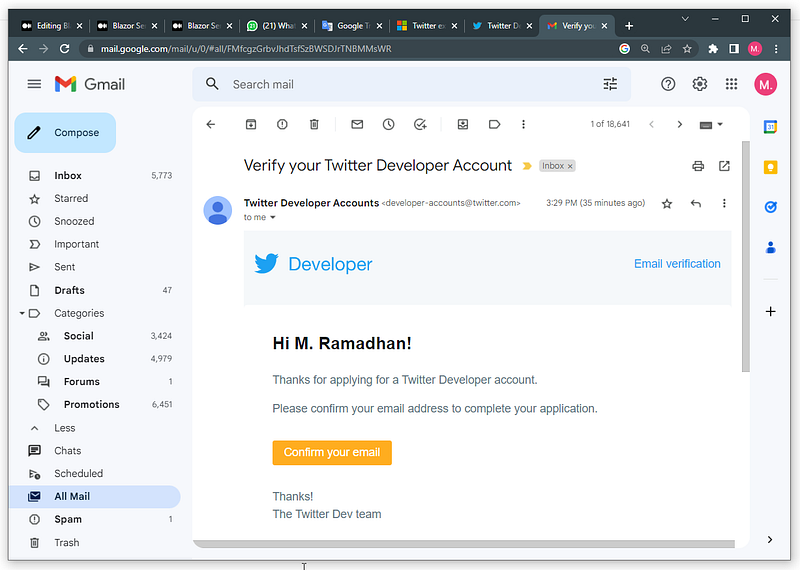

• Open your email to verify.

• Click the Confirm your email button.

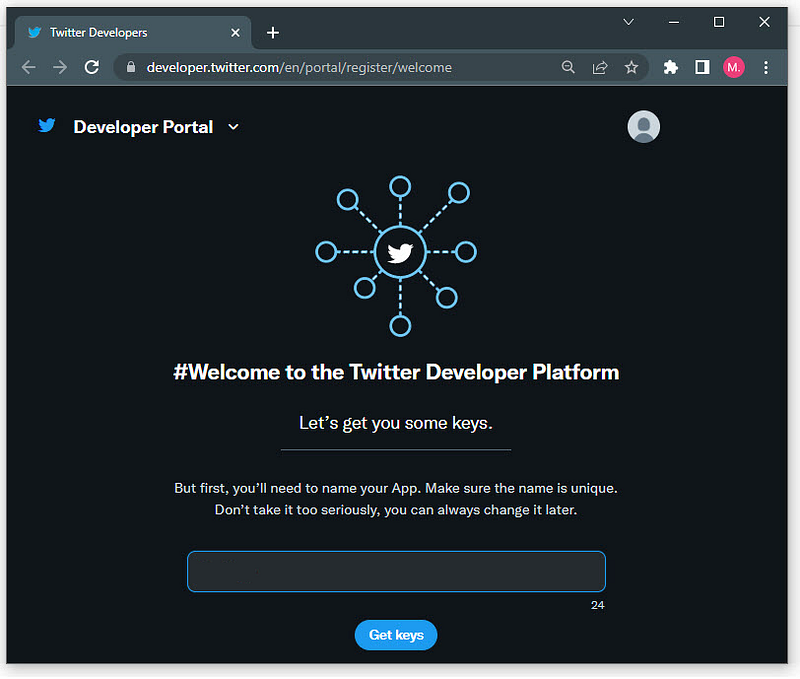

• Enter the app name. Take it easy; you can always change it later.
• Click the Get keys button.

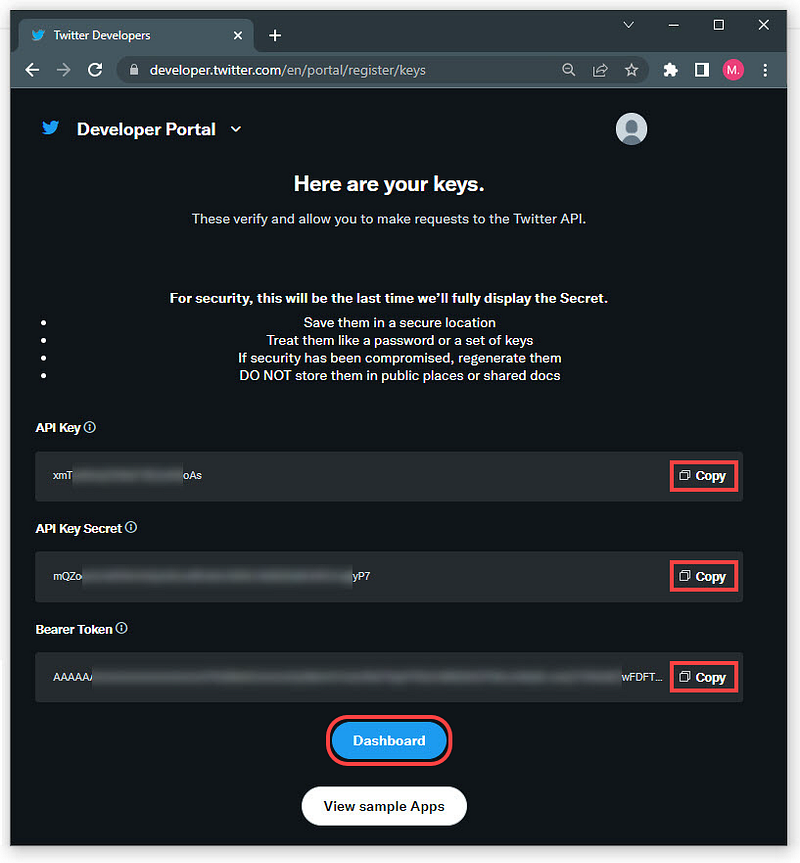

• Save the keys. Your keys should differ from mine in Figure 8 above.
• Click the Dashboard button

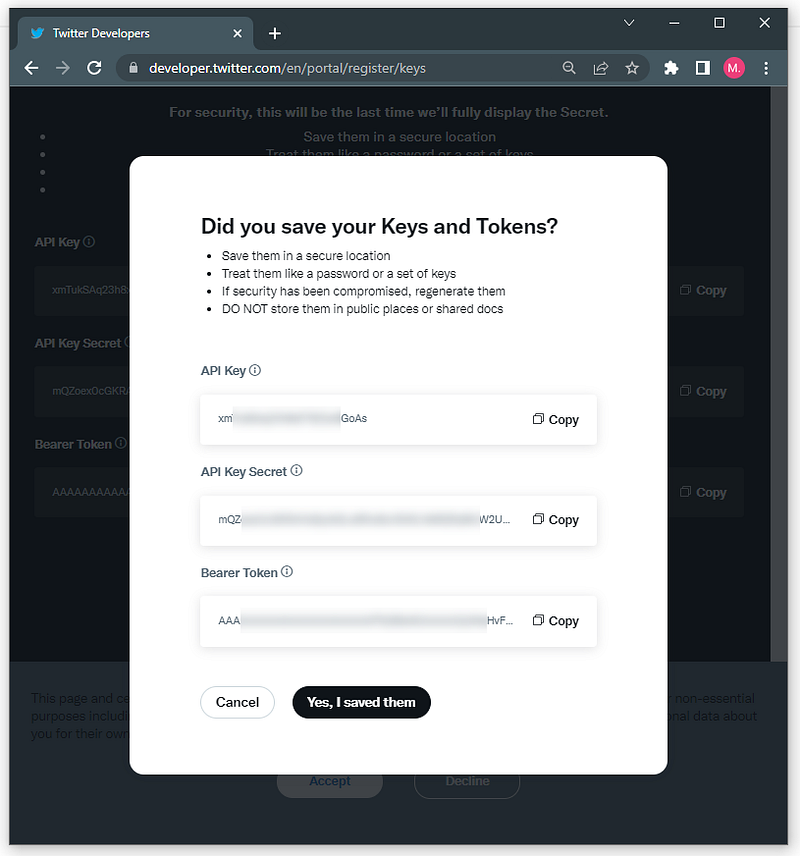

• If you have not saved the keys, save them now.
• Click the Yes, I saved them button.

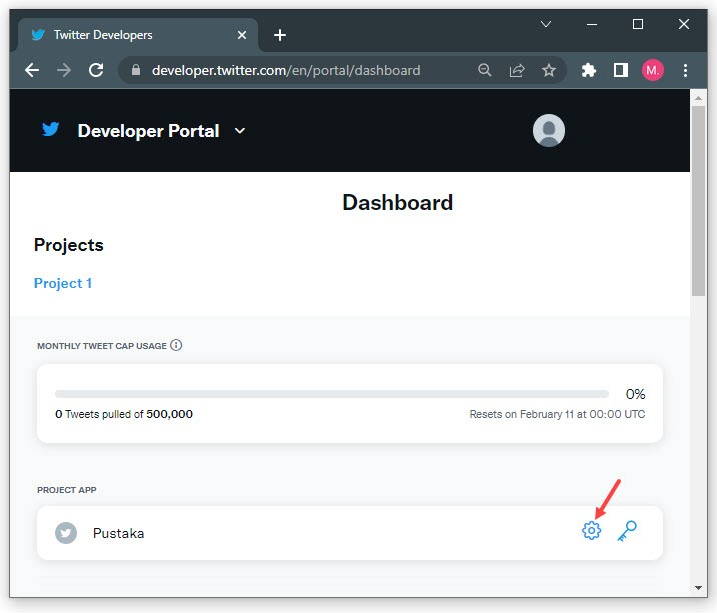

• Click the gear ⛭ (App settings) button.

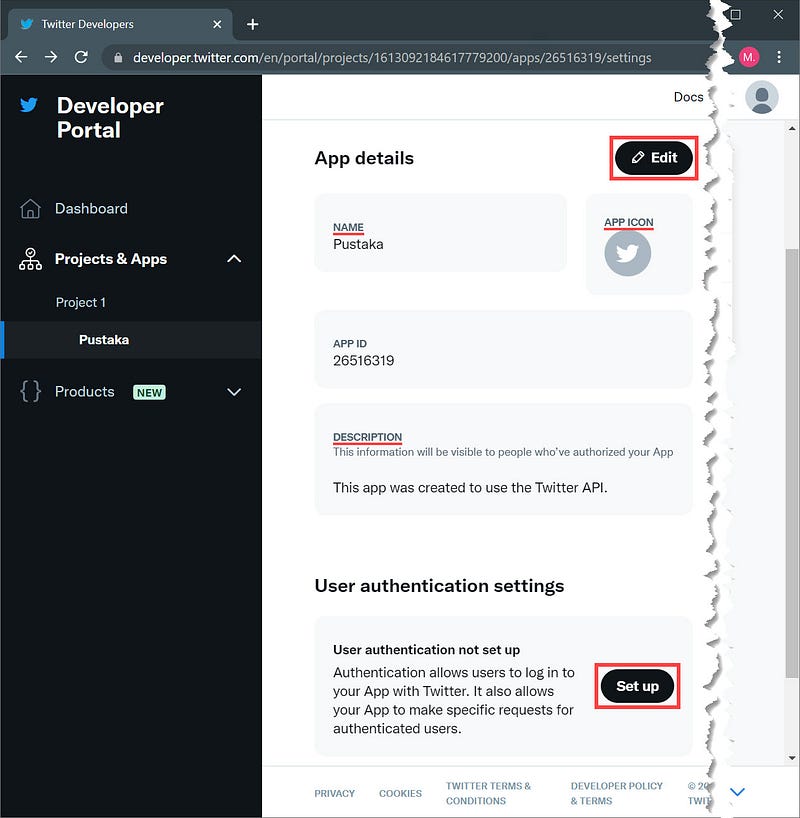

• You may click the Edit button to: - rename the app - upload the app icon - enter the description
• Click the Set up button to set the user authentication.

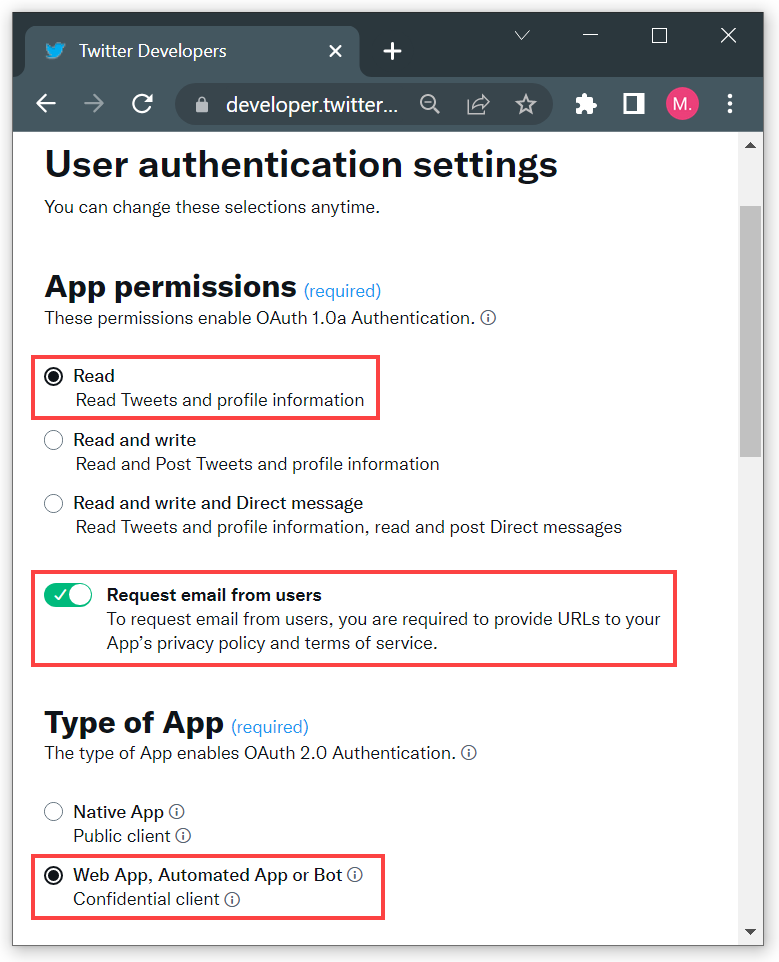

• Select Read and enable Request email from users in the App permissions section.
• Select WebApp, Automated App or Bot as the type of app.
• Scroll down.

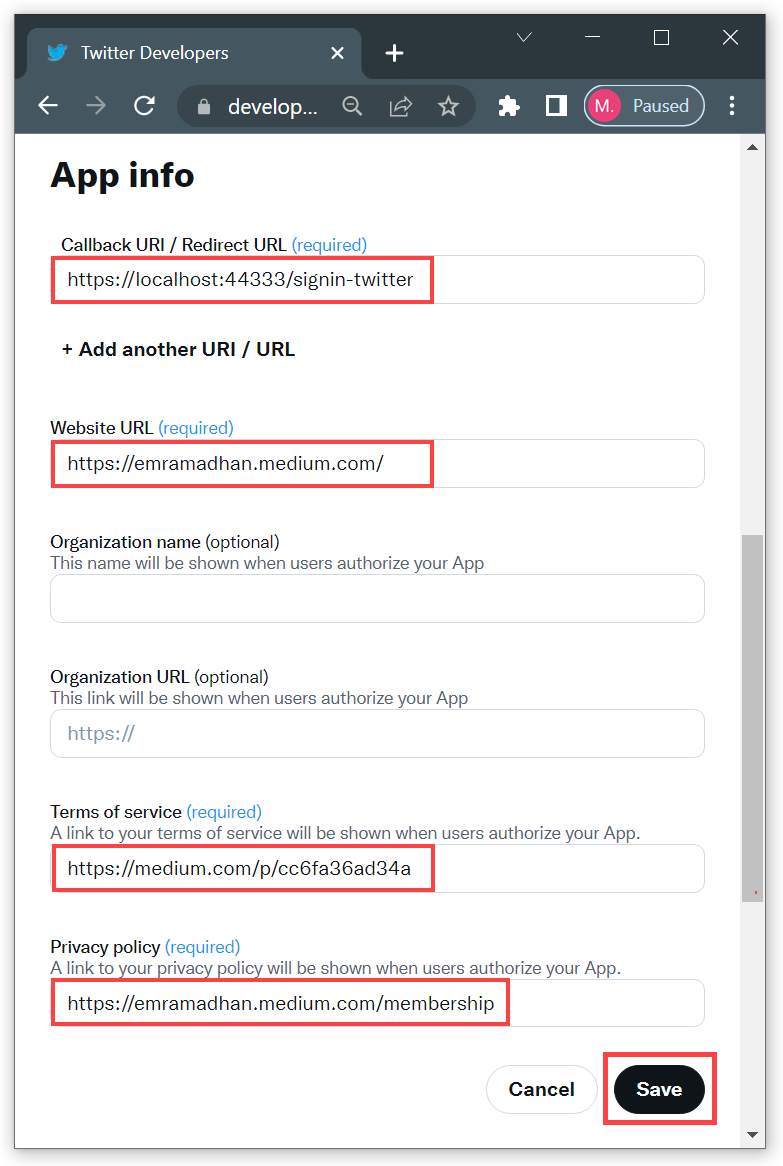

• Type https://localhost:44333/signin-twitter as Callback URI during development.
• Enter your Website URL.
• Enter links to your terms of service and privacy policy.
• Click the Save button.

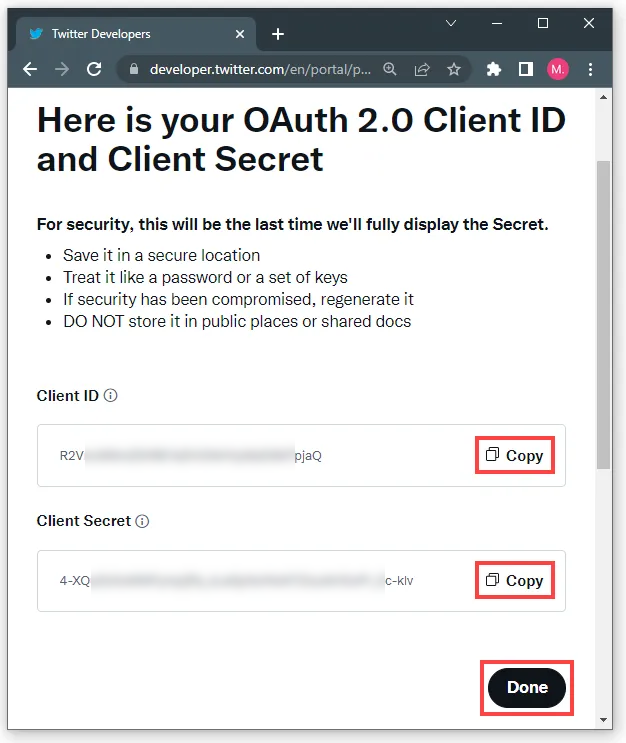

• Save the Client ID and secret. Your Client ID and secret should differ from mine in Figure 14 above.
• Click Done.

Install Twitter Authentication Middleware

You have to install Microsoft.AspNetCore.Authentication.Twitter NuGet package in the project.

This project is a continuation of the Blazor Server Project #17. If you don't have the project, you can download it via the link below.

• Open the project in Visual Studio 2022.

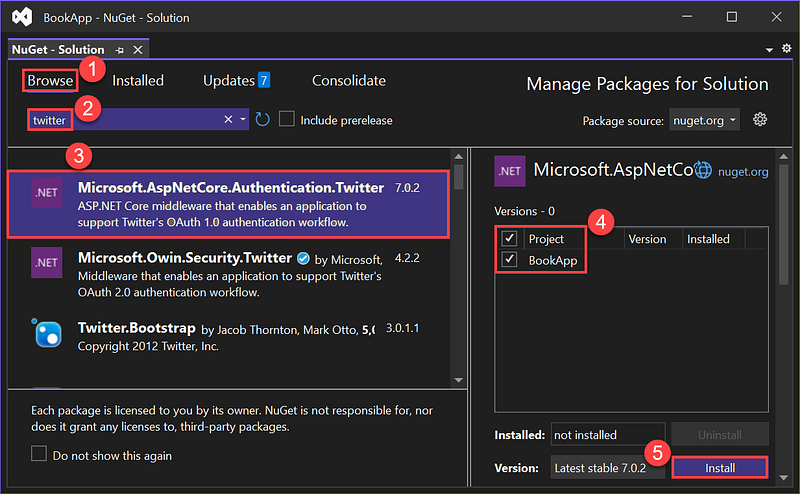

• Select Tools > NuGet Package Manager > Manage NuGet Packages Solution… from the menu, and the NuGet Solution dialog appears.

• Select Browse.
• Type twitter in the Search box
• Click Microsoft.AspNetCore.Authentication.Twitter from the package list, check checkboxes, and select Install.
• In the Preview Changes window, click OK to proceed with the installation and click I Accept to accept the license.

Store the Twitter Client ID and Secret

• Right-click the BookApp project in the Solution Explorer pane.
• From the context menu, click Manage User Secrets to open the secrets.json file.
• Please copy the following code and paste it into the file.

Listing 1 The contents of the secrets.json file

{
   "Authentication:Google:ClientId": "Your Google ClientId",
   "Authentication:Google:ClientSecret": "Your Google ClientSecret",
   "Authentication:Facebook:AppId": "Your Facebook AppId",
   "Authentication:Facebook:AppSecret": "Your Facebook AppSecret",
   "Authentication:Twitter:ConsumerAPIKey": "<API-key>",
   "Authentication:Twitter:ConsumerSecret": "<API-key-secret>"
}

• Replace <API-key> and <API-key-secret> with yours.
• Save the file. Visual Studio saves it in the file system path: %APPDATA%\Microsoft\UserSecrets\<user_secrets_id>\secrets.json

Configure Twitter Authentication

Add the following code into Startup.cs file to configure Twitter Authentication.

Listing 2 The contents of the modified Startup.cs file

...
   //Google Authentication service
   ...
   //Facebook Authentication service
   ...
   //Twitter Authentication service
   services.AddAuthentication().AddTwitter(twitterOptions =>
   {
      twitterOptions.ConsumerKey = Configuration["Authentication:Twitter:ConsumerAPIKey"];
      twitterOptions.ConsumerSecret = Configuration["Authentication:Twitter:ConsumerSecret"];
   });
...

The application uses the AddTwitter() method to read the ConsumerAPIKey and ConsumerSecret from the secrets.json file.

Modify the Login and Register Page

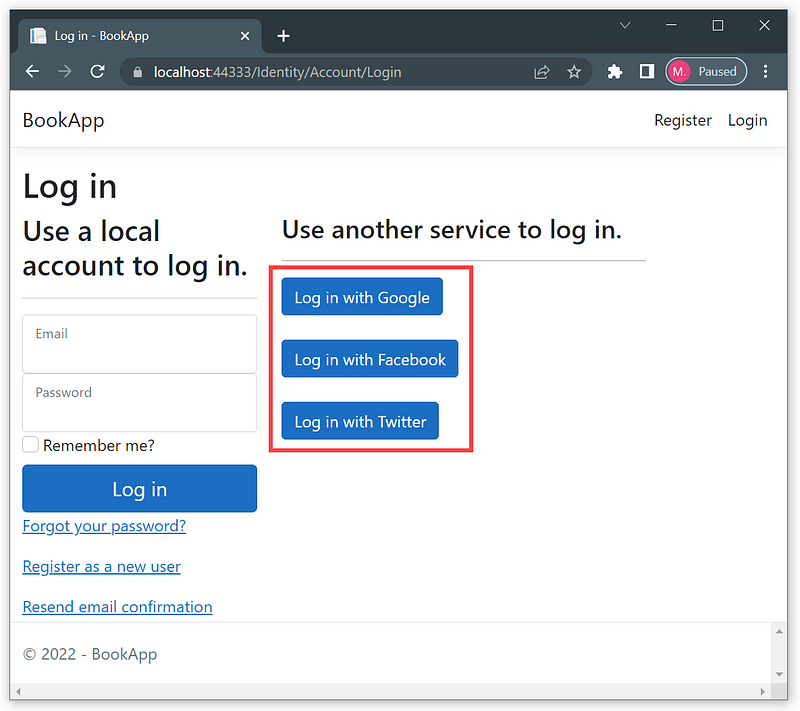

Modify the Login.cshtml file to make the Login button more readable, as shown in Figure 16.

Listing 3 The contents of the modified Login.cshtml file

...
   @foreach (var provider in Model.ExternalLogins)
   {
      <button type="submit"
         ...
         Log in with @provider.DisplayName
      </button>
      <br /><br />
   }
...

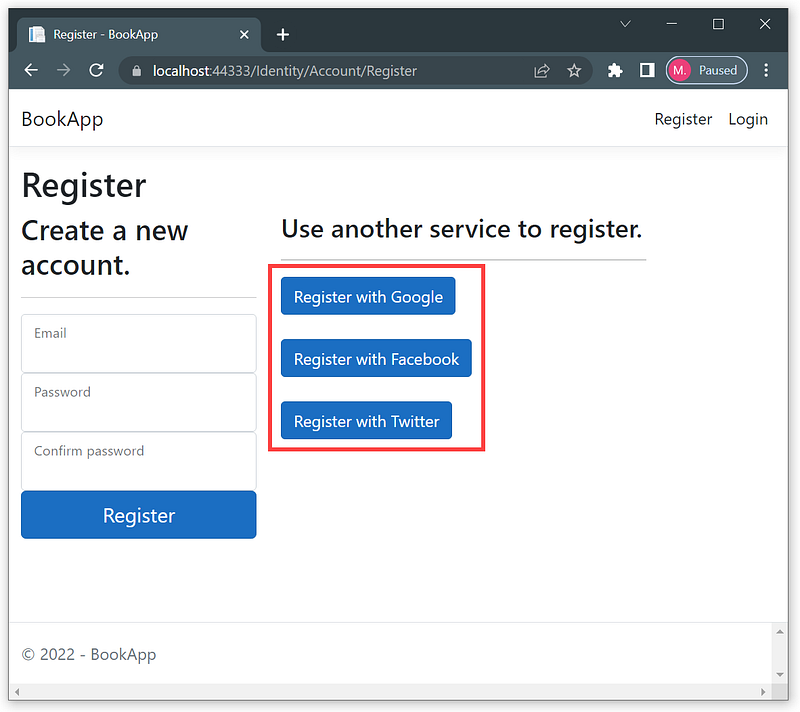

And so do Register.cshtml file.

Listing 4 The contents of the modified Register.cshtml file

...
   @foreach (var provider in Model.ExternalLogins)
   {
      <button type="submit"
         ...
         Register with @provider.DisplayName
      </button>
      <br /><br />
   }
...

Sign in with Twitter

For now, the app allows the following: ⦁ unregistered users ⦁ registered users with no role ⦁ registered users with one role or more to sign in using their Twitter account.

You can test authentication and authorization, like in the previous articles, Blazor Server Project #16 and Blazor Server Project #17.

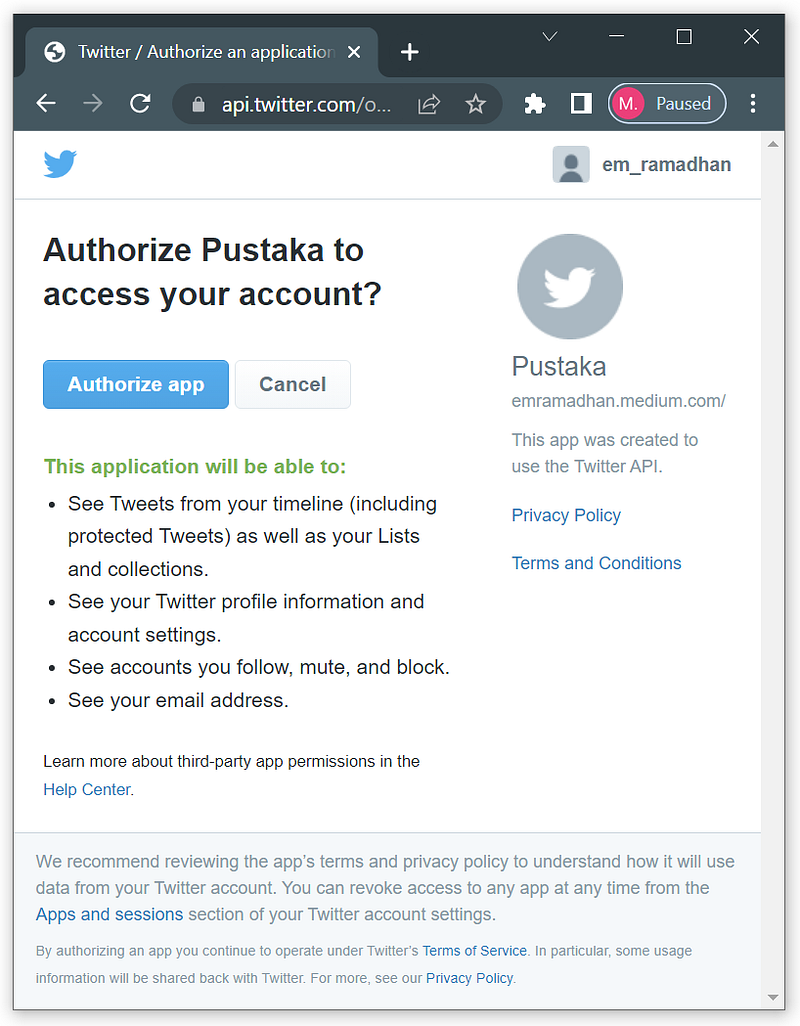

The following page appears when users try registering or logging in using their Twitter account.

• The user can click Authorize app to allow or Cancel to deny.

Summary

Like on Google and Facebook Authentication, by integrating Twitter Sign-In into your web app, any user — unregistered users, registered users with no role, one or more — can sign in using their Twitter accounts. Their authorization is compliant with the specifications in the app.

Hopefully beneficial. Your feedback will be precious.
