01 Episode #PySeries — Python — Python 4 Engineers — Exercises! An overview of the Opportunities Offered by Python in Engineering!

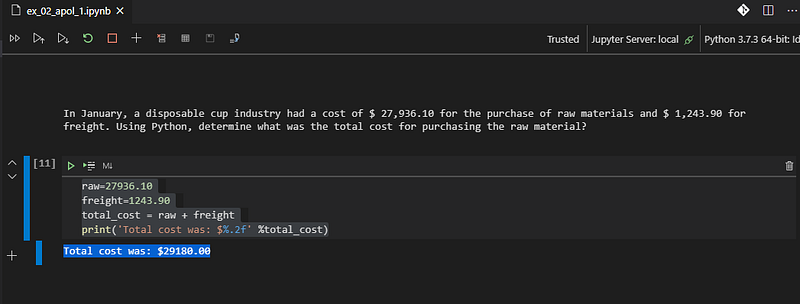

The Problem: In January, a disposable cup industry had a cost of $ 27,936.10 for the purchase of raw materials and $ 1,243.90 for freight.

Using Python, determine what was the total cost for purchasing the raw material?

raw=27936.10
freight=1243.90
total_cost = raw + freight
print('Total cost was: $%.2f' %total_cost)

Total cost was: $29180.00

The Problem: Using Python, find the roots of the function y = 2x^2 + 10x-4:

import numpy as np
c=[2,10,-4]
np.roots(c)

array([-5.37228132,  0.37228132])

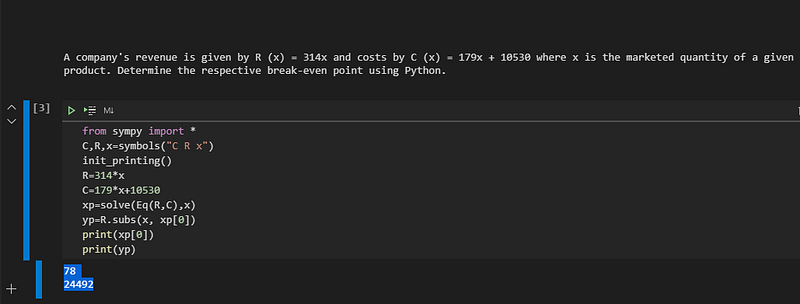

The Problem: A company's revenue is given by R (x) = 314x and costs by C (x) = 179x + 10530 where x is the marketed quantity of a given product.

Determine the respective break-even point using Python:

from sympy import *
C,R,x=symbols("C R x")
init_printing()
R=314*x
C=179*x+10530
xp=solve(Eq(R,C),x)
yp=R.subs(x, xp[0])
print(xp[0])
print(yp)

78
24492

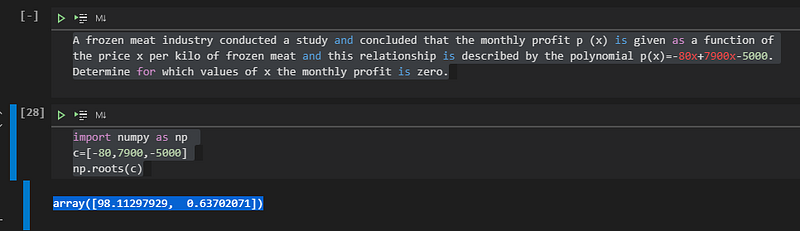

The Problem: A frozen meat industry conducted a study and concluded that the monthly profit p (x) is given as a function of the price x per kilo of frozen meat and this relationship is described by the polynomial p(x)=-80x+7900x-5000.

Determine for which values of x the monthly profit is zero:

import numpy as np
c=[-80,7900,-5000]
np.roots(c)

array([98.11297929,  0.63702071])

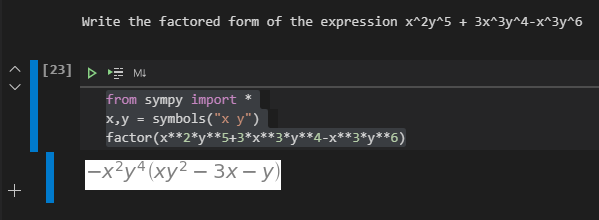

The Problem: Write the factored form of the expression x^2y^5 + 3x^3y^4-x^3y^6:

from sympy import *
x,y = symbols("x y")
factor(x**2*y**5+3*x**3*y**4-x**3*y**6)

-x^2y^4(xy^2-3x-y)

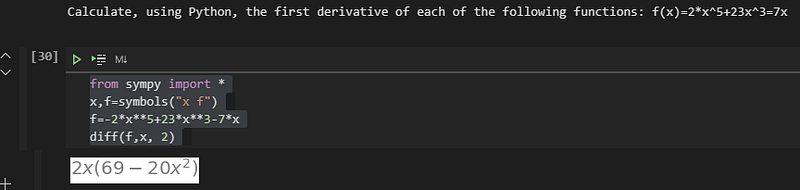

The Problem: Calculate, using Python, the first derivative of each of the following functions: f(x)=2*x^5+23x^3=7x:

from sympy import *
x,f=symbols("x f")
f=-2*x**5+23*x**3-7*x
diff(f,x, 2)

2x(69-20x^2)

The Problem: Given the vectors u = (7, 1, -9) and v = (3, -5, -4), calculate u.v and uXv:

import numpy as np
u=np.array([[7,1,-9]])
v=np.array([[3,-5,-4]])
uv=np.inner(u,v)
uXv=np.cross(u,v)
print(uv)
print(uXv)

[[52]]
[[-49   1 -38]]

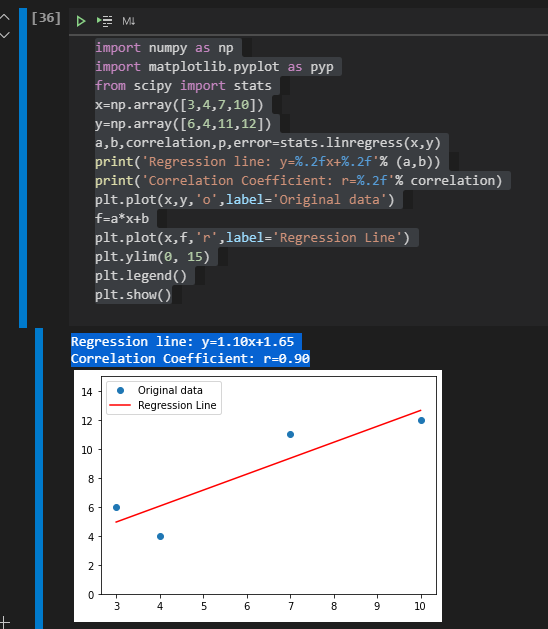

The Problem: Obtain the regression line, using python, that best fits these points: A(3,6), B(4,4), C(7,11) and D(10,12):

import numpy as np
import matplotlib.pyplot as pyp
from scipy import stats
x=np.array([3,4,7,10])
y=np.array([6,4,11,12])
a,b,correlation,p,error=stats.linregress(x,y)
print('Regression line: y=%.2fx+%.2f'% (a,b))
print('Correlation Coefficient: r=%.2f'% correlation)
plt.plot(x,y,'o',label='Original data')
f=a*x+b
plt.plot(x,f,'r',label='Regression Line')
plt.ylim(0, 15)
plt.legend()
plt.show()

Regression line: y=1.10x+1.65
Correlation Coefficient: r=0.90

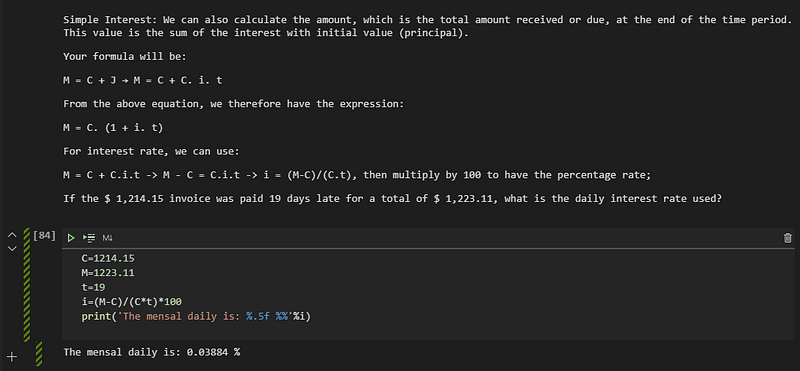

The Problem: Simple Interest: We can also calculate the amount, which is the total amount received or due, at the end of the time period. This value is the sum of the interest with initial value (principal).

Your formula will be:

M = C + J → M = C + C. i. t

From the above equation, we therefore have the expression:

M = C. (1 + i. t)

For interest rate, we can use:

M = C + C.i.t -> M - C = C.i.t -> i = (M-C)/(C.t), then multiply by 100 to have the percentage rate;

If the $ 1,214.15 invoice was paid 19 days late for a total of $ 1,223.11, what is the daily interest rate used?

C=1214.15
M=1223.11
t=19
i=(M-C)/(C*t)*100
print('The mensal daily is: %.5f %%'%i)

The mensal daily is: 0.03884 %

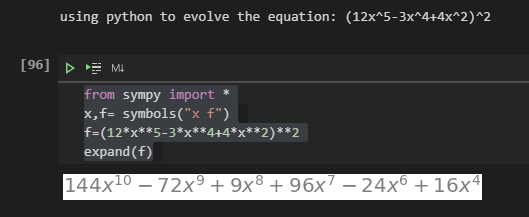

The Problem: Using Python to evolve the equation:
(12x^5-3x^4+4x^2)^2:

from sympy import *
x,f= symbols("x f")
f=(12*x**5-3*x**4+4*x**2)**2
expand(f)

144x^10-72x^9+x^8+96x^7-24x^6+16x^4

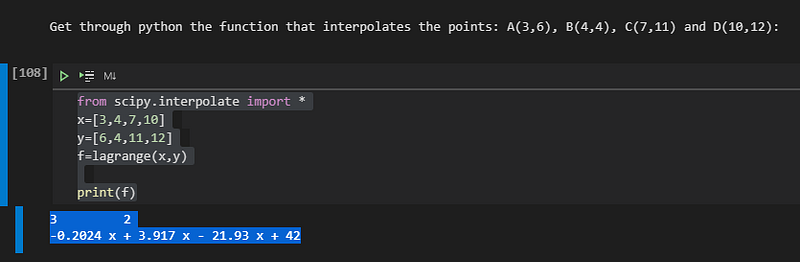

The Problem: Get through python the function that interpolates the points: A(3,6), B(4,4), C(7,11) and D(10,12):

from scipy.interpolate import *
x=[3,4,7,10]
y=[6,4,11,12]
f=lagrange(x,y)
print(f)

-0.2024 x^3 + 3.917 x^2 - 21.93 x + 42

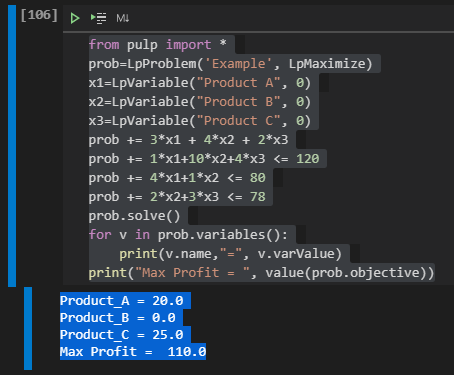

The Problem: Solve, using python, the linear programming problem:

Maxz = 3x1 + 4x2 + 2*x3

1x1+10x2+4*x3 <= 120

4x1+1x2 <= 80

2x2+3x3 <= 78

from pulp import *
prob=LpProblem('Example', LpMaximize)
x1=LpVariable("Product A", 0)
x2=LpVariable("Product B", 0)
x3=LpVariable("Product C", 0)
prob += 3*x1 + 4*x2 + 2*x3
prob += 1*x1+10*x2+4*x3 <= 120
prob += 4*x1+1*x2 <= 80
prob += 2*x2+3*x3 <= 78
prob.solve()
for v in prob.variables():
print(v.name,"=", v.varValue)
print("Max Profit = ", value(prob.objective))

Product_A = 20.0
Product_B = 0.0
Product_C = 25.0
Max Profit =  110.0

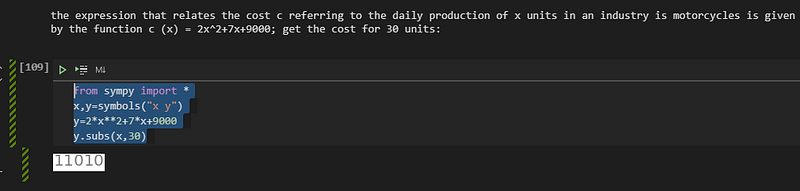

The Problem: the expression that relates the cost c referring to the daily production of x units in an industry of motorcycles is given by the function c (x) = 2x^2+7x+9000; get the cost for 30 units:

from sympy import *
x,y=symbols("x y")
y=2*x**2+7*x+9000
y.subs(x,30)

11010

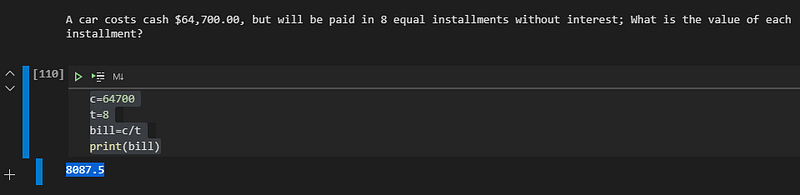

The Problem: A car costs cash $64,700.00, but will be paid in 8 equal installments without interest; What is the value of each installment?

c=64700
t=8
bill=c/t
print(bill)

8087.5

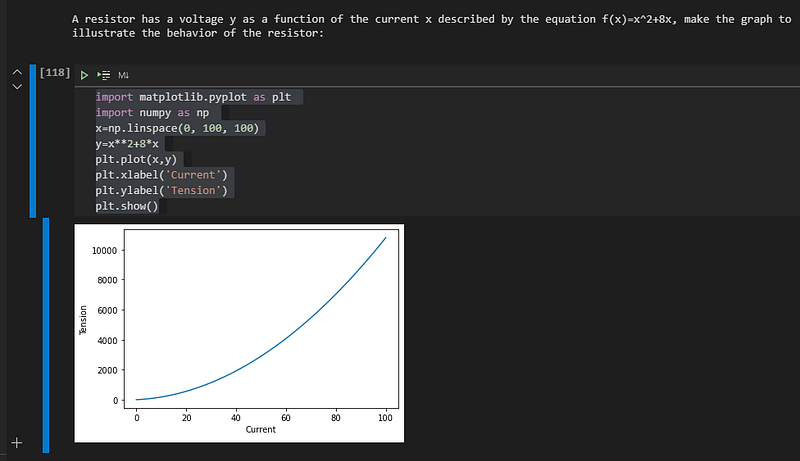

The Problem: A resistor has a voltage y as a function of the current x described by the equation f(x)=x^2+8x, make the graph to illustrate the behavior of the resistor:

import matplotlib.pyplot as plt
import numpy as np
x=np.linspace(0, 100, 100)
y=x**2+8*x
plt.plot(x,y)
plt.xlabel('Current')
plt.ylabel('Tension')
plt.show()

The Problem: Given the vectors u = (3, -2, 1) and v = (6, 5, -7), calculate u.v:

import numpy as np
u=np.array([[3,-2,1]])
v=np.array([[6,5,-7]])
uv=np.inner(u,v)
uXv=np.cross(u,v)
print(uv)

[[1]]

The Problem: The cost c for the daily production of x units of a certain product corresponds to c(x)=2x^2-40x+1000;

What is the level of production that minimizes the cost?

import numpy as np
c=[2,-40,1000]
np.roots(c)

array([10.+20.j, 10.-20.j])

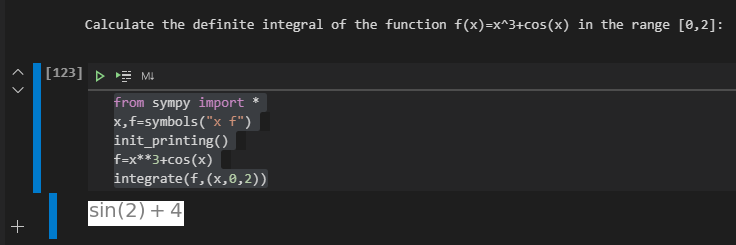

The Problem: Calculate the definite integral of the function f(x)=x^3+cos(x) in the range [0,2]:

from sympy import *
x,f=symbols("x f")
init_printing()
f=x**3+cos(x)
integrate(f,(x,0,2))

sin(2)+4

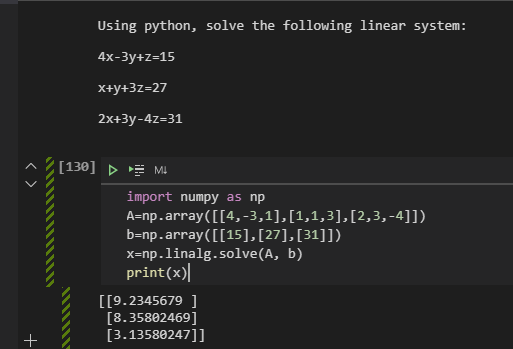

The Problem: Using python, solve the following linear system:

4x-3y+z=15

x+y+3z=27

2x+3y-4z=31

import numpy as np
A=np.array([[4,-3,1],[1,1,3],[2,3,-4]])
b=np.array([[15],[27],[31]])
x=np.linalg.solve(A, b)
print(x)

[[9.2345679 ]
[8.35802469]
[3.13580247]]

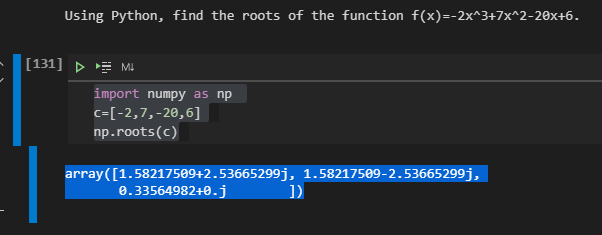

The Problem: Using Python, find the roots of the function f(x)=-2x^3+7x^2-20x+6.

import numpy as np
c=[-2,7,-20,6]
np.roots(c)

array([1.58217509+2.53665299j, 1.58217509-2.53665299j,
       0.33564982+0.j        ])

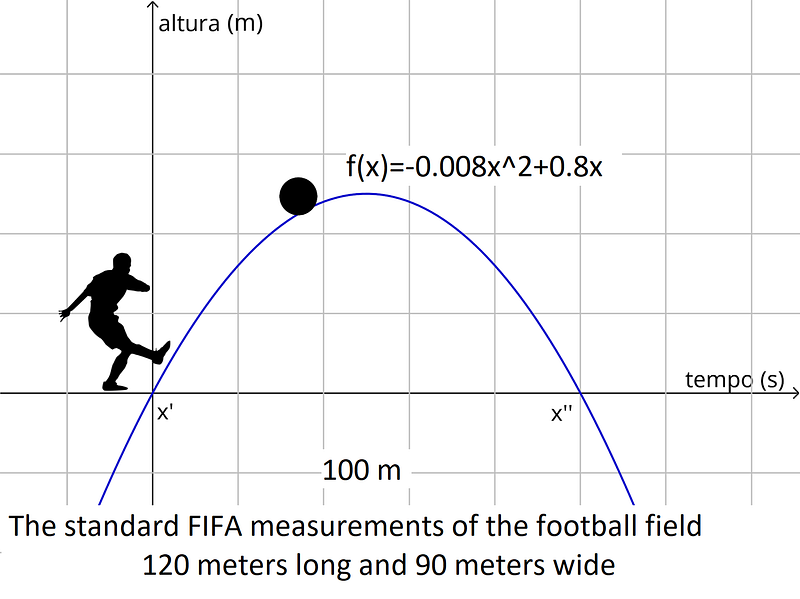

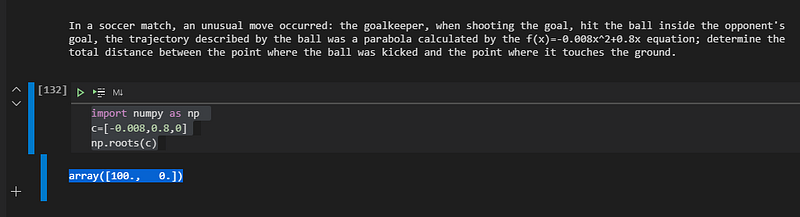

The Problem: In a soccer match, an unusual move occurred: the goalkeeper, when shooting the goal, hit the ball inside the opponent's goal, the trajectory described by the ball was a parabola calculated by the f(x)=-0.008x^2+0.8x equation;

Determine the total distance between the point where the ball was kicked and the point where it touches the ground:

import numpy as np
c=[-0.008,0.8,0]
np.roots(c)

array([100.,   0.])

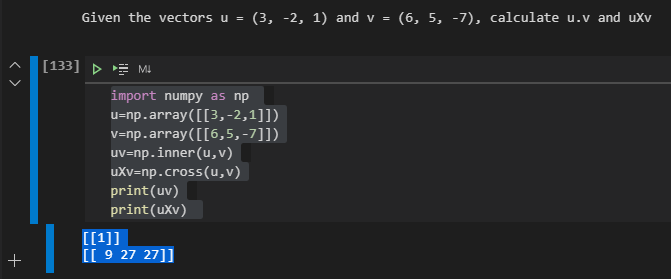

The Problem: Given the vectors u = (3, -2, 1) and v = (6, 5, -7), calculate u.v and uXv:

import numpy as np
u=np.array([[3,-2,1]])
v=np.array([[6,5,-7]])
uv=np.inner(u,v)
uXv=np.cross(u,v)
print(uv)
print(uXv)

[[1]]
[[ 9 27 27]]

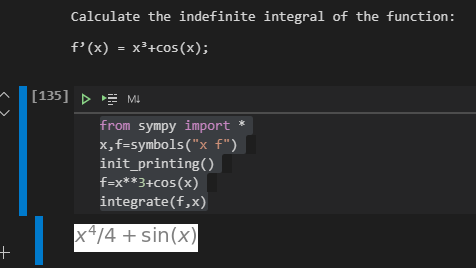

The Problem: Calculate the indefinite integral of the function:

f’(x) = x³+cos(x);

from sympy import *
x,f=symbols("x f")
init_printing()
f=x**3+cos(x)
integrate(f,x)

x^4/4+sin(x)

The Problem: A company not opting for the simple Brazilian national (Super Simples), pays 68.18% of tax on the salary of each monthly employee and the total monthly cost referring to the wages plus tax of 12 employees, who receive the same salary, corresponds to $ 137,236.64.

So what is the free salary for each of these employees?

salaries=137236.64
tax=1.6818
employees=12
salary=(salaries)/(tax*employees)
print('The salary of each employees is: $ %.2f' %salary)

The salary of each employees is: $ 6800.09

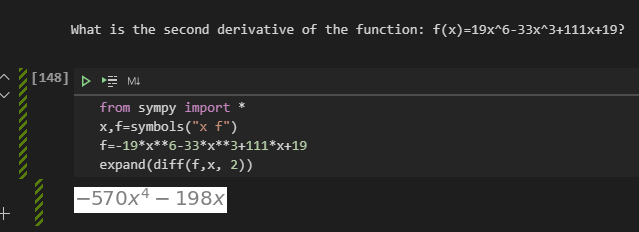

The Problem: What is the second derivative of the function: f(x)=19x^6-33x^3+111x+19?

from sympy import *
x,f=symbols("x f")
f=-19*x**6-33*x**3+111*x+19
expand(diff(f,x, 2))

-570x^4-198x

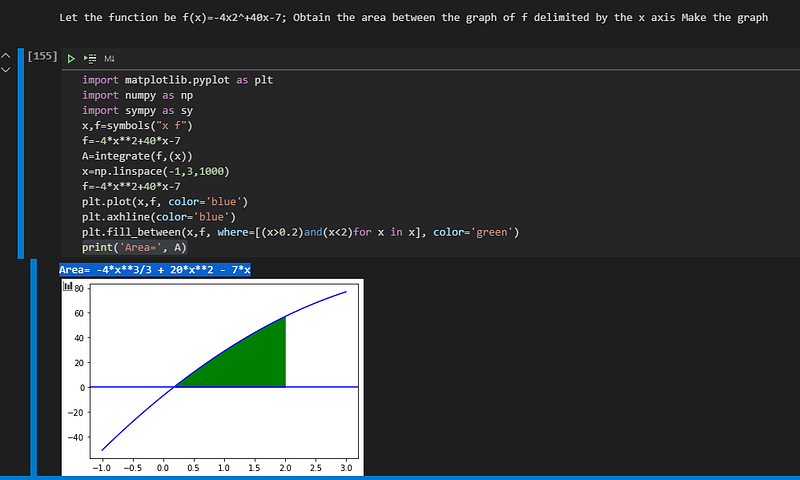

The Problem: Let the function be f(x)=-4x2^+40x-7;

Obtain the area between the graph of f delimited by the x axis Make the graph:

import matplotlib.pyplot as plt
import numpy as np
import sympy as sy
x,f=symbols("x f")
f=-4*x**2+40*x-7
A=integrate(f,(x))
x=np.linspace(-1,3,1000)
f=-4*x**2+40*x-7
plt.plot(x,f, color='blue')
plt.axhline(color='blue')
plt.fill_between(x,f, w
print('Area=', A)

Area= -4*x**3/3 + 20*x**2 - 7*x

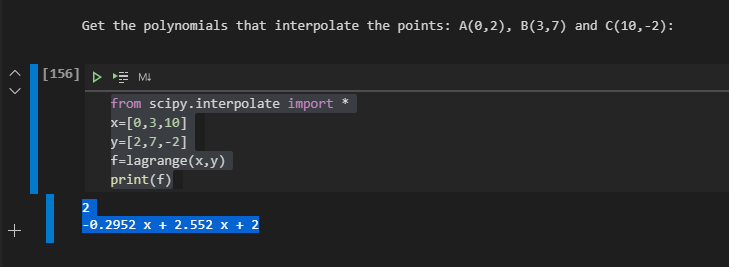

The Problem: Get the polynomials that interpolate the points: A(0,2), B(3,7) and C(10,-2):

from scipy.interpolate import *
x=[0,3,10]
y=[2,7,-2]
f=lagrange(x,y)
print(f)

-0.2952 x^2 + 2.552 x + 2

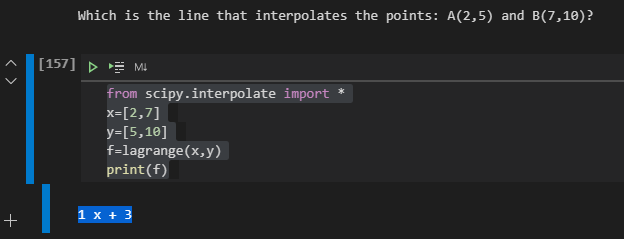

The Problem: Which is the line that interpolates the points: A(2,5) and B(7,10)?

from scipy.interpolate import *
x=[2,7]
y=[5,10]
f=lagrange(x,y)
print(f)

1 x + 3

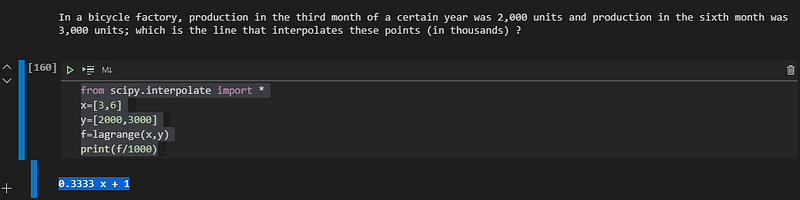

The Problem: In a bicycle factory, production in the third month of a certain year was 2,000 units and production in the sixth month was 3,000 units;

Which is the line that interpolates these points (in thousands) ?

from scipy.interpolate import *
x=[3,6]
y=[2000,3000]
f=lagrange(x,y)
print(f/1000)

0.3333 x + 1

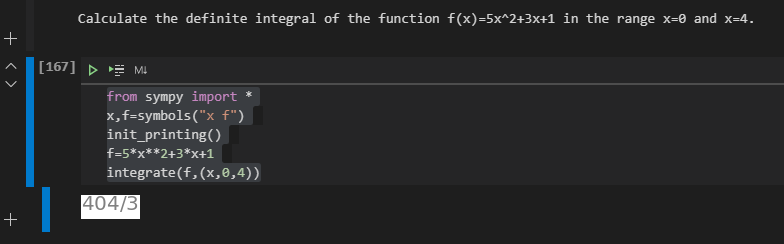

The Problem: Calculate the definite integral of the function f(x)=5x^2+3x+1 in the range x=0 and x=4:

from sympy import *
x,f=symbols("x f")
init_printing()
f=5*x**2+3*x+1
integrate(f,(x,0,4))

404/3
134.667

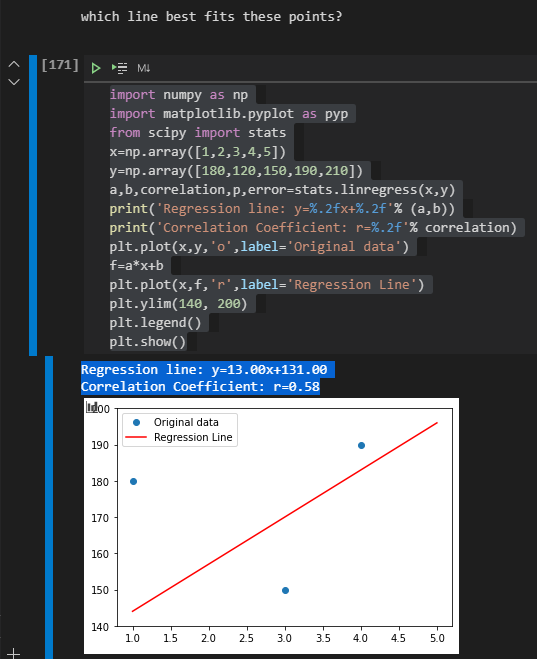

The Problem: The following table represents the sale of hospital equipment:

1-180

2-120

3-150

4-190

5-210

which line best line that fits these points?

import numpy as np
import matplotlib.pyplot as pyp
from scipy import stats
x=np.array([1,2,3,4,5])
y=np.array([180,120,150,190,210])
a,b,correlation,p,error=stats.linregress(x,y)
print('Regression line: y=%.2fx+%.2f'% (a,b))
print('Correlation Coefficient: r=%.2f'% correlation)
plt.plot(x,y,'o',label='Original data')
f=a*x+b
plt.plot(x,f,'r',label='Regression Line')
plt.ylim(140, 200)
plt.legend()
plt.show()

Regression line: y=13.00x+131.00
Correlation Coefficient: r=0.58

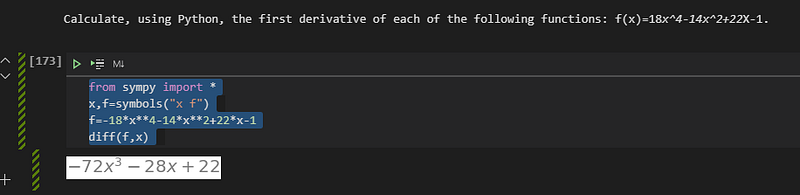

The Problem: Calculate, using Python, the first derivative of each of the following functions: f(x)=18x^4-14x^2+22X-1:

from sympy import *
x,f=symbols("x f")
f=-18*x**4-14*x**2+22*x-1
diff(f,x)

-72x^3-28x+22

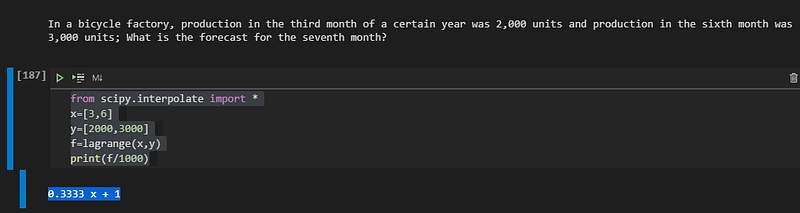

The Problem: In a bicycle factory, production in the third month of a certain year was 2,000 units and production in the sixth month was 3,000 units;

What is the forecast for the seventh month?

from scipy.interpolate import *
x=[3,6]
y=[2000,3000]
f=lagrange(x,y)
print(f/1000)

0.3333 x + 1
0.3333*7+1=3.3331

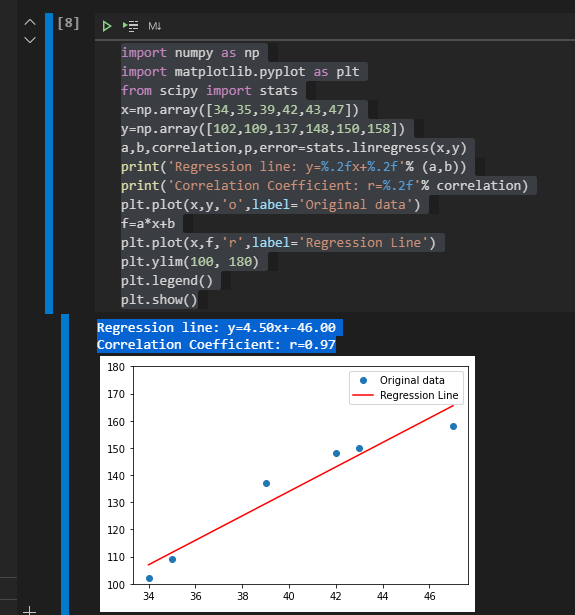

The Problem: A manager wants to find the relationship between the number of hours that a plant is operational in a week and weekly production. Here the independent variable x is hours of operation, and the dependent variable y is production volume. The manager develops the following table:

x - y

34 - 102

35 - 104

39 - 137

42 - 148

43 - 150

47 - 158

production Hour (x) - Production Volume (y)

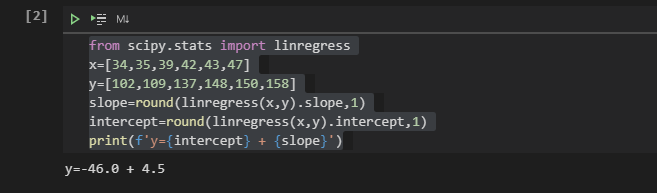

from scipy.stats import linregress
x=[34,35,39,42,43,47]
y=[102,109,137,148,150,158]
slope=round(linregress(x,y).slope,1)
intercept=round(linregress(x,y).intercept,1)
print(f'y={intercept} + {slope}')

y=-46.0 + 4.5

import numpy as np
import matplotlib.pyplot as plt
from scipy import stats
x=np.array([34,35,39,42,43,47])
y=np.array([102,109,137,148,150,158])
a,b,correlation,p,error=stats.linregress(x,y)
print('Regression line: y=%.2fx+%.2f'% (a,b))
print('Correlation Coefficient: r=%.2f'% correlation)
plt.plot(x,y,'o',label='Original data')
f=a*x+b
plt.plot(x,f,'r',label='Regression Line')
plt.ylim(100, 180)
plt.legend()
plt.show()

Regression line: y=4.50x+-46.00
Correlation Coefficient: r=0.97
