camunda with spring boot example

Now lets build an spring boot camunda project:

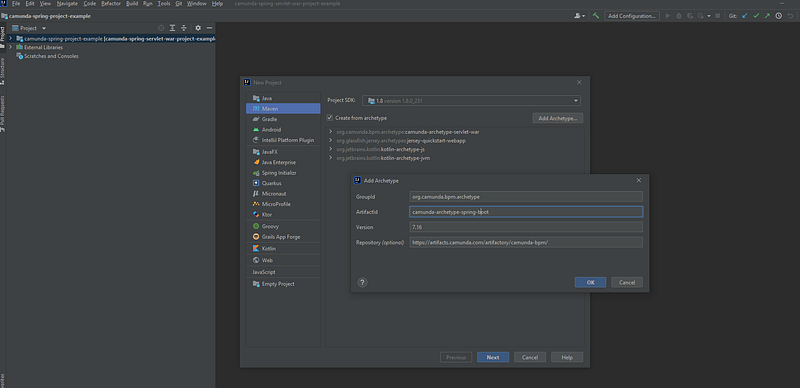

First of all we need to add camunda archetype-spring-boot to our intellij maven project

groupId: org.camunda.bpm.archetype

ArtifactId: camunda-archetype-spring-boot

version : 7.16.0

Repository: https://artifacts.camunda.com/artifactory/camunda-bpm/

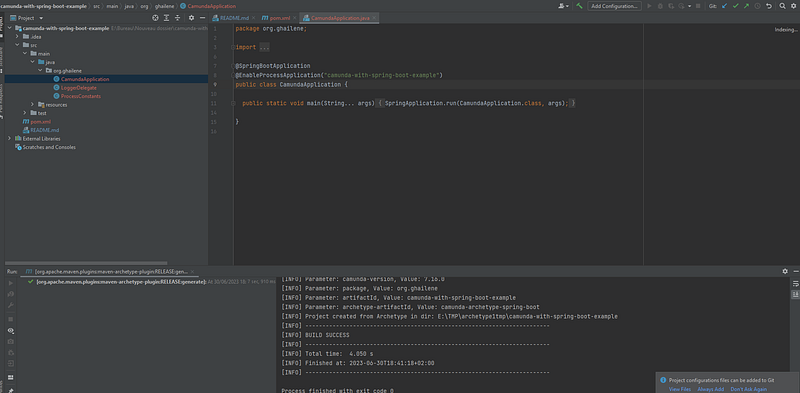

CamundaApplication class => is the entry point of the application @EnableProcessApplication => is responsible of bootstrap the camunda

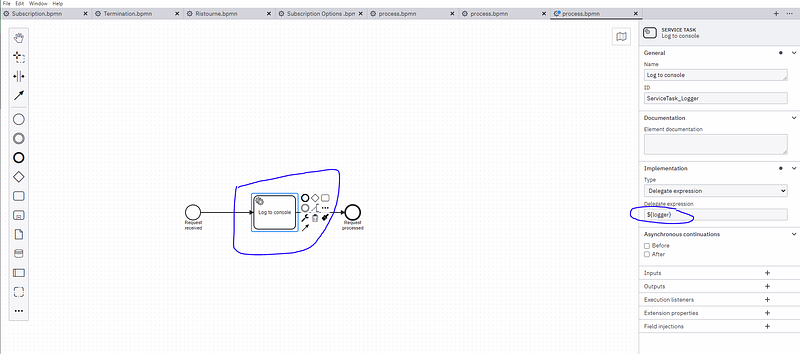

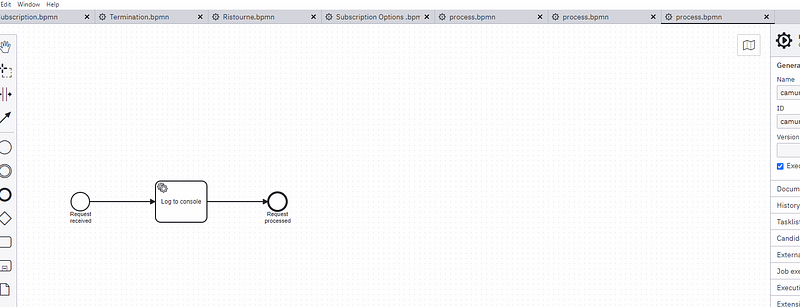

The default bpmn file existing :

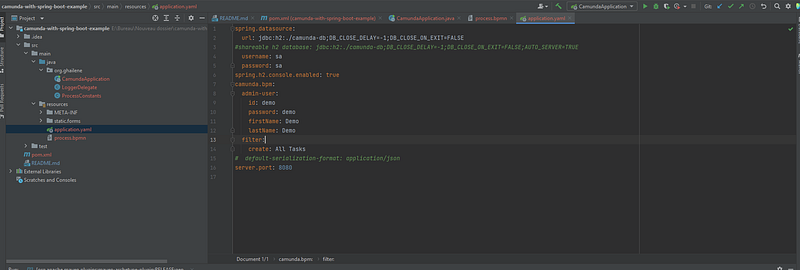

=============application.yaml=================

contains different properties about the application :

the used database is h2 in memory database

the user name

the password

the port

use can also add more user in the config

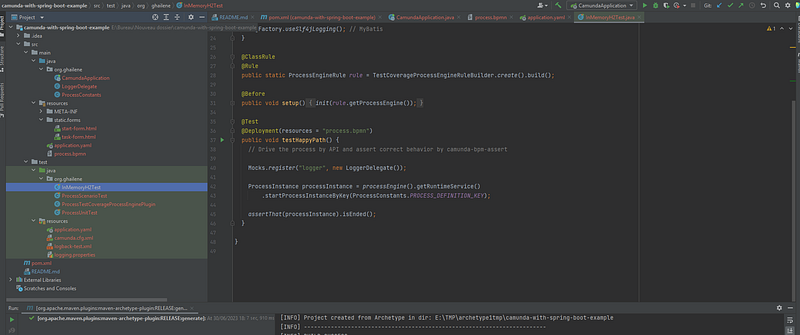

=================The project structure====================

==========Run the application and server==============

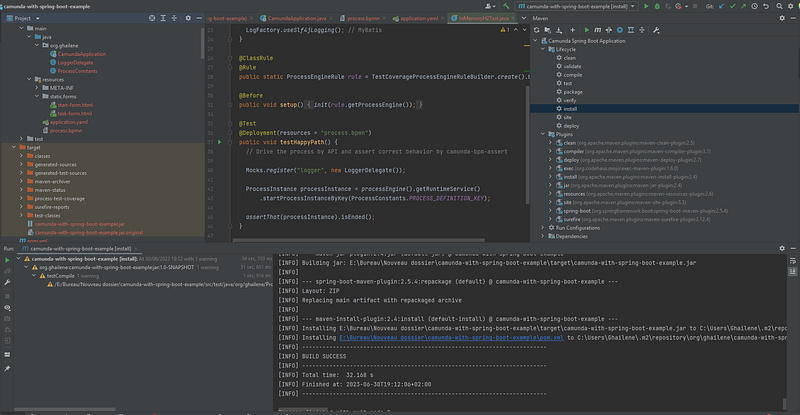

mvn install to generate the jar :

the run the server by going the main class and click run java application:

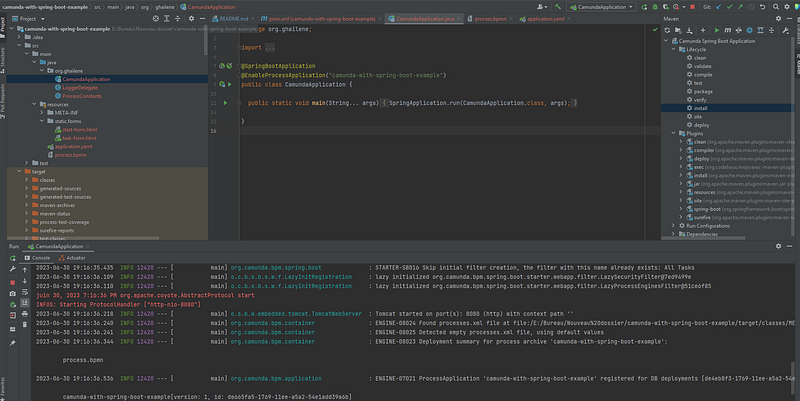

the server is up on port 8080:

open localhost:8080 to enter to the camunda webapp:

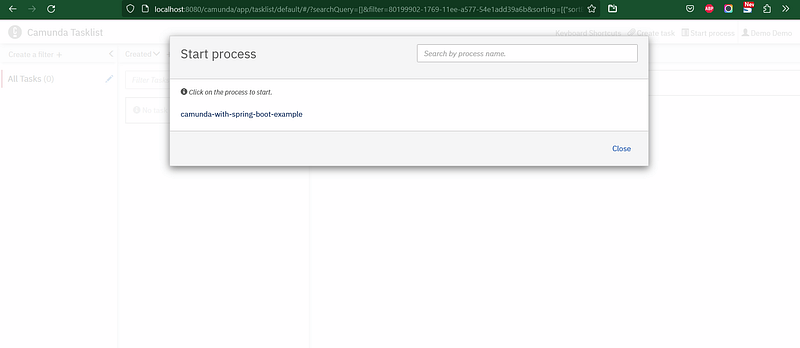

Now we can run our process :

we can see the service task of log will print the log into our spring boot application console:

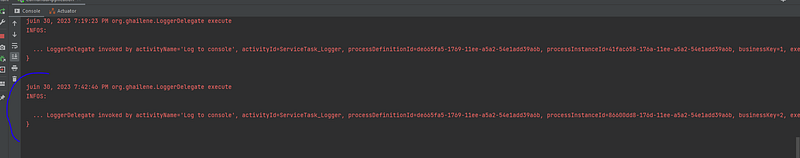

in the application console:

Thanks you for seeing my post, don’t hesitate to contact me for further informations.
