Lego Sensor — LineFollower
Line Follower Tribot v1.0— Episode #07
The Tribot uses the Color Sensor in Reflected Light Intensity mode to follow the edge of the line by adjusting the steering based on the light Sensor reading.
More videos? click here now!
How does it work?
Sensor reading tells you how much light is reflected from a small circular area under the sensor.

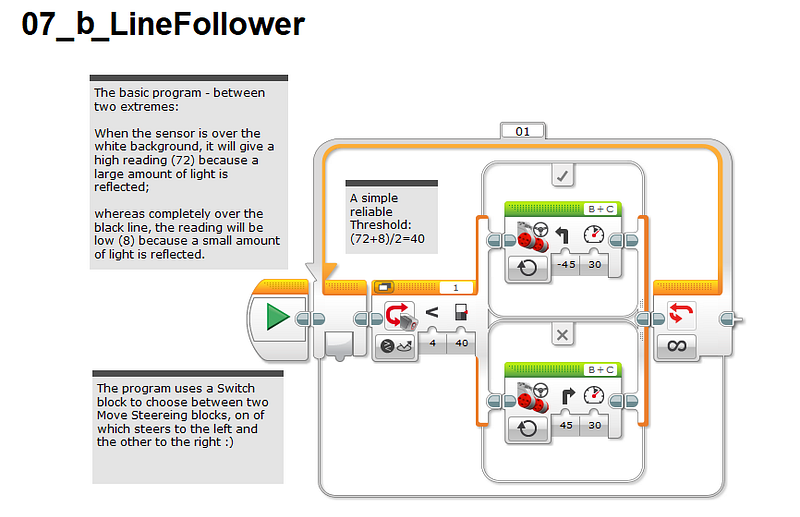

The basic program — between two extremes:
When the sensor is over the white background, it will give a high reading (72) because a large amount of light is reflected;
Whereas completely over the black line, the reading will be low (8) because a small amount of light is reflected.
Let’s read Color Sensor in different positions. How about 5 positions?
Here are my readings:

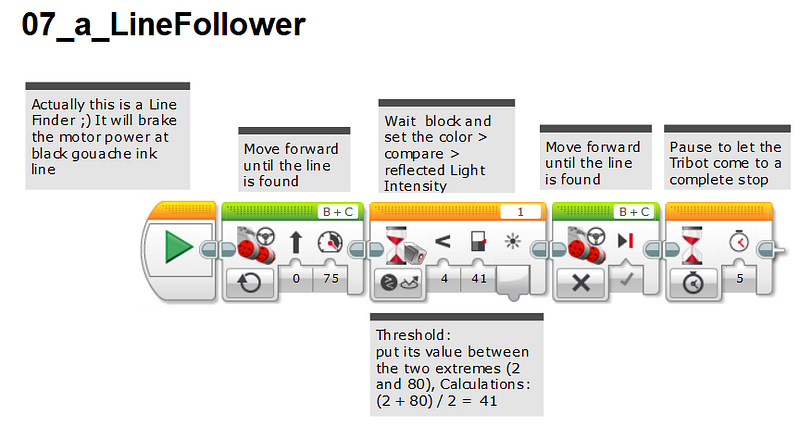

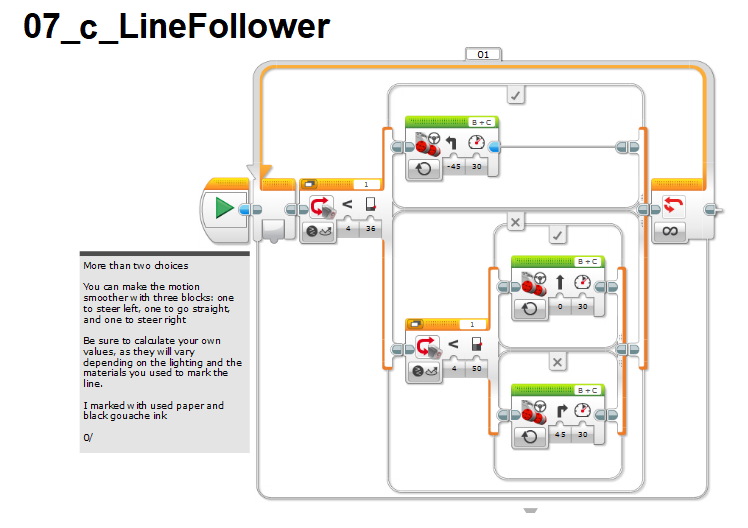

The Codes:
That’s it!
You can download all the codes in my google driver repository. We are getting used to the lego and from now on we can impress our friends and family ;)
Download All files For This Episode
