LEGO Theory — Multitasking
A very Useful Programming Technique — Episode #13
Using multiple sequences — treads — allows your program to perform more than one task simultaneously :) videos? click here now!
In this post, we’re gonna explore some concepts related to the ways of how to use multiple sequences in our program: Multitasking!
Why should we be worried about multitasking?
In a competition, like FLL, instead of using fixed configuration for our robot, we could collect information from the track during the race and set the parameters at runtime.
Think about a line follower robot: Will track illumination influence the performance of our robot? Will the material that they made the track influence robot’s performance in the same way that does impact playing tennis on a hard, Grass or Clay Court?
Collecting data at runtime can be our competitive differential, and may represent a place on the podium! Who knows? Just get ready!
For Data Logging see Episode #10 ;)
Let’s get it on!

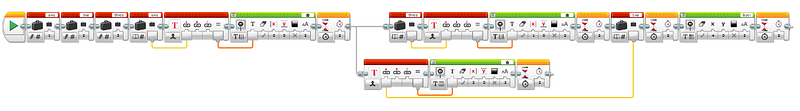

To start it off, let’s play with a very simple sequence: 1, 2 and 3.
Are we counting 1, 2 and 3? Nope…instead, it is 1,3 and 2. Why is that?
The key issue resides in the fact that is the variable two, which is passed via data wire, that triggers the second treads. At that very moment, that is, after the three variable is presented on the screen, is that the two pops up.

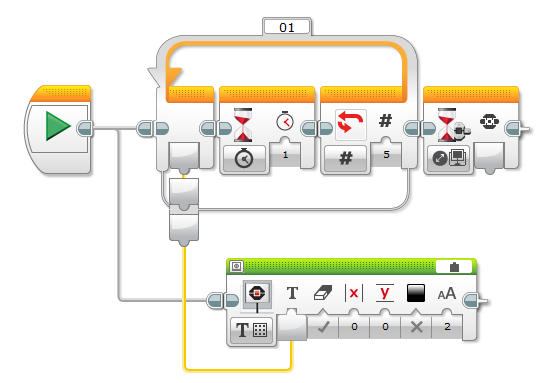

The next alert is about loop: it must be finished first before variables can be passed by. In the program below, inside the loop, we are counting one through five and trying to display the digits on the screen. But in the end, just digit 4 appears on screen…Why is that occurs?
The threads above are only initialized after the loop exits. And it comes out on index 4. Stay alert, okay?

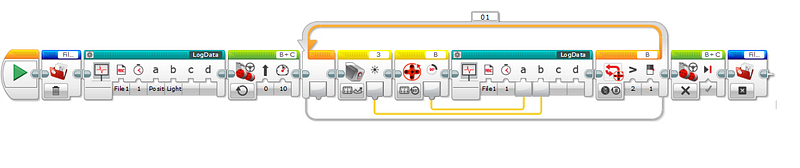

The next exercise is a simple way to data logging the sensor readings at various distances from the black line: 13_ReadingBlackLine_v1:
The data is stored in a file named File1. The loop block is configured to run until the Motor B Rotation Sensor reads greater than one rotation, which will move the Tribot far enough to accumulate all the data we want (Fig.3).

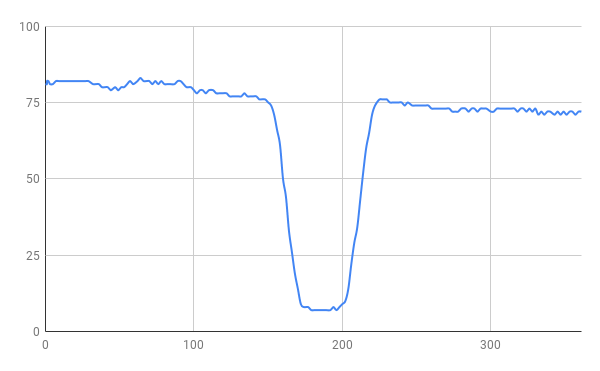

Here is the resulting graphic:
The two nice straight lines formed by the readings as they change those 70 to 8 tells us that the reading is proportional to the distance from the edge, which is why we can use those readings as a reliable basis for the proportional line follower.
Reading At Runtime — Proportional Algorithm

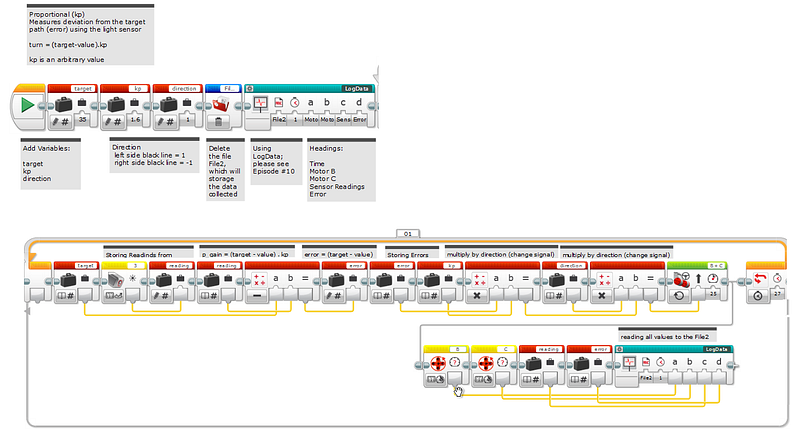

Now the last exercise: let’s collect data as Tribot gives an entire revolution on the track.

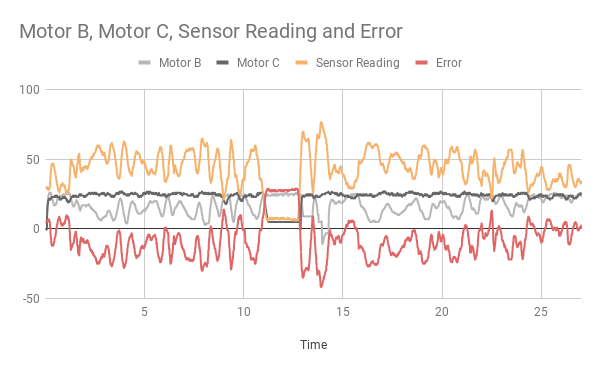

Look at that! Wow! Yeap Tribot works hard; I could not even imagine this because the Tribot runs smoothly all the way, could you?
The error line (red) is the mirror of the sensor reading (orange); Motor B (gray) basically takes care of the outer (of the curve) wheel; Motor B is the one that works hard and it reacts proportionally to the recorded error (60%), while Motor C (black) only works hard at the most critical point of the curve (Fig.6); When the speed of the two motors is the same (well at the end of the lap), then its curves (Motors A & B) overlap (Fig. 8).
When We Must (Not) Use Multitasking
. Use a second sequence (treads) only when it’s really necessary;. Edit the program slowly;. Avoid trying to control the same motor or sensor from more than one treads;. Use Variables instead of data wires to pass information between treads;. Be specially careful with data wires that pass into or out Loop blocks and Switch blocks;. Multiple sequences are most appropriate when the tasks they perform are independent;And that’s all folks!
Thanks for being here!
Until PID ….but to get there in the next episode we’re gonna deal with normalization o/
