Lego — Data Logging

Data Collection and the EV3 — Episode # 10

Data logging is the process of acquiring and recording data.

Collecting data by hand can be tedious and error-prone.

Let’s use the Lego computer to do this monotonous task for us; Be Welcome :)

Jump to videos? to see my Lego’s youtube playlist— click here;

Data Logging can help you learn the world around you by streaming and collecting sensory information about your surroundings :)

With Data Logging you can:

   - create the data file;
   - collecting sensor data;
   - writing the data to the file with a timestamp;
   - and even controlling the rate of the data collection...

And Here is the video:

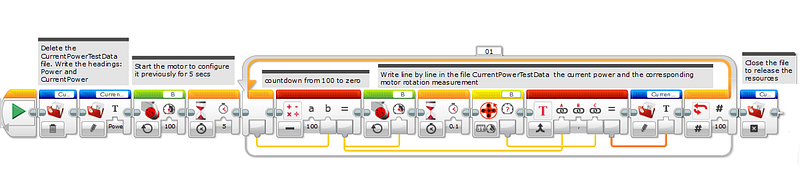

Here is our LogBot v1 program!

Code

The Tribot rotates on its own axis and slows down its speed until it stops. The code takes 100 readings and stores the information in a file called CurrentPowerTestData; When opening the file use Tools> Memory Browser and rename the .rbt to .csv. So done open it in google spreadsheet.

Watch the video for more information, please;)

I tested the code with the Tribot on the table and suspended in the hand and see the difference in the graphs below:

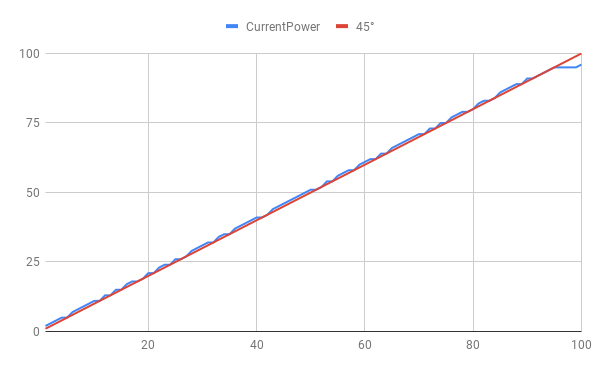

Graph I

I lifted the robot so that the wheels would run without load:

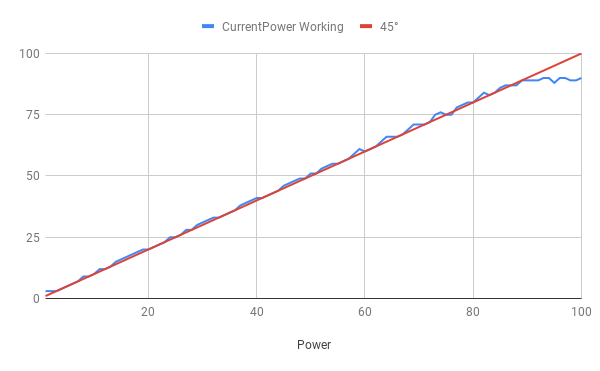

Graph II

Now the robot rotates with load:

Results

The blue line is the motor power. My battery is brand new.

As the battery goes unloading certainty the maximum values of rotation will be decreasing.

See that the motor (blue line) reacts almost linearly with the power demanding (red line).

For Graph I the max power is 96 (without load).

For Graph II the max power is 90 (with load).

Now you have a way of knowing if your plant is being efficient or not; what is the charge level of your battery? My mechanical designs are efficient? Is the gearbox releasing all the power of the motor?

Now you have a data log! Congratulations!

Keep reading for more information about data logging…

Download All The Files For This Project

My Block

The LogBot v1 program uses a Text block to join the Power parameter and Current Power reading values in a file.

This method can quickly become cumbersome as the number of variables increases:/

To solve this problem we present version 2:

Meet LogBot_v2 in the format of My Block named LogData:

LogData makes the process of displaying on the screen numbers in text format a breeze (up to 1 timestamp and 4 readings);

To learn how do My Block, watch this video:) ☝️ Correction in the video below: Do not forget the last data wire from Text Block to File Block☝️

Testing My Block

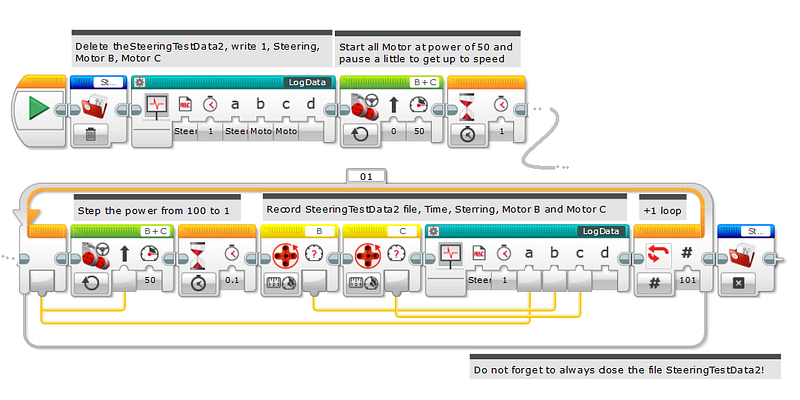

Now let’s use the SteeringTestData2 file to test my block DataLog:

This program will make the Tribot traces a spiral line similar to a snail shell. It is very interesting.

While Motor B maintains the speed of 50, the Motor C will slow down the rotation until zeroing, then begins to turn backward. All this movement is recorded in the file SteeringTestData2 and the graphic below describes the movement.

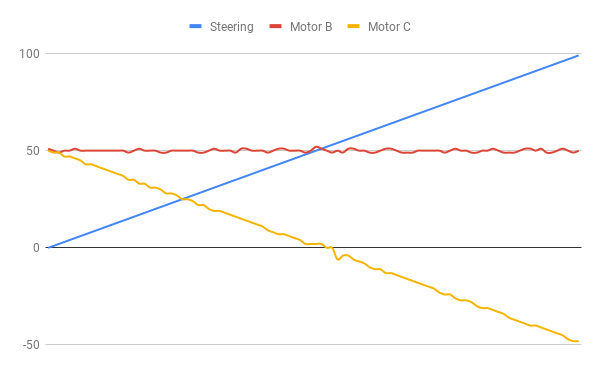

Here is the resulting graph:(https://docs.google.com/spreadsheets/d/1HAJsQT0U_IEzeSizSLKVT9YokYcONA3lbj3umdzD_JY/edit?usp=sharing):

When the Steering parameter is 0, both motors have a Current Power reading of 50;

When the Steering parameter is 50, Current Power of the Motor C is 0, which means it’s not moving at all.

When the Steering parameter at 100, Motor C has a Current Power of -50, so it moves just as fast as Motor B but in the opposite direction.

A Steering parameter between 50 and 100 causes the robot to spins around.

brainstorming

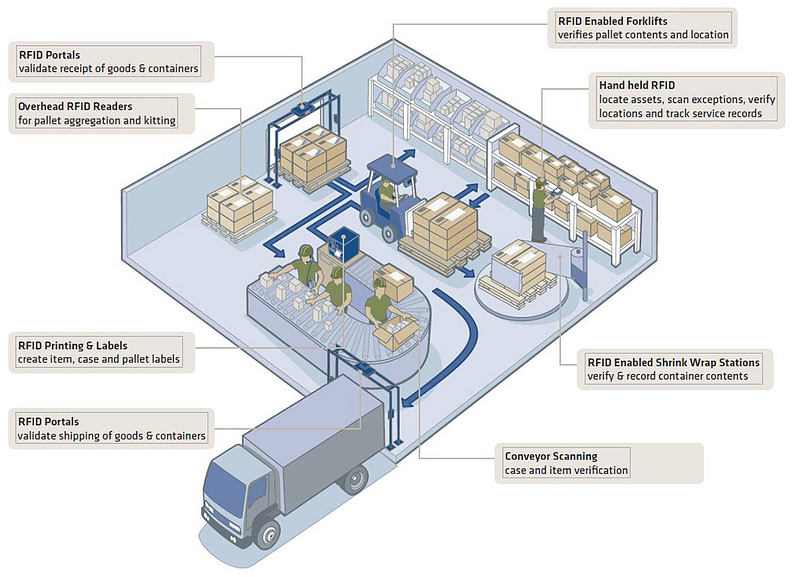

Imagine that you are the Automation Solution Providers (ASP) for the Fast Delivery Company above.

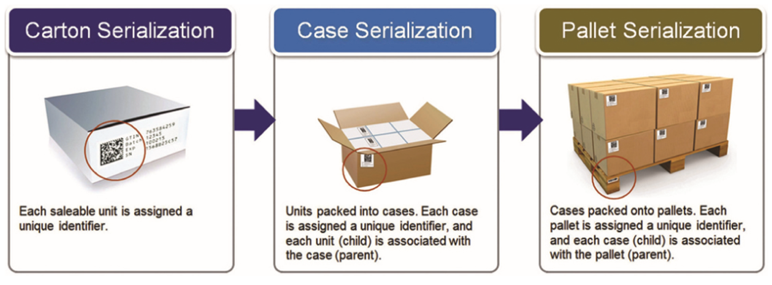

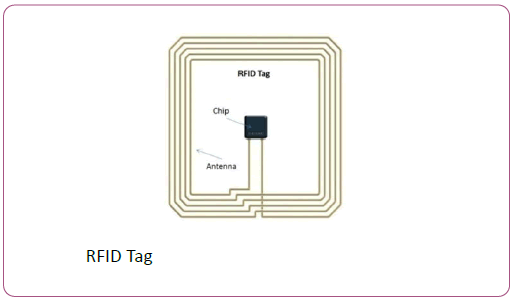

The first information for your data logger will be the Time Receps of Gods and the Number of each Pallet; this is the timestamp in which each good is received in the warehouse (see below). Read an RFID tag that cames sticker on top of each pallet.

Here is how your reading workflow:

Realize that the forklift is smart too; it does the reading of the pallets that it carries. These data are retrieved to your data logging too.

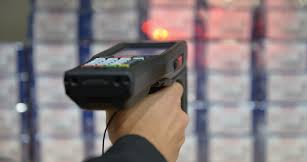

The Clerk who collects the goods for the boxes uses a portable device to read the RFID tags. This data will compose your datalogger as well:)

Ok you’ve got the idea, right? Now it’s up to you! Make your own data recorder!

That’s all for now, folks.

See you soon!

Bye o/

Download All The Files For This Project
