LEGO Formula — Normalizing Data
Converting Data to Use The Same Range — Episode #14
Did you hear about Normalization? No, Here’s the scoop: when you normalize a set of data, you map the original data range into another scale. videos? Click here now!
I’m going to be showing you how to convert information read from the IR Sensor into normalized data set to turn your data into a percentage scale and make your line follower program adaptable to any track!

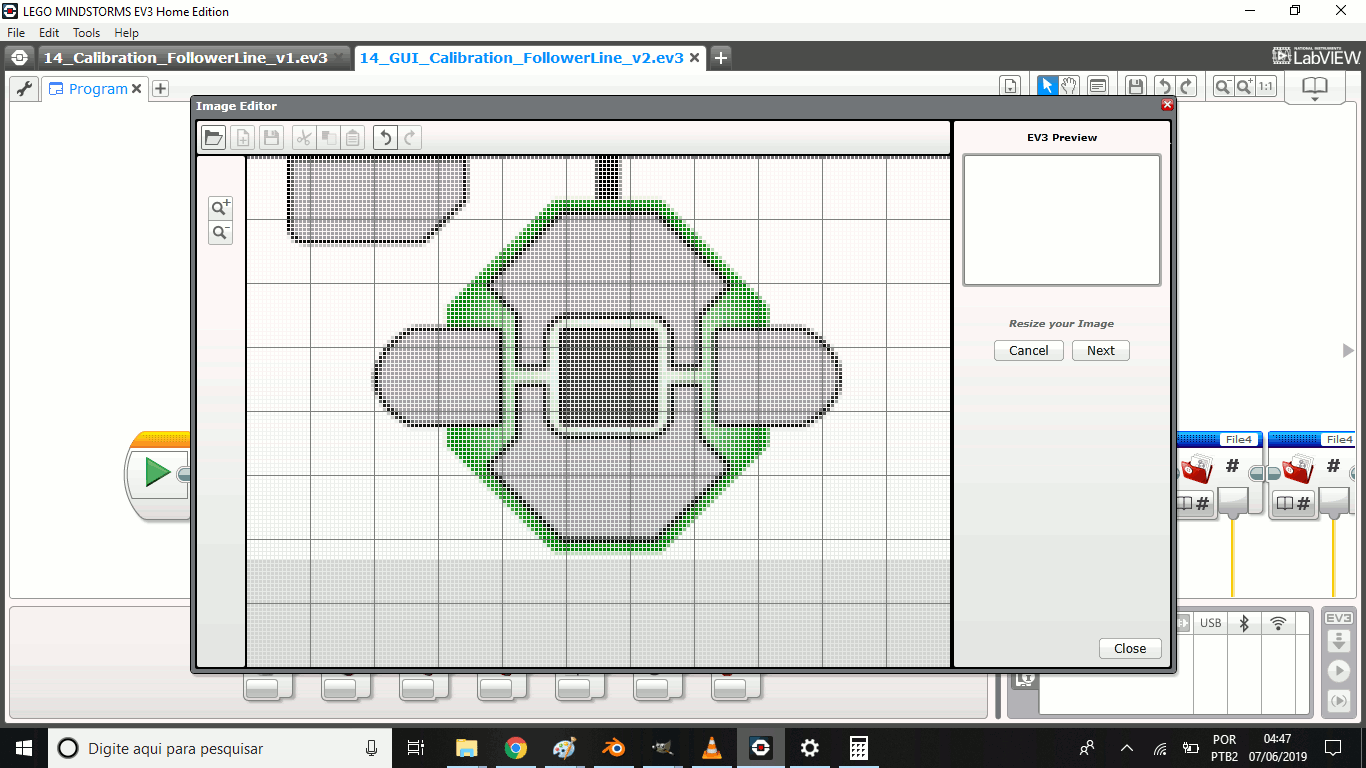

In the end, we implement a code that joins both the calibration and the navigation functionality using the EV3 programming environment’s built-in Image Editor to make the menu graphics — a follower line custom GUI.
Motivation
Let’s say I run the 13_BlackLineReading_v1 code, from Episode #13, on my test line and get Min and Max values of 5 and 65, and let’s suppose that you run the same program on your line and get values of 15 and 55 with your own paraphernalia.
The midpoint of both sets of values is 35, but the program 12_Proportional_Controller_v1 really should react differently for each line because the range of values is different.
How to implement a code that works for both (or any) test tracks? or how to configure according to the maximum and minimum restraints?
The solution would be to turn all scales into a percentage and this is called normalizing for a percentage scale (in fact you can normalize to any scale).
Let`s just create some intuition about normalization:
Suppose you are reading a sensor in the Arduino’s analog pin A1.
The analog-to-digital converter of ATMega328p (the chip that comes in the Arduino board) has a 10-bits resolution; this means that it can spit out values from 0 to 1023 (2¹⁰).
All you want is to put all values in percentage :).
So far so good!

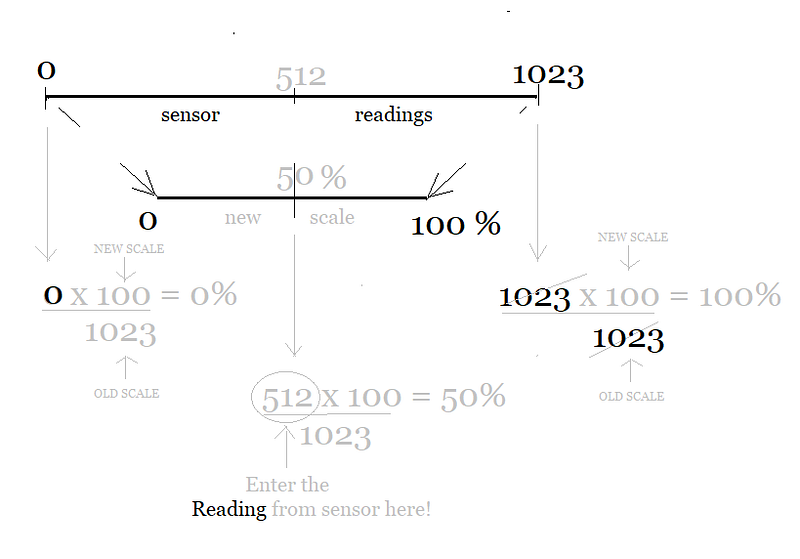

To get the percentage scale you can do like this:
From the calculation above, you can see that it is enough to divide the reading taken from the sensor by the original scale (removing so this scale from the result) and multiply the equation by the new max scale value (adopting this new scale).
Back to LEGO:)
The steps for normalizing a data set are described here.
1° Step
Calculate the normalized value of every number x in the original data set using this equation (scientific formula):
2° Step

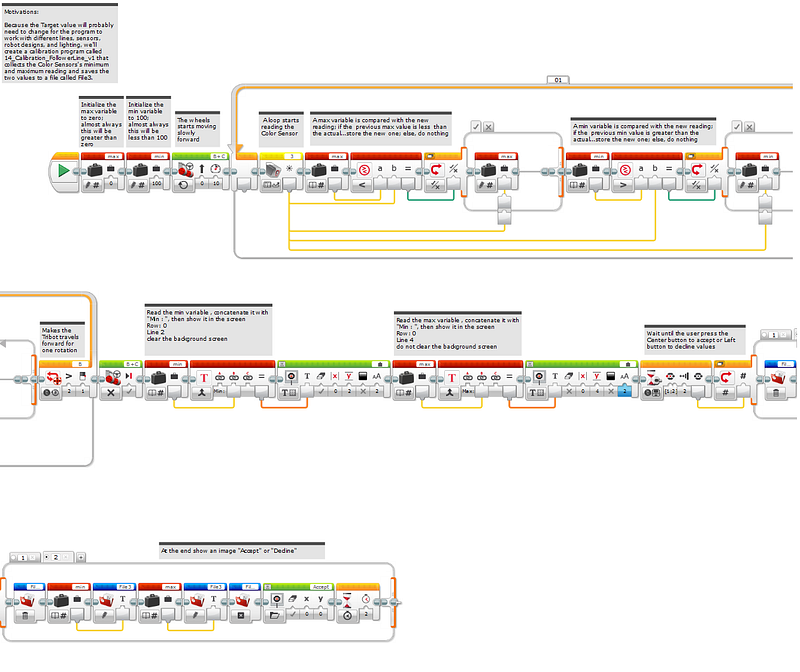

Identify the Maximum and Minimum values numbers in the original data set and save them in the variables max and min, respectively, saving the data set to a file called File3.
3° Step

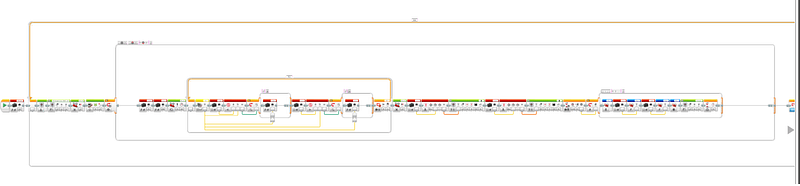

Now, join the follower line, calibration, and data normalizer in one program with a custom GUI, saving the min and max values to a File named File4 and retrieving them internally to calibrate the Tribot v1:
This GUI, follower line’s Graphical User Interface, allows the user to select one of the two operating modes (or more) within the same program. After selecting an operating mode, the user can exit and return to this menu screen to select a new operating mode.
A GUI has additional applications within the realm of LEGO robotics — many First Lego League (FLL) teams have decided to use custom GUI’s and/or program sequencers to make changing programs quicker and easier, saving precious time on the competition field.
And that’s all folks!
For the next episode, we will use finally PID controller.
The ideas behind the Proportional-integral-derivative controller are about 100 years old and are used to control all kinds of mechanisms in everything from ship navigation and printers to musical instruments.
Bye!
