One To Many mapping in Spring Boot JPA

One-to-Many relationship is used when one entity can have multiple instances of another entity.

A one-to-many relationship occurs when one entity (e.g., Book) can be associated with multiple instances of another entity (e.g., Chapter). This type of relationship is useful when you have a parent entity that logically owns or relates to several child entities. In this case, a Book can have multiple Chapter entities.

When to Use One-to-Many Relationships

Use a one-to-many relationship when an entity needs to associate with multiple child entities. For example, a Book can have multiple Chapter entities.
Scenarios: A blog with multiple comments, a department with multiple employees, or a product with multiple reviews.

Here’s a complete example using Spring Boot and MySQL for a Book entity having a one-to-many relationship with Chapter entities:

1. Project Setup

Ensure that you have the following dependencies in your pom.xml:

<dependencies>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-data-jpa</artifactId>
    </dependency>
    <dependency>
        <groupId>mysql</groupId>
        <artifactId>mysql-connector-java</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>
</dependencies>

2. Application Properties Configuration

Configure MySQL connection settings in src/main/resources/application.properties:

spring.datasource.url=jdbc:mysql://localhost:3306/bookdb
spring.datasource.username=root
spring.datasource.password=your_password
spring.jpa.hibernate.ddl-auto=update
spring.jpa.show-sql=true

3. Entity Classes

Book Entity

package com.example.demo.entity;

import javax.persistence.*;
import java.util.List;

@Entity
public class Book {

    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Long id;
    private String title;

    @OneToMany(mappedBy = "book", cascade = CascadeType.ALL, fetch = FetchType.LAZY)
    private List<Chapter> chapters;

    // Getters and setters
    public Long getId() {
        return id;
    }

    public void setId(Long id) {
        this.id = id;
    }

    public String getTitle() {
        return title;
    }

    public void setTitle(String title) {
        this.title = title;
    }

    public List<Chapter> getChapters() {
        return chapters;
    }

    public void setChapters(List<Chapter> chapters) {
        this.chapters = chapters;
    }
}

@Id: Marks the id field as the primary key of the Book entity.
@GeneratedValue(strategy = GenerationType.IDENTITY): Specifies that the id field value will be automatically generated by the database. In this case, GenerationType.IDENTITY tells JPA to use the database’s identity column to generate unique values for the id field. This is commonly used with databases that support auto-incremented columns.

mappedBy in One-to-Many Relationships

In a one-to-many relationship, the mappedBy attribute is used in the parent entity to indicate that it is not the owner of the relationship. Instead, the child entity owns the relationship. The mappedBy attribute points to the field in the child entity that is responsible for the relationship.

Explanation of mappedBy

In the Book Entity: The mappedBy = "book" attribute in the @OneToMany annotation specifies that the Book entity is not the owner of the relationship. Instead, the Chapter entity is the owner, and the field that owns the relationship is named book in the Chapter entity.
In the Chapter Entity: The @ManyToOne annotation with the @JoinColumn(name = "book_id") specifies that the Chapter entity contains a foreign key column (book_id) that references the Book entity. This makes Chapter the owner of the relationship.

Purpose of mappedBy

Maintain Consistency: It ensures that the relationship is consistent by specifying which side is responsible for managing the relationship.
Avoid Redundant Mapping: It prevents redundant foreign key columns and ensures that updates to the relationship are correctly propagated.

cascade and fetch are attributes of the relationship annotations (@OneToMany, @ManyToOne, etc.) that control how related entities are handled. Here’s what each of these attributes means:

cascade = CascadeType.ALL: If you persist a Book, all associated Chapter entities will also be persisted. Similarly, if you remove a Book, all associated Chapter entities will be removed.
fetch = FetchType.LAZY: The chapters list will not be loaded from the database until you access it. This means that if you load a Book object, its chapters are not immediately loaded; they will only be loaded when you explicitly call methods on the chapters list.

When to Use

CascadeType.ALL: Use this when you want all operations to propagate from the parent to child entities. This is often used when the lifecycle of child entities is tightly coupled with the parent entity.
FetchType.LAZY: Use this when you want to optimize performance and avoid unnecessary database queries. Lazy fetching is useful when you have large collections or associations that you don’t need immediately.

Chapter Entity

package com.example.demo.entity;

import javax.persistence.*;

@Entity
public class Chapter {

    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Long id;
    private String name;

    @ManyToOne
    @JoinColumn(name = "book_id")
    private Book book;

    // Getters and setters
    public Long getId() {
        return id;
    }

    public void setId(Long id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public Book getBook() {
        return book;
    }

    public void setBook(Book book) {
        this.book = book;
    }
}

@JoinColumn(name = "book_id"): This annotation specifies that the book_id column in the Chapter table is used as the foreign key that refers to the primary key of the Book entity. It establishes the relationship between the Chapter and Book entities.

Explanation

Foreign Key Column: @JoinColumn(name = "book_id") indicates that the Chapter entity will have a book_id column that holds the reference to the Book entity's primary key. This column is used to maintain the relationship between Chapter and Book.
Column Name: The name attribute specifies the name of the foreign key column in the database. In this case, the column book_id in the Chapter table will hold the id value from the Book table.
Relationship Management: The @ManyToOne annotation on the book field indicates that each Chapter is associated with one Book. The @JoinColumn annotation specifies how this association is mapped in the database.

4. Repository Interfaces BookRepository

package com.example.demo.repository;

import com.example.demo.entity.Book;
import org.springframework.data.jpa.repository.JpaRepository;

public interface BookRepository extends JpaRepository<Book, Long> {
}

ChapterRepository

package com.example.demo.repository;

import com.example.demo.entity.Chapter;
import org.springframework.data.jpa.repository.JpaRepository;

public interface ChapterRepository extends JpaRepository<Chapter, Long> {
}

5. Service Layer

You can create services to manage books and chapters.

package com.example.demo.service;

import com.example.demo.entity.Book;
import com.example.demo.entity.Chapter;
import com.example.demo.repository.BookRepository;
import com.example.demo.repository.ChapterRepository;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.util.List;

@Service
public class BookService {

    @Autowired
    private BookRepository bookRepository;

    @Autowired
    private ChapterRepository chapterRepository;

    public Book saveBookWithChapters(Book book) {
        return bookRepository.save(book);
    }

    public List<Book> getAllBooks() {
        return bookRepository.findAll();
    }

    public Book getBookById(Long id) {
        return bookRepository.findById(id).orElse(null);
    }
}

6. Controller Layer

Create a controller to manage requests.

package com.example.demo.controller;

import com.example.demo.entity.Book;
import com.example.demo.service.BookService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;

import java.util.List;

@RestController
@RequestMapping("/books")
public class BookController {

    @Autowired
    private BookService bookService;

    @PostMapping
    public Book createBook(@RequestBody Book book) {
        return bookService.saveBookWithChapters(book);
    }

    @GetMapping
    public List<Book> getAllBooks() {
        return bookService.getAllBooks();
    }

    @GetMapping("/{id}")
    public Book getBookById(@PathVariable Long id) {
        return bookService.getBookById(id);
    }
}

7. Sample JSON for Creating a Book with Chapters

Use the following JSON to create a Book with chapters via the /books POST endpoint:

{
  "title": "Spring Boot Guide",
  "chapters": [
    { "name": "Introduction to Spring Boot" },
    { "name": "Building REST APIs" },
    { "name": "Database Integration" }
  ]
}

8. Running the Application

Start the application.
Use a tool like Postman or curl to POST the above JSON to localhost:8080/books.
To retrieve all books, GET from localhost:8080/books.

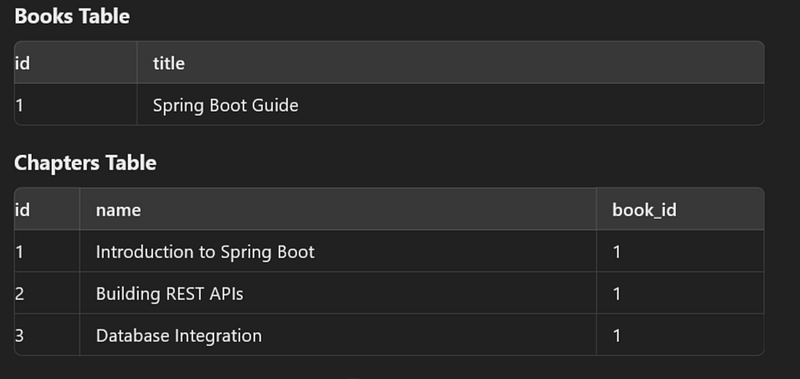

9. Output Example

This approach is useful when data is logically grouped but can be managed independently. For instance, chapters belong to a book but are distinct in content and can be managed (added/removed) independently while maintaining their association with the book.

Summary Notes :

Here are the possible CascadeType options:

PERSIST: When the parent entity is persisted, the associated child entities will also be persisted.
MERGE: When the parent entity is merged (updated), the associated child entities will also be merged.
REMOVE: When the parent entity is removed, the associated child entities will also be removed.
REFRESH: When the parent entity is refreshed, the associated child entities will also be refreshed.
DETACH: When the parent entity is detached from the persistence context, the associated child entities will also be detached.
ALL: Applies all the above operations.

FetchType options :

FetchType.LAZY: This means that the related entities are loaded on demand (lazily). They are not loaded from the database until they are explicitly accessed. This helps in improving performance by avoiding unnecessary data loading, especially when you don’t always need the related entities.
FetchType.EAGER: This means that the related entities are fetched immediately when the parent entity is fetched. This can lead to performance issues if there is a large amount of data because it loads all related entities upfront.

Primary Key Generation Strategies

There are several primary key generation strategies you can use:

GenerationType.AUTO: The persistence provider (JPA implementation) will choose an appropriate strategy for the database.
GenerationType.IDENTITY: The database generates a unique value automatically, usually by auto-incrementing a column.
GenerationType.SEQUENCE: A database sequence is used to generate primary key values.
GenerationType.TABLE: A separate table is used to generate unique primary key values.
