OpenCV — Object Detection

Viola–Jones Object Detection Framework #PyVisionSeries — Episode #08

This is all about object recognition.

Please, feel free to read this article: Haar-like feature (wikipedia)

All we’re doing here is detecting Russian license plates and images and then blurring them using haarcascade method.

00 step # Import libs

import cv2
import numpy as np
import matplotlib.pyplot as plt
%matplotlib inline

01step # Importing the Image to Work with

img = cv2.imread('DATA/car_plate_0.jpg')

02step # Displaying Image

Next, we want you to create a function that displays the image in a larger scale and does color correcting.

def display(img):
  fig = plt.figure(figsize=(10,8))
  ax = fig.add_subplot(111)
  new_img = cv2.cvtColor(img, cv2.COLOR_BGR2RGB)
  ax.imshow(new_img)

Test it:

display(img)

03 step # load the Cascade Russian Plate Number XML file.

For this step you have to download and paste inside your /DATA folder the Directory haarcascades.

plate_cascade = cv2.CascadeClassifier('DATA/haarcascades/haarcascade_russian_plate_number.xml')

04 step # A Function to Detect Plates

Next, we want to create a function that takes in the image and draws a rectangle around what it takes.

def detect_plate(img):
  plate_img = img.copy()
  plate_rects = plate_cascade.detectMultiScale(plate_img,
    scaleFactor=1.3, minNeighbors=3)

  for(x,y,w,h) in plate_rects:
    cv2.rectangle(plate_img, (x,y), (x+w, y+h), (0,0,255),3)

  return plate_img

Test it:

result = detect_plate(img)

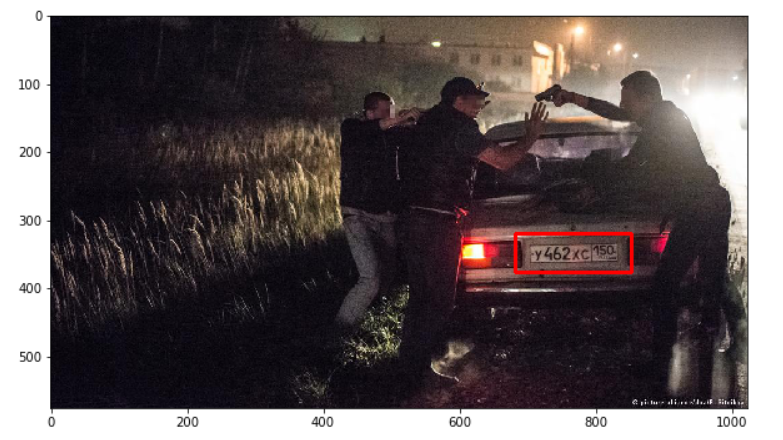

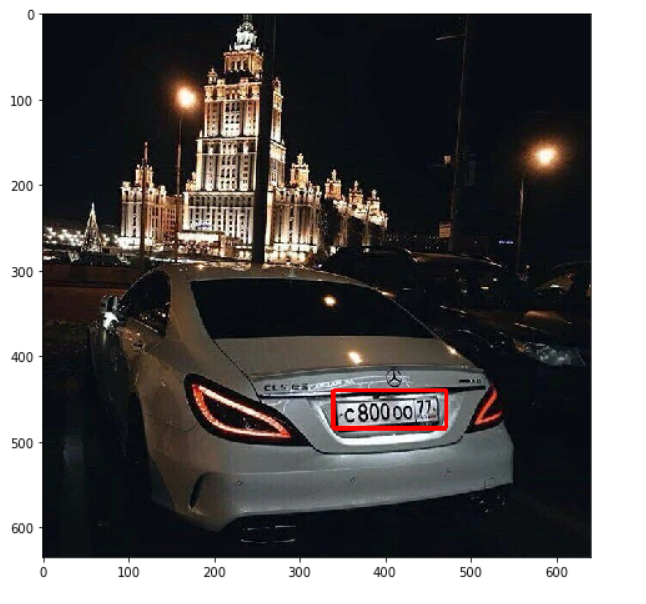

Displaying it:

display(result)

04 step # A Function to Detect Plates

So now that I know where the license plate is, I can then blur it out.

So the way I’m going to do this is I’m actually going to cut out this region and set that as a region of interest (RoI).

Then I will blur that region and then stick it back into the original image.

def detect_n_blur_plate(img):
  plate_img = img.copy()
  roi = img.copy()
  plate_rects = plate_cascade.detectMultiScale(plate_img,
    scaleFactor=1.3, minNeighbors=3)

  for(x,y,w,h) in plate_rects:
    roi = roi[y:y+h, x:x+w]
    blured_roi = cv2.medianBlur(roi, 7)
    plate_img[y:y+h, x:x+w] = blured_roi

  return plate_img

Test it:

result = detect_n_blur_plate(img)

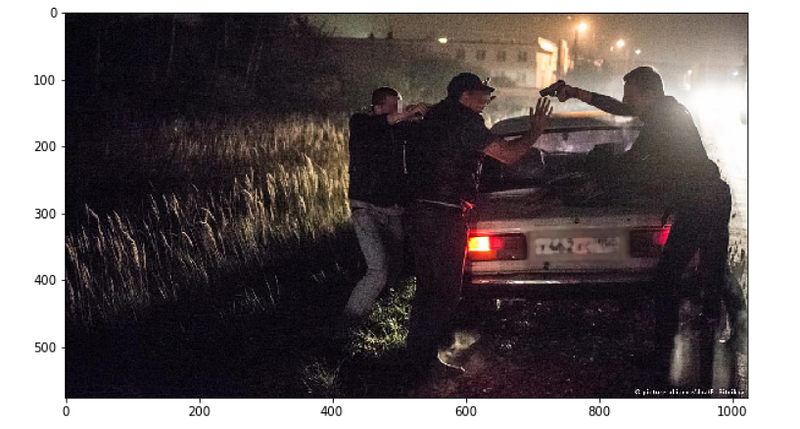

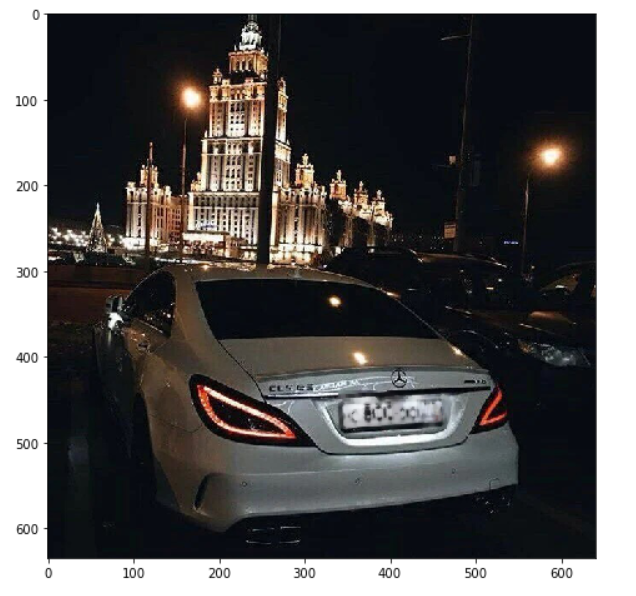

Displaying it:

display(result)

These are the file for this project

Run the method on each of the images

Please, take a look at this post concerning of how to manipulate files. :)

from pathlib import Path
path = Path('DATA/')
files = path.iterdir()
for file in files:
  file_name = file.name
  if file_name[:9]=='car_plate' and file_name[-3:] == 'jpg':
    print(file_name)


That’s all folks!

print("That's it! Thank you once again!\nI hope will be helpful.")

That's it! Thank you once again!
I hope will be helpful.

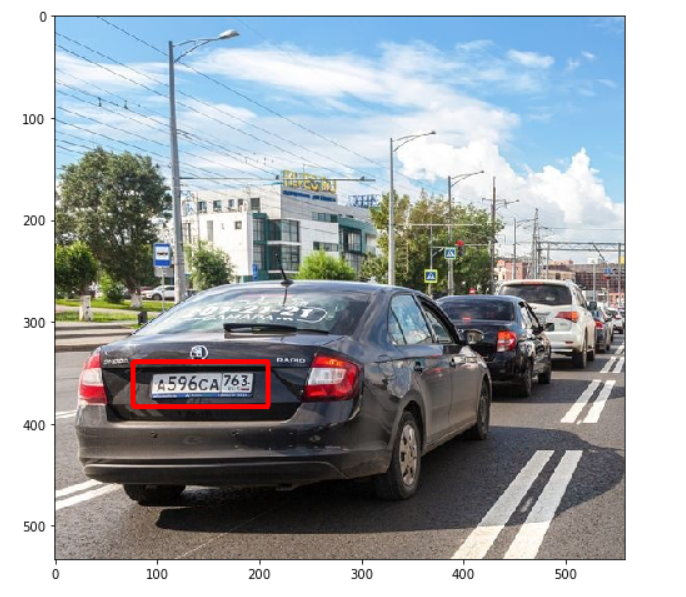

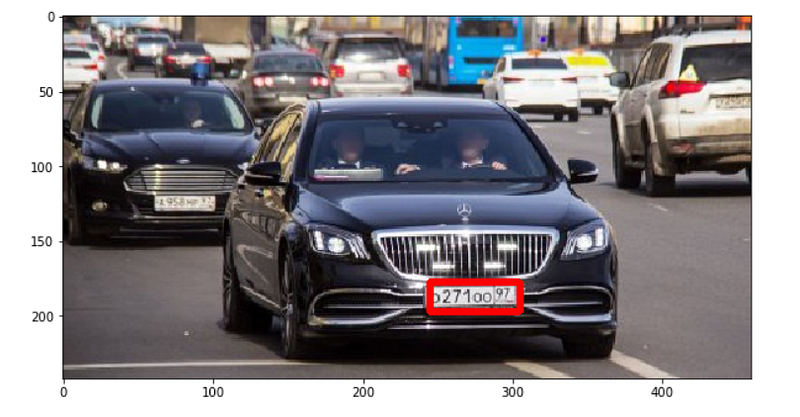

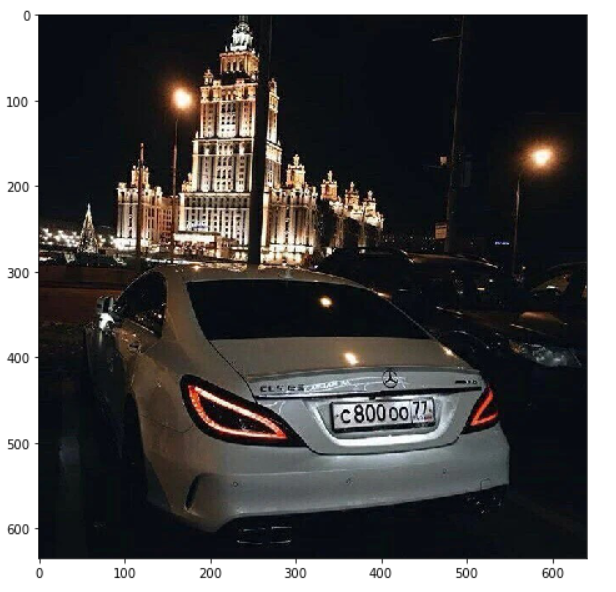

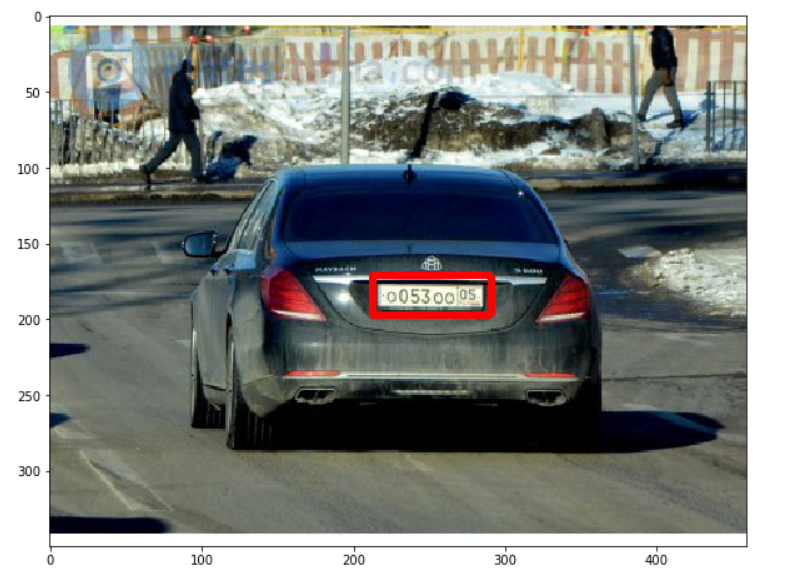

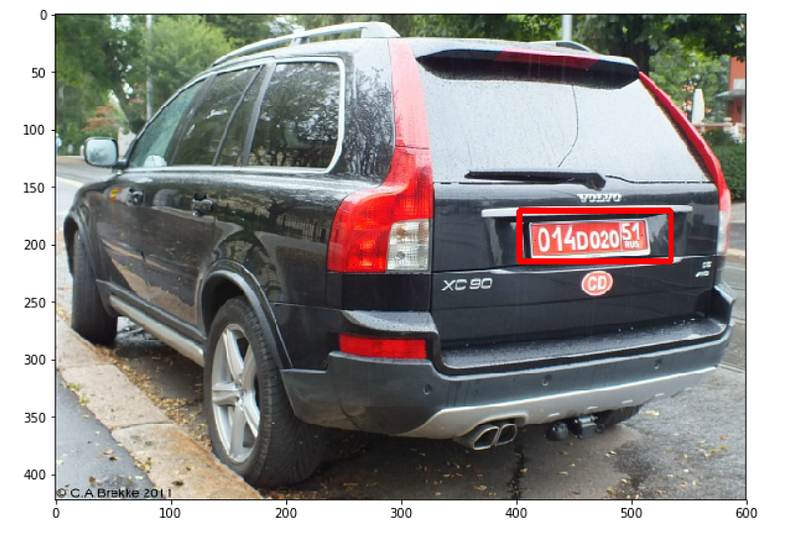

Folows the images tested by us:

Note:

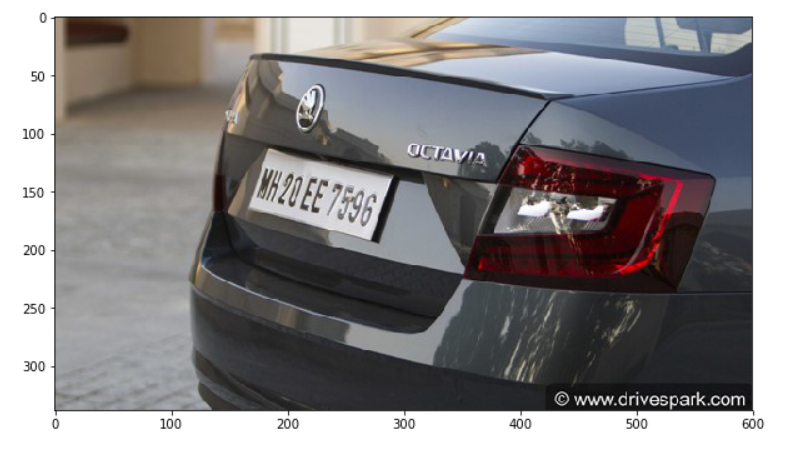

The last image the algorithm was not able to detect.

The reasons may be several: The image may be at an angle difficult to detect, the numbering may not be Russian, the taillights do not give adequate space, who knows...

Try it yourself by manipulating the function parameters.

That is all!
Goodbye

👉Jupiter notebook link :)

👉Github (EX_08)

Credits & References:

Jose Portilla — Python for Computer Vision with OpenCV and Deep Learning — Learn the latest techniques in computer vision with Python, OpenCV, and Deep Learning!
