J3C3-Caterpillar-Crawler-Chassis v 1.0— ArduSerie#46

By watching this video you will learn how to mount a 25 Bucks Chinese Caterpillar Robot and well … you will need no manuals - in fact, Chinese products rarely come with one:/ Everything is condensed in half an hour. Here I share simply everything: the necessary tools, which components I will use in this project, secrets, and how to mount without mistakes… It’s my first unboxing and It was lovely done! Enjoy!

Material needed:

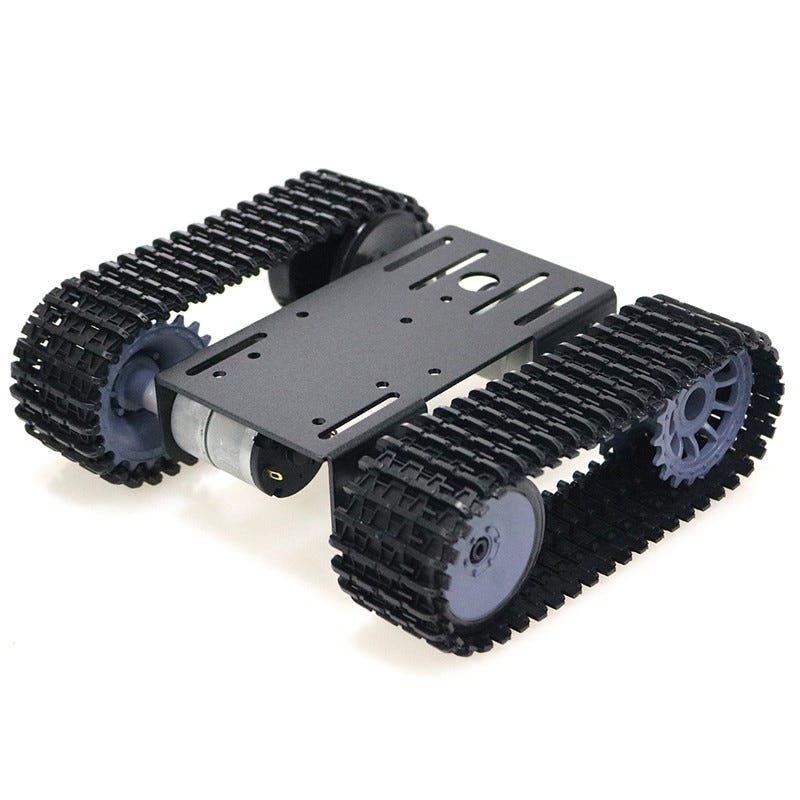

1. Robot-Smart-Tank-Car-Chassis-Tracked-Caterpillar-Crawler-Robot-Platform
2. A Needle Nose Plier TOOL-08793 or similar
3. 2 x 1/4 inch wrenches
4. The probe of an old multimeter
5. 1/4 Hex Phillips Screwdriver

Optional Gadget:

1. Mini Pan-Tilt Kit (Without Micro Servos)
2. 2 x Micro servo Turnigy TG9e or similar
3. Motor Control Shield for Arduino (with L293L & 74HC595N)
4. Arduino UNO or compatible
5. Ultrasonic Sensor — HC-SR04
6. LiPo (Lithium Polymer) Battery
7. TS100 Electric Soldering Iron Kit
8. Adafruit Motor/Stepper/Servo Shield for Arduino v2 Kit — v2.3
9. Mini Pan-Tilt Kit — Assembled with Micro Servos
10. HC-SR04 Ultrasonic Sonar Distance Sensor
11. Camera VGA OV7670
12. LCD Keypad Shield
13. Arduino Project Enclosure
14. Security seal tamper
15. Laser cannon
16. Pixy
17. Plastic Hercules Wheel
18. Cellular Holder
