Pressing-Button w/ Atmel Studio 7 & UNO Serie (Episode#03)

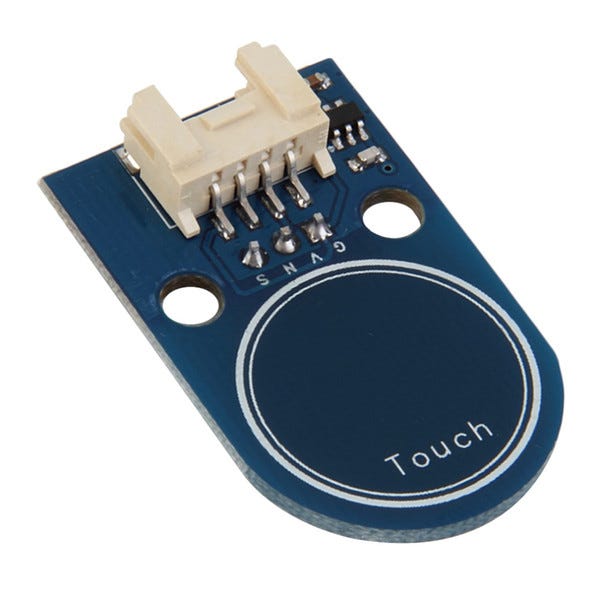

By pressing the touch button (Arduino Pin 7), turn on LED (Arduino Pin 8).

Let’s get started!

In order to use the interrupt, we will choose a button to begin the whole process in our search for the methods of sleep (energy saving).

Step#01→ choose 2 pins: LED Attach -> Pin 0 of PORTB (Arduino Digital 8); Switch Key -> Pin 7 of PORTD (Arduino Digital 7) ;

By looking in datasheet he is the code:

The first we are setting Pin 0, Port B (Arduino Digital 8); The second clearing Pin 7, Port D (Arduino Digital 7)

DDRB |= (1<<DDB0);
DDRD &= ~(1<<DDD7);

Step #02→ Defining the basics macros for clears the code:


#define LedOn PORTB |= (1<<PORTB0)
#define LedOff PORTB &= ~(1<<PORTB0)
#define LedToggle PINB |= (1<<PINB0)

Step #03→ The secret is that fragment:

if (!(PIND & (1<<PIND7)))

The button sends zero volts to pin D7; so we wait just this moment … cool is not it?

Step #04→ Here is the complete code;

In the next post we are using Interruptions instead of polling techniques. Stay Tuned!
