Day 42: 60 days of Data Science and Machine Learning Series

RNN and Tensorflow with a project ..

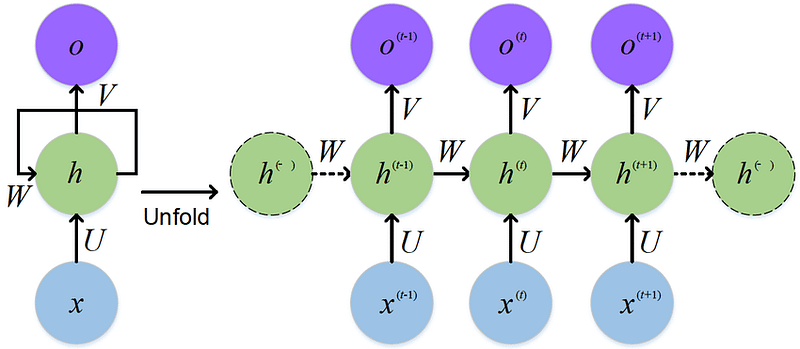

How RNN works ( Pic credits : Research Gate)

Welcome back peeps. In this post we are going to understand the basics of Tensorflow with a project.

Recurrent Neural Network, created in the 1980’s, is a state of the art algorithm for dealing with sequential data by using internal memory to remember important things about the input RNN’s received to precisely predict what’s coming next. RNN’s are popularly used in language translation, natural language processing (nlp), speech recognition, captioning etc.

RNN vs Feed Forward Network ( Pic credits : IBM)

Some of the other best Series —

30 Days of Natural Language Processing ( NLP) Series

30 days of Data Engineering with projects Series

60 days of Data Science and ML Series with projects

100 days : Your Data Science and Machine Learning Degree Series with projects

23 Data Science Techniques You Should Know

Tech Interview Series — Curated List of coding questions

Complete System Design with most popular Questions Series

Complete Data Visualization and Pre-processing Series with projects

Complete Python Series with Projects

Complete Advanced Python Series with Projects

Kaggle Best Notebooks that will teach you the most

Complete Developers Guide to Git

All the Data Science and Machine Learning Resources

210 Machine Learning Projects

30 days of Machine Learning Ops

Projects Videos —

Subscribe today!

Ignito

Excited to share that we have launched our Youtube channel — Ignito to cover all the projects and coding exercise for …

www.youtube.com

Tech Newsletter —

If you are interested, you can join my newsletter through which I send tech interview tips, techniques, patterns, hacks — Software Development, ML, Data Science, Startups and Technology projects to more than 30K readers. You can subscribe to Tech Brew :

Ignito

Data Science, ML, AI and more… Click to read Ignito, by Naina Chaturvedi, a Substack publication. Launched 7 months…

naina0405.substack.com

Tensorflow is an open source platform for machine learning and deep learning developed by Google Brain Team and written in C++, Python, and CUDA created for large numerical computations and deep learning. It ingests the data in the form of tensors which are nothing but multi-dimensional arrays of higher dimensions to handle large amounts of data. It works on the data flow graphs that have nodes and edges and supports both CPUs and GPUs. It works by preprocessing the data, building the model, training and estimating the model.

A good reference to Tensorflow ( used in this project as well ) —

Machine learning education | TensorFlow

When beginning your educational path, it’s important to first understand how to learn ML. We’ve broken the learning…

www.tensorflow.org

In this project we are going to learn how to use Tensorflow to perform natural language processing tasks with a project. The data for this project can be found here —

Tweet Emotion Detection

Your task is to predict which one of four emotions is expressed by a tweet.

www.kaggle.com

Import necessary libraries

import tensorflow as tf
import numpy as np
import matplotlib.pyplot as plt
%matplotlib inline

import nlp
import random
from tensorflow.keras.preprocessing.text import Tokenizer
from tensorflow.keras.preprocessing.sequence import pad_sequences

def show_history(h):
    epochs_trained = len(h.history['loss'])
    plt.figure(figsize=(16, 6))

plt.subplot(1, 2, 1)
    plt.plot(range(0, epochs_trained), h.history.get('accuracy'), label='Training')
    plt.plot(range(0, epochs_trained), h.history.get('val_accuracy'), label='Validation')
    plt.ylim([0., 1.])
    plt.xlabel('Epochs')
    plt.ylabel('Accuracy')
    plt.legend()

plt.subplot(1, 2, 2)
    plt.plot(range(0, epochs_trained), h.history.get('loss'), label='Training')
    plt.plot(range(0, epochs_trained), h.history.get('val_loss'), label='Validation')
    plt.xlabel('Epochs')
    plt.ylabel('Loss')
    plt.legend()
    plt.show()

def show_confusion_matrix(y_true, y_pred, classes):
    from sklearn.metrics import confusion_matrix

    cm = confusion_matrix(y_true, y_pred, normalize='true')

plt.figure(figsize=(8, 8))
    sp = plt.subplot(1, 1, 1)
    ctx = sp.matshow(cm)
    plt.xticks(list(range(0, 6)), labels=classes)
    plt.yticks(list(range(0, 6)), labels=classes)
    plt.colorbar(ctx)
    plt.show()

Importing Data

dataset = nlp.load_dataset('emotion')
train = dataset['train']
val = dataset['validation']
test = dataset['test']
def gt(data):
  tweets = [x['text'] for x in data]
  labels = [x['label'] for x in data]
  return tweets, labels
tweets, labels = gt(train)
tweets[2],labels[2]

Output —

('im grabbing a minute to post i feel greedy wrong', 'anger')

Tokenizer

tokenizer = Tokenizer(num_words=10000, oov_token ='<UNK>')
tokenizer.fit_on_texts(tweets)
tokenizer.texts_to_sequences([tweets[1]])

tweets[2]

Output —

'im grabbing a minute to post i feel greedy wrong'

Padding and Truncating Sequences

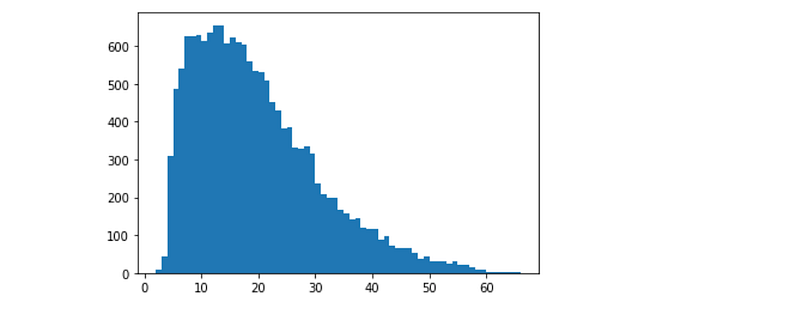

lengths = [len(t.split(' ')) for t in tweets]
plt.hist(lengths,bins = len(set(lengths)))
plt.show()

Output —

maxlen = 50
def gs(tokenizer,tweets):
  seq = tokenizer.texts_to_sequences(tweets)
  padded = pad_sequences(seq,truncating='post',padding = 'post',maxlen=maxlen)
  return padded
padded_train_seq = gs(tokenizer,tweets)
padded_train_seq[0]

Output —

array([  2, 139,   3, 679,   0,   0,   0,   0,   0,   0,   0,   0,   0, 0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0], dtype=int32)

Preparing Labels

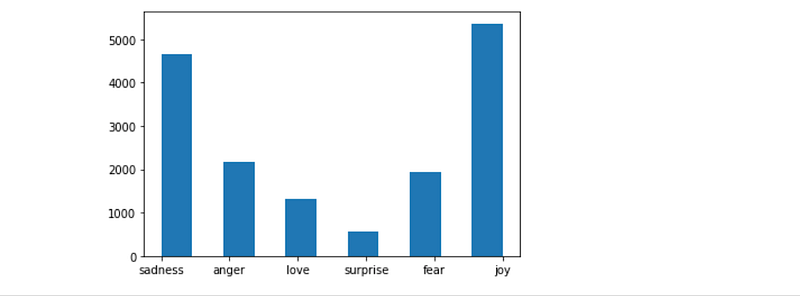

classes = set(labels)
plt.hist(labels, bins=11)
plt.show()

Output —

class_to_index = dict((c,i) for i,c in enumerate(classes))
index_to_class = dict((v,k) for k,v in class_to_index.items())
print(class_to_index)
print(index_to_class)
names_to_ids = lambda labels: np.array([class_to_index.get(x) for x in labels])
train_labels = names_to_ids(labels)

Output —

{'joy': 0, 'fear': 1, 'love': 2, 'surprise': 3, 'anger': 4, 'sadness': 5}
{0: 'joy', 1: 'fear', 2: 'love', 3: 'surprise', 4: 'anger', 5: 'sadness'}

Creating and Training RNN Model

model = tf.keras.models.Sequential([
                                    tf.keras.layers.Embedding(10000,16,input_length= maxlen),
                                    tf.keras.layers.Bidirectional(tf.keras.layers.LSTM(20,return_sequences=True)),
                                    tf.keras.layers.Bidirectional(tf.keras.layers.LSTM(20)),
                                    tf.keras.layers.Dense(6,activation='softmax')
])

model.compile(

       loss = 'sparse_categorical_crossentropy',
       optimizer = 'adam',
       metrics = ['accuracy']

model.summary()

Output —

Model: "sequential"
_________________________________________________________________
 Layer (type)                Output Shape              Param #
=================================================================
 embedding (Embedding)       (None, 50, 16)            160000

 bidirectional (Bidirectiona  (None, 50, 40)           5920
 l)

 bidirectional_1 (Bidirectio  (None, 40)               9760
 nal)

 dense (Dense)               (None, 6)                 246

=================================================================
Total params: 175,926
Trainable params: 175,926
Non-trainable params: 0
_________________________________________________________________

Training —

vt, vl = gt(val)
vs = gs(tokenizer,vt)
vl = names_to_ids(vl)
h = model.fit(

       padded_train_seq, train_labels,
       validation_data = (vs,vl),
       epochs = 20,
       callbacks = [
                    tf.keras.callbacks.EarlyStopping(monitor ='val_accuracy',patience = 2)
       ]

Output —

Epoch 1/20
500/500 [==============================] - 50s 78ms/step - loss: 1.3148 - accuracy: 0.4819 - val_loss: 0.8473 - val_accuracy: 0.6855
Epoch 2/20
500/500 [==============================] - 38s 76ms/step - loss: 0.6071 - accuracy: 0.7489 - val_loss: 0.5698 - val_accuracy: 0.7660
Epoch 3/20
500/500 [==============================] - 38s 76ms/step - loss: 0.3830 - accuracy: 0.8587 - val_loss: 0.4630 - val_accuracy: 0.8545
Epoch 4/20
500/500 [==============================] - 38s 76ms/step - loss: 0.2383 - accuracy: 0.9237 - val_loss: 0.3943 - val_accuracy: 0.8735
Epoch 5/20
500/500 [==============================] - 38s 75ms/step - loss: 0.1643 - accuracy: 0.9469 - val_loss: 0.4174 - val_accuracy: 0.8750
Epoch 6/20
500/500 [==============================] - 38s 75ms/step - loss: 0.1266 - accuracy: 0.9587 - val_loss: 0.3923 - val_accuracy: 0.8760
Epoch 7/20
500/500 [==============================] - 37s 75ms/step - loss: 0.0960 - accuracy: 0.9695 - val_loss: 0.4180 - val_accuracy: 0.8800
Epoch 8/20
500/500 [==============================] - 38s 75ms/step - loss: 0.0866 - accuracy: 0.9726 - val_loss: 0.3984 - val_accuracy: 0.8815
Epoch 9/20
500/500 [==============================] - 38s 75ms/step - loss: 0.0906 - accuracy: 0.9725 - val_loss: 0.4054 - val_accuracy: 0.8855
Epoch 10/20
500/500 [==============================] - 38s 76ms/step - loss: 0.0652 - accuracy: 0.9794 - val_loss: 0.4151 - val_accuracy: 0.8850
Epoch 11/20
500/500 [==============================] - 38s 75ms/step - loss: 0.0797 - accuracy: 0.9744 - val_loss: 0.3693 - val_accuracy: 0.8945
Epoch 12/20
500/500 [==============================] - 38s 75ms/step - loss: 0.0586 - accuracy: 0.9822 - val_loss: 0.3849 - val_accuracy: 0.8965
Epoch 13/20
500/500 [==============================] - 38s 75ms/step - loss: 0.0402 - accuracy: 0.9869 - val_loss: 0.3834 - val_accuracy: 0.9005
Epoch 14/20
500/500 [==============================] - 38s 75ms/step - loss: 0.0355 - accuracy: 0.9877 - val_loss: 0.4057 - val_accuracy: 0.8965
Epoch 15/20
500/500 [==============================] - 38s 75ms/step - loss: 0.0345 - accuracy: 0.9882 - val_loss: 0.4259 - val_accuracy: 0.8935

Model Evaluation

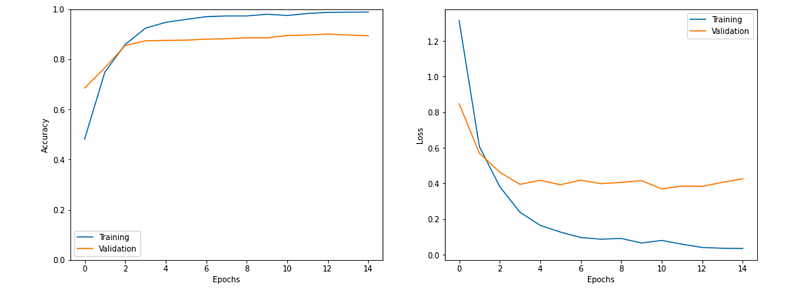

show_history(h)

Output —

Learnings —

How to use NLP, tokenizer, deal with Sequences in TensorFlow and create and train a Recurrent Neural Network.

Day 43: Coming soon!

Follow and Stay tuned. Keep coding :)
