Learning Android Development

Android Image StartCrop and EndCrop Scaling

Complete the possible default scaling type possibly need

If you have learned all the possible ScaleType available on image provided by Android (as per the blog below), you might realize there’s are possible scaletypes it doesn’t have.

Android ImageView ScaleType Fully Illustrated

Clear all confusion of Android Image ScaleType

medium.com

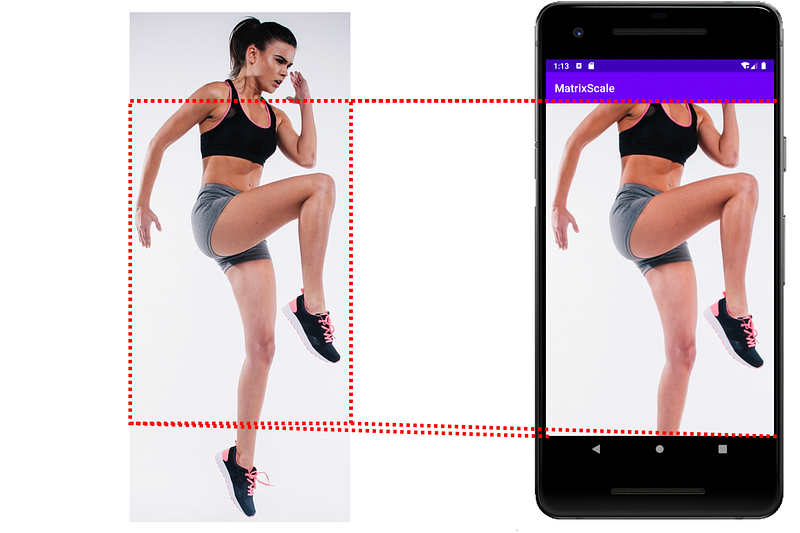

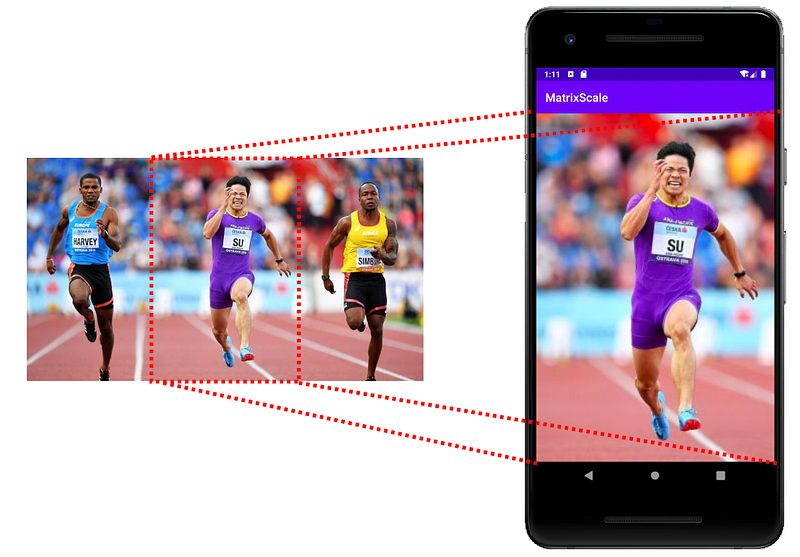

It has CenterCrop scaling, where one can scale the image to fit to ensure all the views are filled with image, where either the top-bottom or the sides are matching the view.

Two examples are given below

However, at times, we want to Crop the start (top or left) and the end (bottom or right) of the image accordingly. There’s no available out of box scale type to do that.

Matrix Scale Type came to rescue

The good news is, we can do so using the Matrix Scale transformation. To understand it, you can refer to the below article.

Android Matrix ScaleType Explained

Making a custom scaling transformation on Android Image

medium.com

But if you are just interested in how to setup Start Crop or End Crop, just read the below.

Start Crop

To perform a Start Crop, one needs to get the minimal scale needed to get the image fully fill up the view bound.

val drawable = image_picture.drawable ?: return
val viewWidth: Float = getImageViewWidth(image_picture).toFloat()
val viewHeight: Float = getImageViewHeight(image_picture).toFloat()
val drawableWidth = drawable.intrinsicWidth
val drawableHeight = drawable.intrinsicHeight

val widthScale = viewWidth / drawableWidth
val heightScale = viewHeight / drawableHeight
val scale = widthScale.coerceAtLeast(heightScale)

Then after that just scale it accordingly.

// Start Crop
baseMatrix.reset()
baseMatrix.postScale(scale, scale)
image_picture.imageMatrix = baseMatrix

By default, the image will be aligned top or left, depends if the image is tall or long.

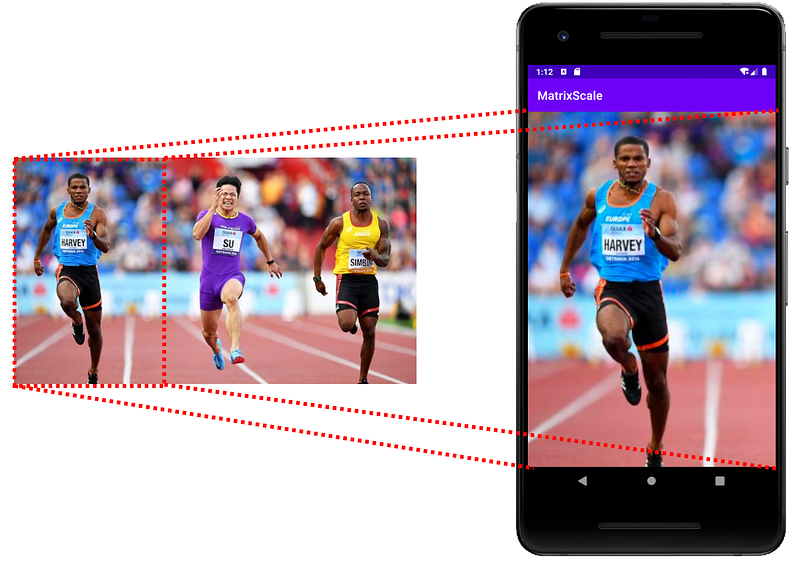

For a Long Image, StartCrop will show the left section

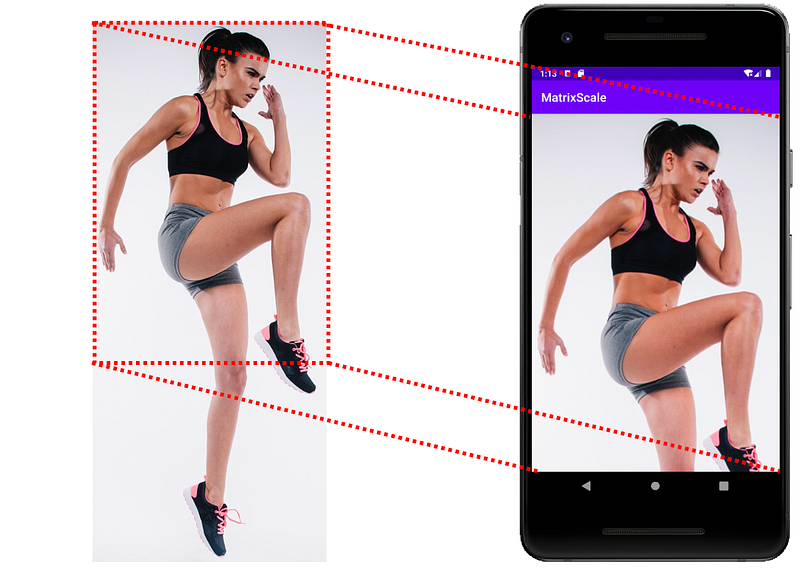

For a Tall Image, StartCrop will show the top section

End Crop

To perform an End Crop, one needs to get the minimal scale needed to get the image fully fill up the view bound as well.

val drawable = image_picture.drawable ?: return
val viewWidth: Float = getImageViewWidth(image_picture).toFloat()
val viewHeight: Float = getImageViewHeight(image_picture).toFloat()
val drawableWidth = drawable.intrinsicWidth
val drawableHeight = drawable.intrinsicHeight

val widthScale = viewWidth / drawableWidth
val heightScale = viewHeight / drawableHeight
val scale = widthScale.coerceAtLeast(heightScale)

Then after that just scale it accordingly, and also translating the image to the end of the image (bottom-right).

// End Crop
baseMatrix.reset()
val scale = widthScale.coerceAtLeast(heightScale)
baseMatrix.postScale(scale, scale)
baseMatrix.postTranslate(
    (viewWidth - drawableWidth * scale),
    (viewHeight - drawableHeight * scale)
)
image_picture.imageMatrix = baseMatrix

After the matrix transformation, now we get the EndCrop as below.

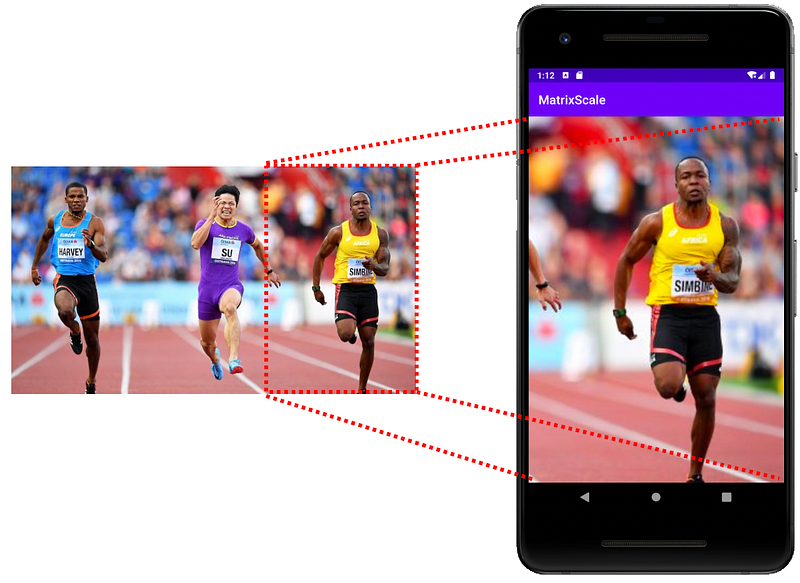

For Long Image, EndCrop will show the right section

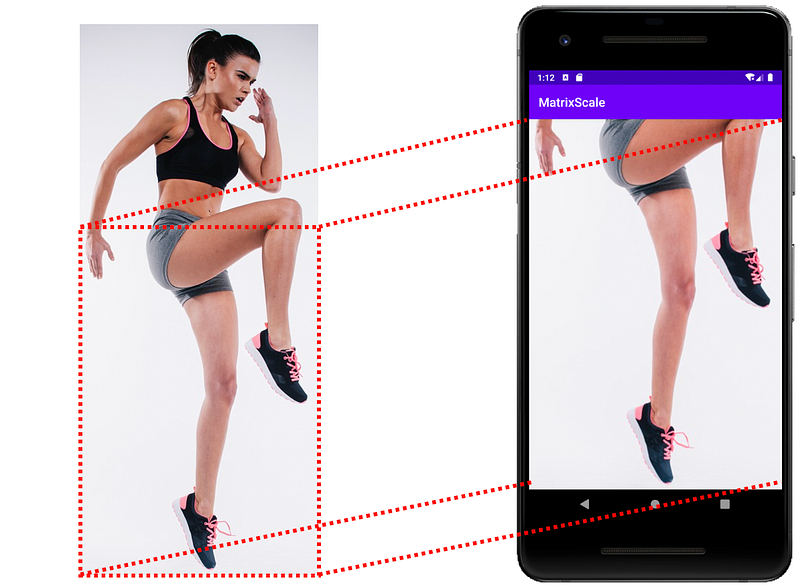

For Tall Image, EndCrop will show the bottom section

Nice, now you can have StartCrop and EndScrop scaling as well.

You can get the example app code to experiment with it. In the code, it also has all the other scale types implemented using Matrix ScaleType transformation.

If you find the above interested, and like to explore how to move around the images by touch, check out
