Python — Time Series Data with Pandas
Numeric, categorical and time series data are the types of data that we commonly dealt with as part of exploratory data analysis. In this article I will go through some basic operations with time series data.
The notebook for this article can be found here.
Generating Time Series Data
# Generate data with time
ts = pd.Series(np.random.rand(100), index=pd.date_range(datetime.now(), periods=100))ts2020-11-30 08:53:58.271878 0.566087
2020-12-01 08:53:58.271878 0.906584
2020-12-02 08:53:58.271878 0.512919
2020-12-03 08:53:58.271878 0.878789
2020-12-04 08:53:58.271878 0.942902
...
2021-03-05 08:53:58.271878 0.983846
2021-03-06 08:53:58.271878 0.289516
2021-03-07 08:53:58.271878 0.840058
2021-03-08 08:53:58.271878 0.519680
2021-03-09 08:53:58.271878 0.506116
Freq: D, Length: 100, dtype: float64To remove the time, set normalize to True.
# Generate data without time (normalize = True)
ts = pd.Series(np.random.rand(100), index=pd.date_range(datetime.now(), periods=100, normalize=True))ts2020-11-30 0.403108
2020-12-01 0.386055
2020-12-02 0.904074
2020-12-03 0.705386
2020-12-04 0.527159
...
2021-03-05 0.271150
2021-03-06 0.851113
2021-03-07 0.778842
2021-03-08 0.380553
2021-03-09 0.552797
Freq: D, Length: 100, dtype: float64You can also generate for different frequencies. Refer to the frequency offset aliases.
E.g. to generate data for business month
# You can generate data using different frequency offset alias
# https://pandas.pydata.org/pandas-docs/stable/user_guide/timeseries.html#offset-aliases
# BM - business month end
pd.date_range(start=dt, end=dt+timedelta(days=365), freq='BM')DatetimeIndex(['2020-11-30', '2020-12-31', '2021-01-29', '2021-02-26','2021-03-31', '2021-04-30', '2021-05-31', '2021-06-30','2021-07-30', '2021-08-31', '2021-09-30', '2021-10-29'], dtype='datetime64[ns]', freq='BM')Generate time series for every 90 minutes,
# Every 90 minutes
pd.date_range(start=dt, end=dt+timedelta(days=3), freq='1H30T')DatetimeIndex(['2020-11-29 00:00:00', '2020-11-29 01:30:00',
'2020-11-29 03:00:00', '2020-11-29 04:30:00',
'2020-11-29 06:00:00', '2020-11-29 07:30:00',
'2020-11-29 09:00:00', '2020-11-29 10:30:00',
'2020-11-29 12:00:00', '2020-11-29 13:30:00',
'2020-11-29 15:00:00', '2020-11-29 16:30:00',
'2020-11-29 18:00:00', '2020-11-29 19:30:00',
'2020-11-29 21:00:00', '2020-11-29 22:30:00',
'2020-11-30 00:00:00', '2020-11-30 01:30:00',
'2020-11-30 03:00:00', '2020-11-30 04:30:00',
'2020-11-30 06:00:00', '2020-11-30 07:30:00',
'2020-11-30 09:00:00', '2020-11-30 10:30:00',
'2020-11-30 12:00:00', '2020-11-30 13:30:00',
'2020-11-30 15:00:00', '2020-11-30 16:30:00',
'2020-11-30 18:00:00', '2020-11-30 19:30:00',
'2020-11-30 21:00:00', '2020-11-30 22:30:00',
'2020-12-01 00:00:00', '2020-12-01 01:30:00',
'2020-12-01 03:00:00', '2020-12-01 04:30:00',
'2020-12-01 06:00:00', '2020-12-01 07:30:00',
'2020-12-01 09:00:00', '2020-12-01 10:30:00',
'2020-12-01 12:00:00', '2020-12-01 13:30:00',
'2020-12-01 15:00:00', '2020-12-01 16:30:00',
'2020-12-01 18:00:00', '2020-12-01 19:30:00',
'2020-12-01 21:00:00', '2020-12-01 22:30:00',
'2020-12-02 00:00:00'],
dtype='datetime64[ns]', freq='90T')Handling Time Zone
Time zone conversion using tz_localize
# Convert to UTC
ts_utc = ts.tz_localize('UTC')
print(ts_utc.index.tz)# Convert to other time zones
ts_sgt = ts.tz_localize('Asia/Singapore')
print(ts_sgt.index.tz)ts_london = ts.tz_localize('Europe/London')
print(ts_london.index.tz)To convert between time zones,
# Convert between timezone
utc_time = pd.Timestamp('2020-12-01 06:00', tz='utc')
print(f"UTC time {utc_time}")
shanghai_time = utc_time.tz_convert('Asia/Shanghai')
print(f"Shanghai time: {shanghai_time}")UTC time 2020-12-01 06:00:00+00:00
Shanghai time: 2020-12-01 14:00:00+08:00Resampling
You can resample your time series data
E.g. resample the following time series data in days to either monthly or quarterly.
dt_ranges = pd.date_range(datetime.now(), periods=365, freq='D', normalize=True)
ts = pd.Series(np.random.randn(len(dt_ranges)), index=dt_ranges)
ts2020-11-30 -0.324954
2020-12-01 -1.149071
2020-12-02 -1.766691
2020-12-03 1.114326
2020-12-04 0.454338
...
2021-11-25 -0.363843
2021-11-26 0.815752
2021-11-27 2.276535
2021-11-28 0.964677
2021-11-29 1.079887
Freq: D, Length: 365, dtype: float64Resample to monthly,
# Roll up to month
ts.resample('M').sum()2020-11-30 -0.324954
2020-12-31 1.414100
2021-01-31 4.912475
2021-02-28 -1.587236
2021-03-31 -7.061592
2021-04-30 8.470704
2021-05-31 -3.302751
2021-06-30 9.050472
2021-07-31 3.256410
2021-08-31 7.495364
2021-09-30 4.506512
2021-10-31 6.600639
2021-11-30 0.966138
Freq: M, dtype: float64Resample to quarterly,
# Roll up to quarter
ts.resample('Q').sum()2020-12-31 1.089146
2021-03-31 -3.736353
2021-06-30 14.218426
2021-09-30 15.258287
2021-12-31 7.566778
Freq: Q-DEC, dtype: float64Downsampling
You can down sample your data, e.g. from every 1 minute to every 5 minutes.
Generate data for every 1 minute,
dt_ranges = pd.date_range(datetime.now(), periods=100, freq='T', normalize=True)
ts = pd.Series(np.random.randn(len(dt_ranges)), index=dt_ranges)
ts2020-11-30 00:00:00 0.088538
2020-11-30 00:01:00 0.632649
2020-11-30 00:02:00 1.060944
2020-11-30 00:03:00 -1.153388
2020-11-30 00:04:00 -0.363503
...
2020-11-30 01:35:00 -2.070810
2020-11-30 01:36:00 1.414299
2020-11-30 01:37:00 -0.337969
2020-11-30 01:38:00 0.076367
2020-11-30 01:39:00 -0.744389
Freq: T, Length: 100, dtype: float64Down sample to every 5 minutes,
ts.resample('5min', closed='right', label='right').sum()2020-11-30 00:00:00 0.088538
2020-11-30 00:05:00 -1.234836
2020-11-30 00:10:00 -0.531198
2020-11-30 00:15:00 -0.723730
2020-11-30 00:20:00 2.609681
2020-11-30 00:25:00 4.472404
2020-11-30 00:30:00 -1.870135
2020-11-30 00:35:00 -1.153896
2020-11-30 00:40:00 1.737836
2020-11-30 00:45:00 1.967800
2020-11-30 00:50:00 -1.921246
2020-11-30 00:55:00 1.024230
2020-11-30 01:00:00 -1.191950
2020-11-30 01:05:00 -0.739175
2020-11-30 01:10:00 0.383030
2020-11-30 01:15:00 1.728960
2020-11-30 01:20:00 -1.539351
2020-11-30 01:25:00 1.180227
2020-11-30 01:30:00 -2.921451
2020-11-30 01:35:00 -0.144566
2020-11-30 01:40:00 0.408309

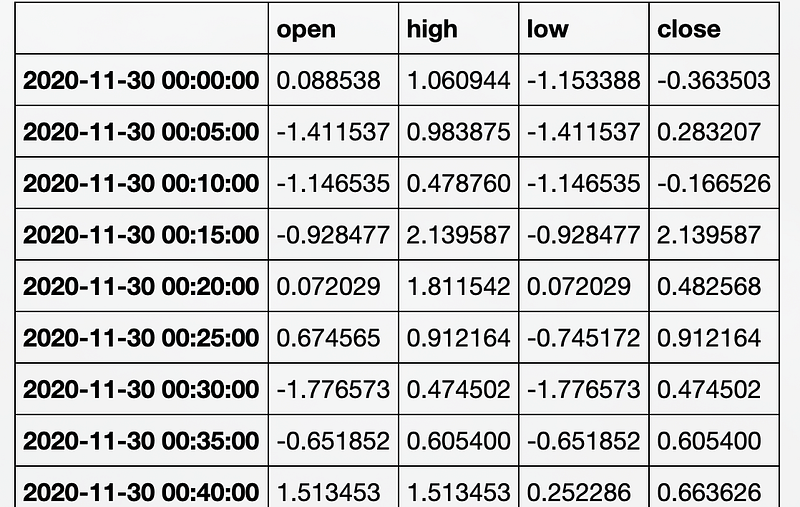

Freq: 5T, dtype: float64You can also use the OHLC method.
# OHLC resampling
ts.resample('5min').ohlc()
Upsampling
Generate a monthly time series data.
dt_ranges = pd.date_range(datetime.now(), periods=12, freq='M', normalize=True)
ts = pd.Series(np.random.randn(len(dt_ranges)), index=dt_ranges)
ts2020-11-30 0.422532
2020-12-31 0.116354
2021-01-31 -0.723405
2021-02-28 0.659457
2021-03-31 0.535598
2021-04-30 2.306383
2021-05-31 1.431278
2021-06-30 0.269275
2021-07-31 0.375808
2021-08-31 0.816700
2021-09-30 0.227021
2021-10-31 -0.269146
Freq: M, dtype: float64Upsample to daily with forward fill.
ts.resample('D').ffill()2020-11-30 0.422532
2020-12-01 0.422532
2020-12-02 0.422532
2020-12-03 0.422532
2020-12-04 0.422532
...
2021-10-27 0.227021
2021-10-28 0.227021
2021-10-29 0.227021
2021-10-30 0.227021
2021-10-31 -0.269146
Freq: D, Length: 336, dtype: float64Moving Average
Generate a daily time series data over a period of 30 days.
dt_ranges = pd.date_range(datetime.now(), periods=30, freq='D', normalize=True)
ts = pd.Series(np.random.randint(150,200, len(dt_ranges)), index=dt_ranges)
ts2020-11-30 161
2020-12-01 165
2020-12-02 174
2020-12-03 195
2020-12-04 156
2020-12-05 154
2020-12-06 173
2020-12-07 150
2020-12-08 176
2020-12-09 184
2020-12-10 153
2020-12-11 197
2020-12-12 177
2020-12-13 170
2020-12-14 183
2020-12-15 199
2020-12-16 160
2020-12-17 172
2020-12-18 154
2020-12-19 196
2020-12-20 152
2020-12-21 186
2020-12-22 173
2020-12-23 155
2020-12-24 176
2020-12-25 196
2020-12-26 195
2020-12-27 164
2020-12-28 172
2020-12-29 193

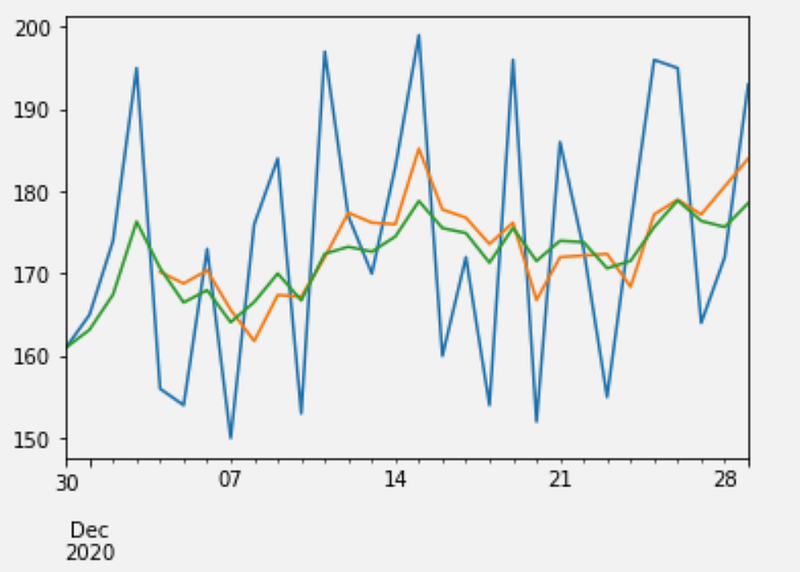

Freq: D, dtype: int64Plot the moving average and exponential weighted moving average.
ts.plot()
ts.rolling(5).mean().plot()
ts.ewm(5).mean().plot()
