How To Log NestJS Applications in a Distributed System with EFK Stack in Kubernetes — Part 3

Collecting Logs with fluentbit and showing them in Kibana

In one of my latest articles, I explained the importance of Centralized Logging. I demonstrated how you could realize custom logging in a NestJs application using winston and described the central role of fluentbit.

In this article I want to show you how you can collect custom and stdout logs, push them into an Elasticsearch database, and visualize them in Kibana.

Creating a Kubernetes Cluster for Local Use

To become more experienced with Kubernetes and improve our workflow, installing a local Kubernetes environment is key. For this, I use kind in most cases. Check out one of my articles to become familiar with kind.

We can use the following configuration file to configure a local Kubernetes cluster with one control-plane and three worker-nodes.

# kind.config.yaml

kind: Cluster
apiVersion: kind.x-k8s.io/v1alpha4
name: nestjs-logging
nodes:
- role: control-plane
- role: worker
- role: worker
- role: worker

Now we can start the Kubernetes cluster through kind with the following command.

kind create cluster --config=kind.config.yaml

After initialization of the cluster, the .kubeconfig will automatically be appended to the profile directory, so we can run kubectl commands like kubectl get pods -A.

After we finish our work, we can delete the cluster with the following command.

kind delete cluster --name nestjs-logging

Creating a local Kubernetes cluster will be the basis for this article. We have to ensure that Docker and kind are installed, as well as kubectl CLI and Helm.

Collecting stdout logs with EFK Stack in Kubernetes

Collecting stdout logs is very simple with EFK and Helm, because the helm charts are preconfigured. So, elasticsearch, fluentbit, and Kibana are already connected out of the box.

After we have created a local Kubernetes cluster with kind, we can deploy the EFK charts on it using the following commands.

helm repo add elastic https://helm.elastic.co
helm repo update

helm install elasticsearch elastic/elasticsearch --version 7.17.3
helm install kibana elastic/kibana --version 7.17.3
helm install fluent-bit fluent/fluent-bit --version 0.21.1

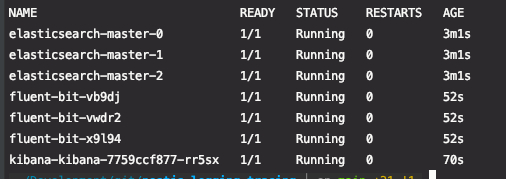

After a few seconds, we can see running pods in the default namespace with kubectl get pods.

To access the Kibana UI, run the following command to forward Kibana’s default port 5601 to port 8080 for local use.

kubectl port-forward service/kibana-kibana 8080:5601

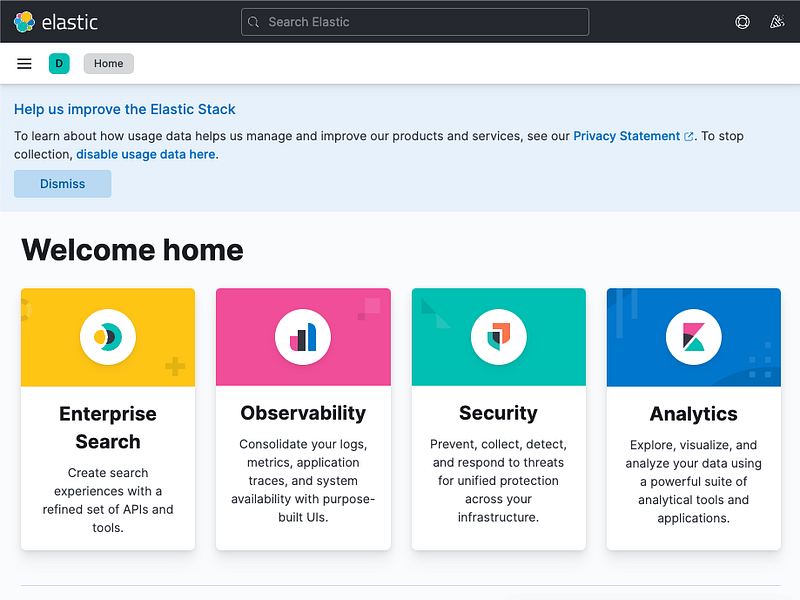

Now we can hit http://localhost:8080/ in our browser to access Kibana.

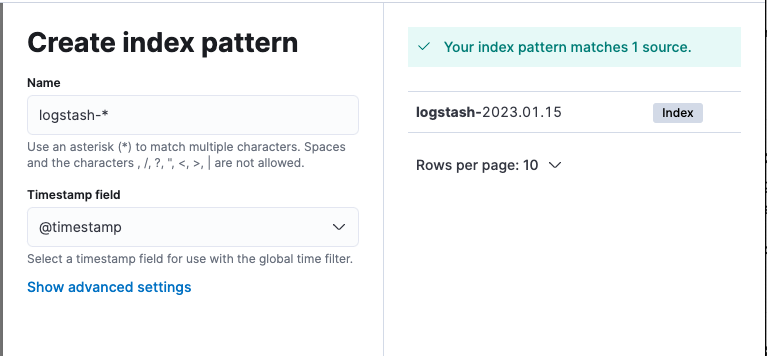

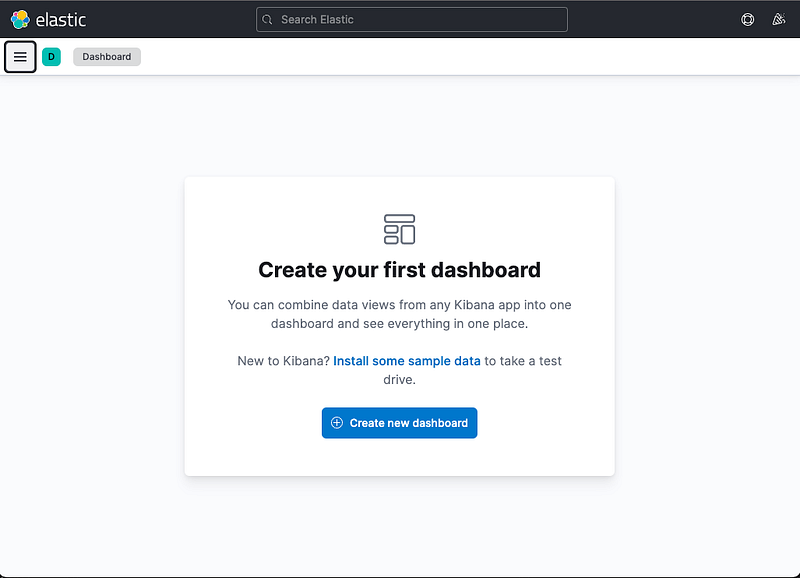

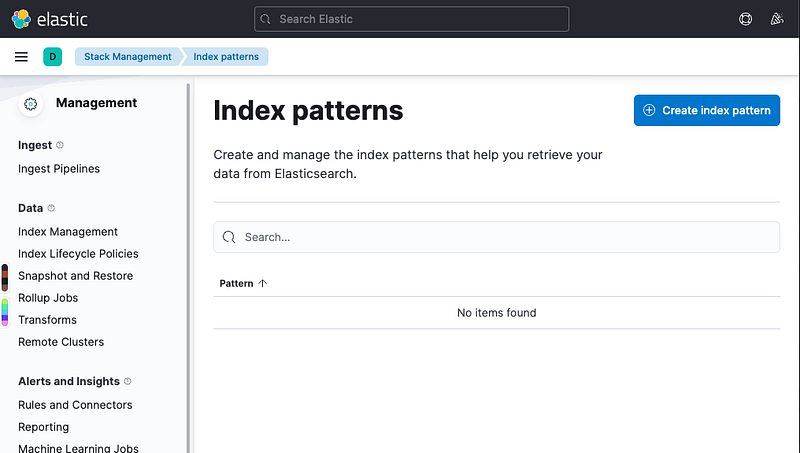

After opening the sidebar and navigating to Management > Stack Management > Kibana > Index Pattern > Create index pattern, we can create an Index Pattern to filter incoming logs.

We could create a wildcard with logstash-* to view all incoming logs.

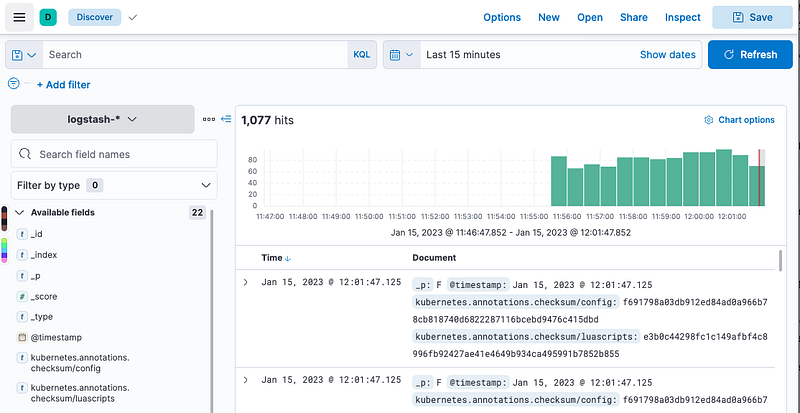

After this, we need to navigate to Analytics > Discover. There we can see all the logs of our local Kubernetes cluster.

To filter by certain criteria, we can either use the filter bar on the left or familiarize ourselves with KQL to use the search bar.

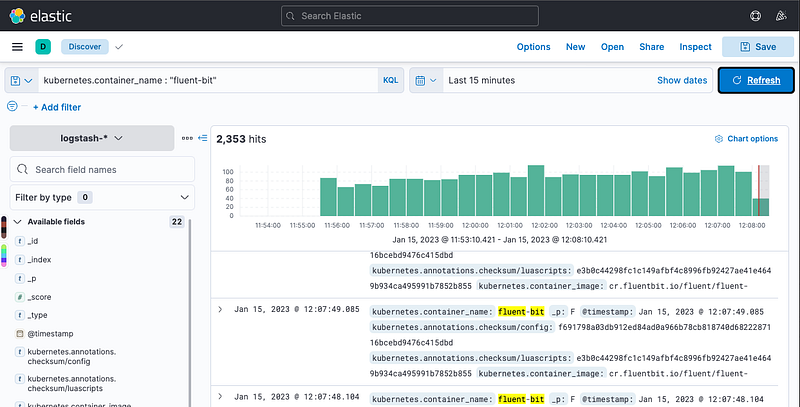

For example, to evaluate the logs of a particular container, we can use kubernetes.container_name : “fluent-bit” as KQL. This is especially useful when there are multiple pods of the same container, as in a DaemonSets.

To delete all created dependencies, we can run the following command. For the custom-log approach below, we will build a separate helm chart.

helm uninstall fluent-bit
helm uninstall kibana
helm uninstall elasticsearch

Collecting custom logs with EFK Stack in Kubernetes with a Sidecar

The other way is using a sidecar pattern and running a log-forwarding container next to the application container within the same pod. We need to use this pattern because winston writes its logs to the filesystem. Also, sidecars extend the functionality of a main container without changing it. The application logs will be transferred to the Elasticsearch database via a fluentbit sidecar container.

The logs of the main container are shared with the sidecar container via an emptyDir Volume.

apiVersion: apps/v1
kind: Deployment
# ...
spec:
  template:
    spec:
      containers:
         - name: main-container
           # ...
           volumeMounts:
            - name: log-volume
              mountPath: /usr/app/logs
         - name: sidecar-container
           # ...
           volumeMounts:
            - name: log-volume
              mountPath: /usr/app/logs
      # ...
      volumes:
        - name: log-volume
          emptyDir: { }

Deploy the EFK Stack and two NestJS microservices

After we have created a local Kubernetes cluster with kind (see above), we can use a custom helm chart to deploy the EFK Stack and two NestJS microservices that generate some custom logs. The deployment can be found here.

To install this chart we need to run the following command.

helm upgrade --install efk efk

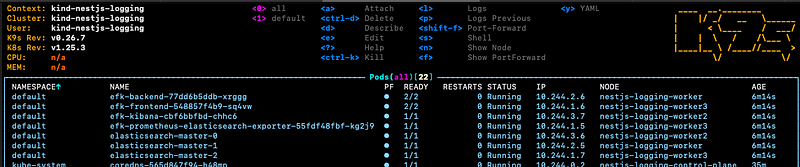

Now many different pods get spawned.

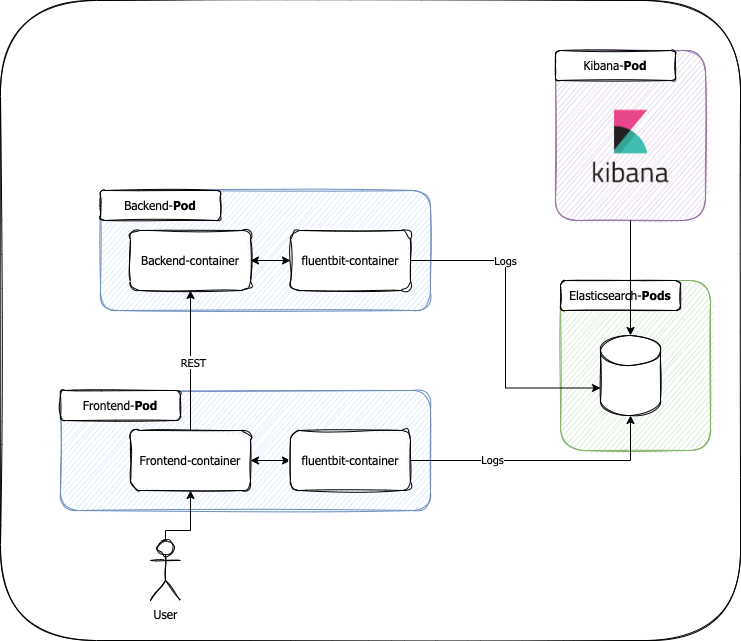

The connections between these microservices are shown in this architecture overview.

So, our frontend and backend service write logs to /usr/apps/logs in the filesystem. The task of our sidecar is to take these logs and send them on. For this we use a simple fluentbit container.

apiVersion: apps/v1
kind: Deployment
# ...
spec:
  template:
    spec:
      containers:
        - name: main-container-with-winston
          # ...
          volumeMounts:
          - name: log-volume
            mountPath: /usr/app/logs
          # ...
        - name: fluentbit
          image: "fluent/fluent-bit:2.0.8-debug"
          ports:
            - name: metrics
              containerPort: 2020
              protocol: TCP
          env:
            - name: FLUENT_UID
              value: "0"
          volumeMounts:
            - name: config-volume
              mountPath: /fluent-bit/etc/
            - name: log-volume
              mountPath: /usr/app/logs
      volumes:
        - name: log-volume
          emptyDir: { }
        - name: config-volume
          configMap:
            name: fluentbit-sidecar

Like a fluenbit DaemonSet the container needs a configuration mounted via a ConfigMap.

# sidecar.configmap.yaml

kind: ConfigMap
apiVersion: v1
metadata:
  name: fluentbit-sidecar
data:
  fluent-bit.conf: |
    [SERVICE]
        HTTP_Server    On
        HTTP_Listen    0.0.0.0
        HTTP_PORT      2020
        Flush          1
        Daemon         Off
        Log_Level      warn
        Parsers_File   parsers.conf

    [INPUT]
        Name tail
        Path /usr/app/logs/*.log
        multiline.parser docker, cri
        Tag custom.*
        Mem_Buf_Limit 300MB
        Skip_Long_Lines On

    [FILTER]
        Name         parser
        Parser       docker
        Match        custom.*
        Key_Name     log
        Reserve_Data On
        Preserve_Key On

    [FILTER]
        Name modify
        Match *

    [OUTPUT]
        Name es
        Match *
        Host elasticsearch-master
        Logstash_Format On
        Logstash_Prefix fluent_bit
        Retry_Limit False

  parsers.conf: |
    [PARSER]
        Name   docker
        Format json
        Time_Key time
        Time_Format %d/%b/%Y:%H:%M:%S %z
        Decode_Field_As   escaped_utf8    log    do_next
        Decode_Field_As   json       log

As we can see, the fluentbit container observes Paths usr/app/logs/*.log.

Very import is changing the [Output.Host] to the host of our needs. In this case, the host represents the Kubernetes Service of Elasticsearch with Port 9200.

We can further customize the output plugin by following the official documentation.

We could add more labels or label_keys. Or we could add a filter to add custom labels or service names.

[FILTER]
    Name modify
    Match *
    Add service_name database-service

After all pods are initialized, we can portforward the Kibana container from default port 5601 to port 8080 for local use.

# Portforward
kubectl port-forward service/efk-kibana 8080:5601

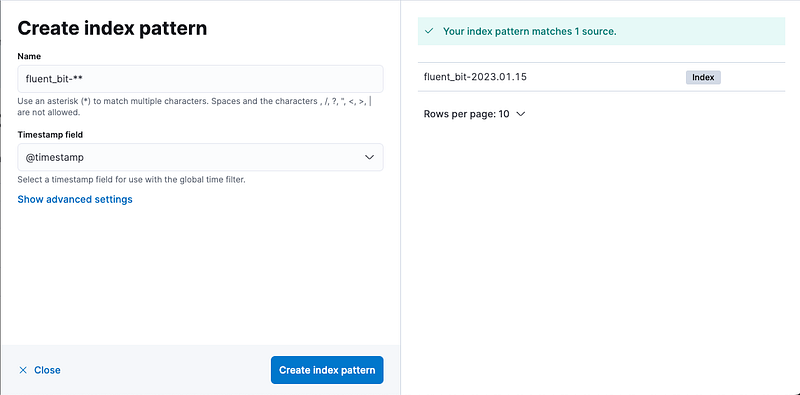

After opening the sidebar and navigating to Management > Stack Management > Kibana > Index Pattern > Create index pattern, we can create an Index Pattern to filter incoming logs. We could create a wildcard with fluent_bit-* to view all incoming logs.

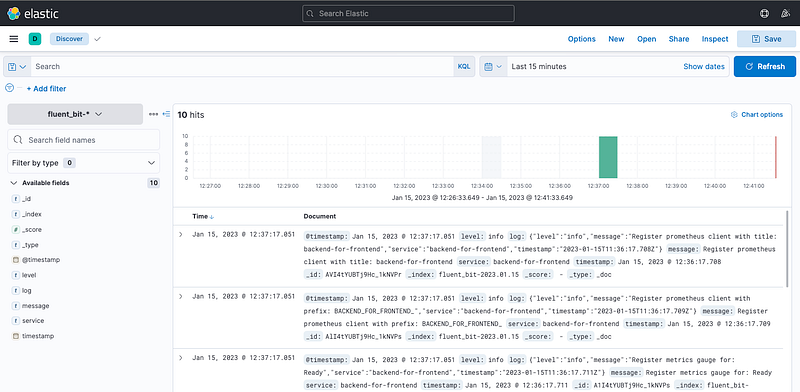

After this, we need to navigate to Analytics > Discover. There we can see the custom logs of our NestJS microservices.

We can also generate some error logs with the frontend and backend apps. For this, we need to portfoward the port of the frontend app to get access via localhost.

# portforward
kubectl port-forward service/efk-frontend-service 8081:80
# Open UI
open http://localhost:8081

This application gets some information about Star Wars from the backend app. To cause some errors, we need to hit the Cause an error button.

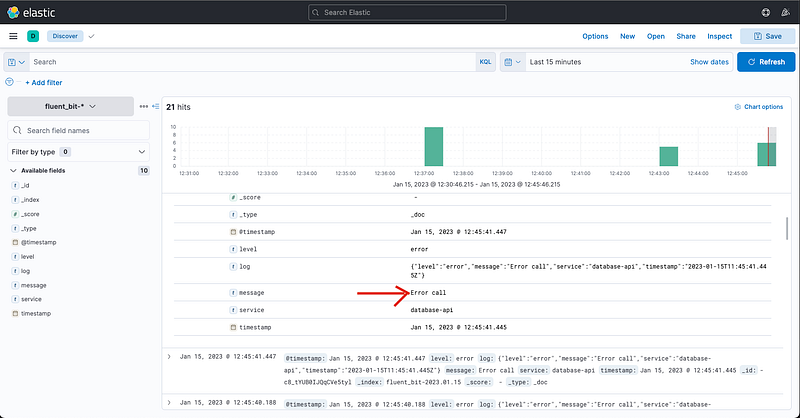

After refreshing the query in Kibana, we can see the error logs.

Note, you can create custom dashboards in Analytics > Dashboard to show only data fields with necessary information.

Kibana has so much going for it, which makes centralized logging far easier. All information about this can be found on the documentation page.

Conclusion

Logging has a central role in distributed systems, and in case of system failures, we want to have an overview to see which applications generate certain messages.

Fluentbit, Elasticsearch, and Kibana help us to generate this approach. With fluentbit we have the possibility to customize our logs via the output plugin. We can add additional labels and tags.

But consider that audit logs can be very noisy, and it can be very expensive to log all actions. For this, we can generate custom logs collected via a sidecar to fine-tune this approach for our environment.
