Flutter — WidgetBook Mono-Repo with Packages

I have started to look at building more widgets for animation, a new category of widgets, and this has led to a small architectural change to the DigestableLego project.

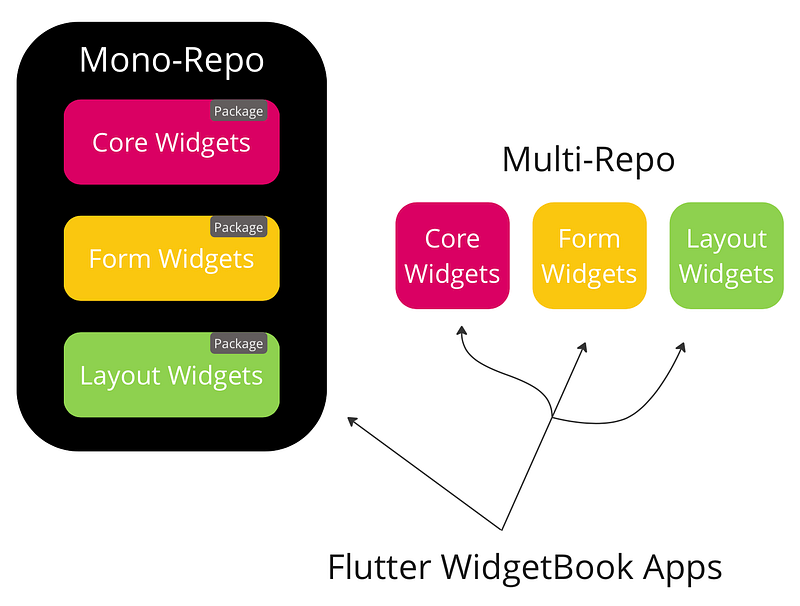

Instead of creating a new project with a new widget book for the animation widgets I’ve restructured the existing project to have a single WidgetBook (Mono -Repo) and support a number of packages, 1 for each category of widgets.

This makes it easy to develop, test and review widgets in a single project and include any of the packages in applications that need them.

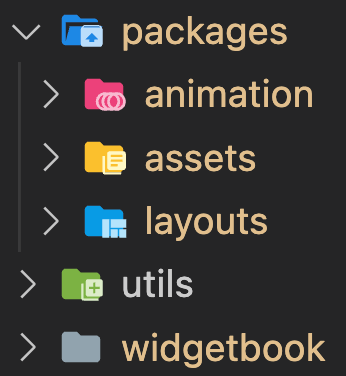

The project has the following directory structure:

Where:

Packages — A single package for each category of widgets
Utils — a package with supporting functions used to create widgets and run tests.
Widgetbook — The application used to display the widgets.

I have added three categories of widgets (packages) with the likely addition of others soon:

Accessibility — Make the app accessible.
Assets — Manage assets, display images, and show icons.
Forms — Form widgets used to capture user input.
Layouts — Screen layouts.
Motion — Scrolling (Parallax) and effects.
Painting — These widgets apply visual effects to the children without changing their layout, size, or position.
Stylin — Branding and appearance, typography, logo’s etc…

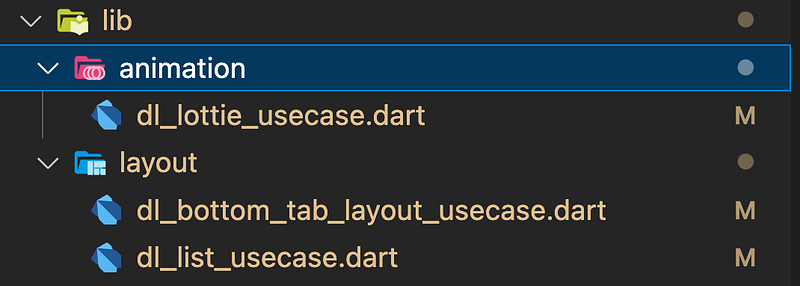

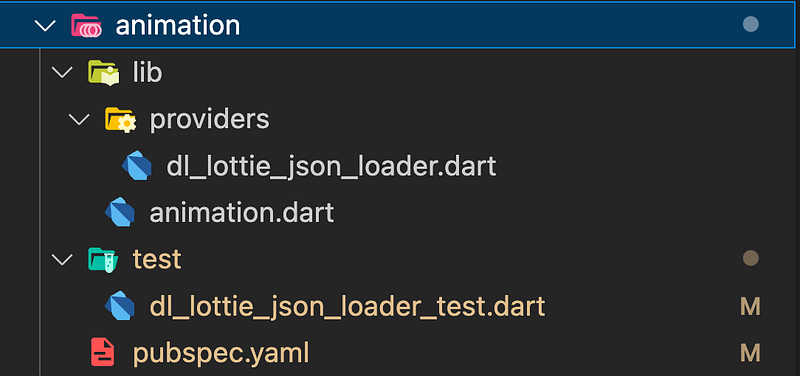

I create three files for each new widget, the widget, the widget test and the use case:

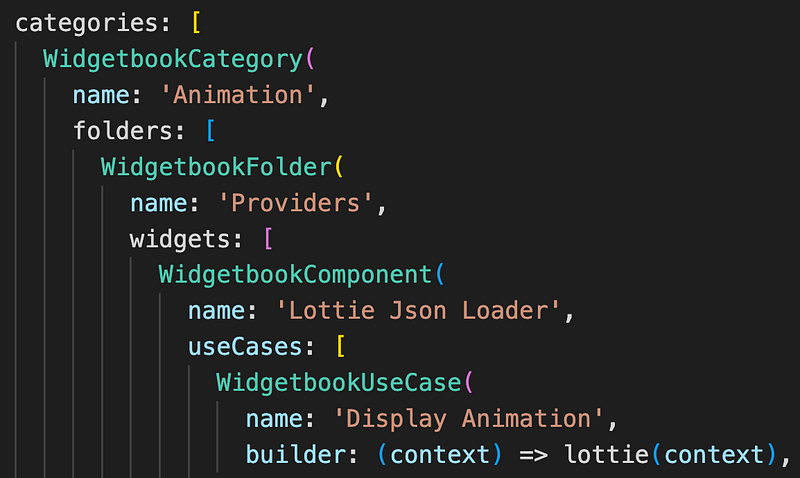

Once created I wire them up manually in the app.widgetbook.dart file:

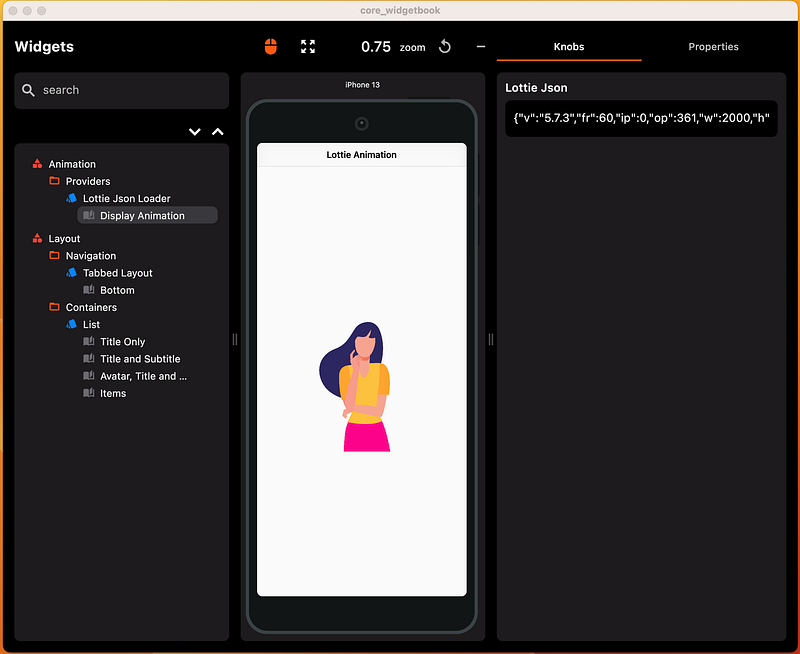

Which creates the structure for the WidgetBook when the application is run:

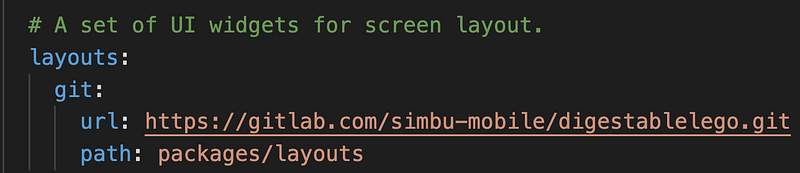

Applications can then include the any or all of the packages by adding dependencies in their pubspec.yaml file:

To create a new package for a new category of widgets run this command in the packages/ directory:

flutter create --template=package forms

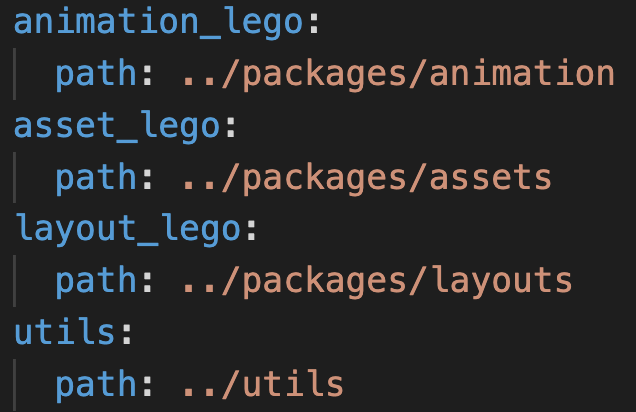

Then include it in the widgetbook pubspec.yaml file:

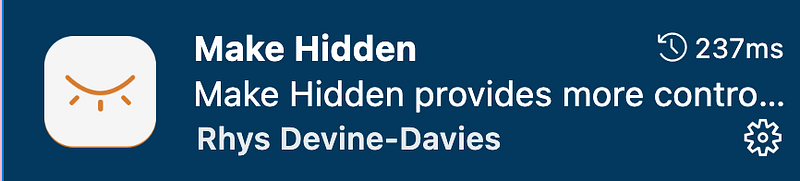

To help reduce the file clutter in the mono-repo I made use of a package to hide files and directories that are not added to:

That’s it for now, once I’ve created more widgets I aim to add some scaffolding to speed up widget and package creation.

(NB. This is one of several articles on building a component library, or if you want to start from scratch, just follow along with Widgetbook example to build it with mason, then update the packages.)
