AWS — Network Load Balancer (NLB) Overview

Summary

The AWS Network Load Balancer (NLB) is a high-performance load balancer designed for handling millions of requests per second with low latency, supporting TCP, UDP, and TLS protocols at the transport layer.

Abstract

AWS Network Load Balancer (NLB) operates at Layer 4 of the OSI model, facilitating load balancing for TCP, UDP, and TLS traffic. It is engineered for high-performance scenarios, capable of processing millions of requests per second while maintaining ultra-low latencies. NLB offers features such as TLS offloading, source IP preservation, static and elastic IP support, sticky sessions, long-lived TCP connections, and zonal isolation. It integrates with various AWS services and provides central API support similar to the Application Load Balancer (ALB). NLB is suitable for applications that require stable IP addresses, support for non-web protocols, and the ability to handle unpredictable traffic patterns without pre-warming.

Opinions

NLB is positioned as ideal for applications that necessitate high performance and are not typical web traffic.
The author suggests that NLB's ability to handle millions of requests per second with low latency makes it suitable for latency-sensitive applications.
The article implies that NLB's support for static IP and Elastic IP addresses provides flexibility and stability for applications that require a fixed entry point.
The integration of NLB with other AWS services is highlighted as a key benefit, streamlining the setup and management process within the AWS ecosystem.
The author emphasizes the importance of NLB's feature to preserve the source IP address, which is crucial for applications that need to identify the client's IP for processing.
The article conveys that NLB's DNS failover and integration with Route 53 enhance application availability and resilience.
The support for registering targets by IP address, including those outside the VPC, is presented as a significant advantage for complex networking scenarios.
The use of NLB for containerized applications is recommended due to its ability to load balance across multiple ports on the same EC2 instance.
The author points out that while NLB is more expensive than other AWS load balancers, its performance benefits and feature set justify the cost for certain use cases.

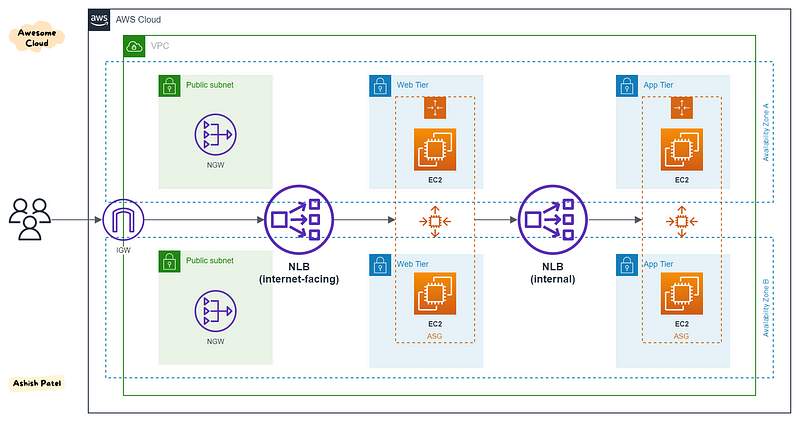

TL;DR

Network Load Balancer (NLB) works at the Layer-4 (Transport layer - Connection level) of the OSI model. NLB supports load balancing of applications using TCP, UDP, and TCP_UDP listeners, as well as TLS listeners.

NLB is specifically designed for high performance traffic that is not conventional web traffic. NLB is capable of handling millions of requests per second while maintaining ultra-low latencies.

Features

Layer 4 (Connection-based) Load Balancing — You can load balance both TCP and UDP traffic, routing connections to targets - EC2 instances, microservices, and containers.

Low Latency — NLB offers extremely low latencies for latency-sensitive applications. NLB has ability to handle volatile workloads and scale to millions of requests per second and provide the best throughput.

TLS Offloading — NLB supports client TLS session termination (encryption and decryption). This enables you to offload TLS termination tasks to the load balancer, while preserving the source IP address for your back-end applications.

Preserve source IP address — NLB preserves the client side source IP allowing the back-end to see the IP address of the client. This can then be used by applications for further processing.

Static IP support — NLB automatically provides a static IP per Availability Zone (subnet) that can be used by applications as the front-end IP of the load balancer.

Elastic IP support — NLB also allows you the option to assign an Elastic IP per Availability Zone (subnet) thereby providing your own fixed IP.

Sticky Sessions — Sticky sessions (source IP affinity) are a mechanism to route requests from the same client to the same target. Stickiness is defined at the target group level.

Long-lived TCP Connections — NLB supports long-lived TCP connections that are ideal for WebSocket type of applications.

Zonal Isolation — NLB can be enabled in a single Availability Zone to support architectures that require zonal isolation. NLB is designed for application architectures in a single zone. However, It is recommend to configure the load balancer and targets in multiple AZs for achieving high availability.

DNS Fail-over — If there are no healthy targets registered with the NLB or if the NLB nodes in a given zone are unhealthy, then Amazon Route 53 will direct traffic to load balancer nodes in other Availability Zones.

Integration with Route 53 — In the event that your NLB is unresponsive, integration with Route 53 will remove the unavailable load balancer IP address from service and direct traffic to an alternate NLB in another region.

Integration with AWS Services — NLB is integrated with other AWS services such as Auto Scaling, Elastic Container Service (ECS), Elastic BeanStalk, AWS Certificate Manager (ACM), CloudWatch, Config, CloudTrail, CodeDeploy, and CloudFormation.

Central API Support — NLB uses the same API as Application Load Balancer (ALB). This will enable you to work with target groups, health checks, and load balance across multiple ports on the same EC2 instance to support containerized applications.

Key Points

NLB operates at connection level.

You can associate Security Groups with NLB. (Updates on Aug 10, 2023, Network Load Balancer now supports security groups)

You can select only one subnet per Availability Zone.

NLB is more expensive as compare to other AWS Load balancers.

Both Classic LB and ALB use connection multiplexing, but NLB don’t.

NLB support for registering targets by IP address, including targets outside the VPC for the load balancer.

NLB support for routing requests to multiple applications on a single EC2 instance. User can register each instance or IP address with the same target group using multiple ports.

NLB with TCP and TLS Listeners can be used to setup PrivateLink. You cannot setup PrivateLink with UDP listeners on NLB.

You can use Route 53 health checking and DNS failover features to enhance the availability of the applications running behind NLB’s.

You can monitor and analyze traffic patterns & troubleshoot issues with CloudWatch metrics, VPC Flow Logs, Access logs & CloudTrail logs.

For TCP traffic, the NLB selects a target using a flow hash algorithm based on the protocol, source IP address, source port, destination IP address, destination port & TCP sequence number.

To support both TCP and UDP on the same port, create a TCP_UDP listener. The target groups for a TCP_UDP listener must use the TCP_UDP protocol.
