Swagger UI configuration for API-Gateway in Spring Boot

In this article, we will discuss managing different Swagger-UIs of various microservices using just one Swagger-UI.

OVERVIEW

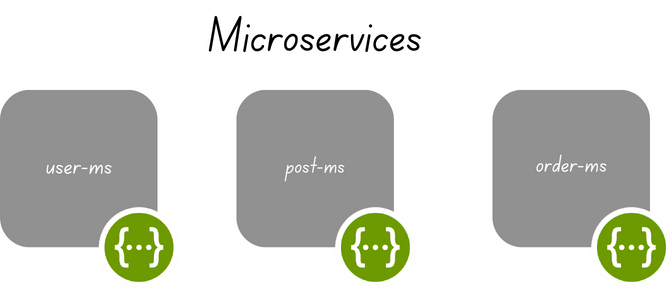

In our microservices setup, each microservice comes with its own set of unique APIs. When it comes to interacting with these APIs, we’re faced with two options: either navigate through the specific endpoints and individual URLs of each microservice or streamline the process by sending requests to all of them from a central location. This centralized point, often known as an API Gateway, is instrumental in consolidating requests.

Typically, an API Gateway serves as a unified entry point for managing and directing requests. In our case, we plan to leverage the API Gateway to not only simplify the process but also to gain access to the APIs, specifically their Swagger-UIs. By configuring a Swagger-UI within the Gateway, we can conveniently interact with the various Swagger-UIs offered by different microservices.

Firstly

First, let’s take a look at the configs we’ll add in microservices.

Include this dependency in the build.gradle file.

implementation 'org.springframework.cloud:spring-cloud-starter-netflix-eureka-client'
implementation 'org.springdoc:springdoc-openapi-starter-webmvc-ui:2.0.4'

!! When copying this, check if the following config is present below; otherwise, it won’t work.

repositories {
    mavenCentral()
    maven { url 'https://repo.spring.io/milestone' }
}

ext {
    set('springCloudVersion', "2023.0.0-RC1")
}

#dependency...

dependencyManagement {
    imports {
        mavenBom "org.springframework.cloud:spring-cloud-dependencies:${springCloudVersion}"
    }

2. Paste the config into the application.yaml file.

server:
  port: 8081
  servlet:
    context-path: /

spring:
  application:
    name: TEST-SERVICE

eureka:
  client:
    serviceUrl:
      defaultZone: http://localhost:8761/eureka

openapi:
  service:
    title: test-service doc
    version: 1.0.0
    url: http://localhost:8080 #api gateway url
springdoc:
  api-docs:
    path: /test-service/v3/api-docs
  swagger-ui:
    path: /test-service/swagger-ui.html

Here, the config for (eureka) is meant for establishing a connection between API Gateway and microservices.

I’ll inform you about the eureka installation at the end of the article.

eureka:
  client:
    serviceUrl:
      defaultZone: http://localhost:8761/eureka

Second

Now, let’s configure the settings for API Gateway.

Include this dependency in the build.gradle file.

implementation 'org.springframework.cloud:spring-cloud-starter-netflix-eureka-client' // This config is only for establishing a connection with microservices.
implementation 'org.springframework.cloud:spring-cloud-starter-gateway'
implementation 'org.springdoc:springdoc-openapi-starter-webflux-ui:2.0.2'

2. Paste the config into the application.yaml file.

server:
  servlet:
    context-path:
  port: 8080

spring:
  application:
    name: GATEWAY-SERVICE
  cloud:
    gateway:
      routes:
        - id: test-service-route
          uri: http://localhost:8081
          predicates:
            - Path=/test-service/v3/api-docs
            - Method=GET
  main:
    web-application-type: reactive

eureka:
  client:
    serviceUrl:
      defaultZone: http://localhost:8761/eureka

springdoc:
  api-docs:
    enabled: true
  swagger-ui:
    enabled: true
    path: /swagger-ui.html
    config-url: /v3/api-docs/swagger-config
    urls:
      - url: /v3/api-docs
        name: API Gateway Service
      - url: /test-service/v3/api-docs
        name: Test Service

Use this for API Gateway Swagger UI. http://localhost:8080/swagger-ui.html

Finally

The configurations used for the Eureka server are meant to establish a connection between microservices and API Gateway.

You can read my article to set up Eureka Server.
