Algorithms, Part 1 Course from Princeton — Hash table and Week 5 Assignment KD-Tree

Introduction

Algorithms, Part 1 is a solid course for IT or software engineers to learn algorithms which are provided by Princeton. Of course, we still have to take time to clarify the concepts after completing the class.

Hash table is an efficient way for the unordered keys. Java provides better system supports for the hash table than the binary search tree. In this article, we will focus on how they works.

About this Series

This series aims to wrap up contents of Algorithms, Part 1.

Agenda

It includes the following topics in this article.

1. Hash table

From the previous article, we know that the red-black BST (a kind of balanced BSTs) guarantees the performance of ST operations on the Log N level.

Are there any ways to retrieve better performance?

Actually, we can achieve the better performances with the hash table. Under the uniform hashing assumption, the hash table can do the task with the constant level.

There are two phases to organize the hash table.

  1. Hashing
  2. Table (Separate chaining table/Linear probing)

2. Hashing

  • Save items in a key-indexed table (index is a function of the key)

Hash function

  • Method for computing array index from key
  • Idealistic goal: scramble the keys uniformly to produce a table index

Java library implementation for the Hash function

All Java classes inherit a method hashCode().

  • hashCode()for Integer (may return the negative number)
  • hashCode()for Boolean
  • hashCode()for Double: xor most significant 32-bits with least significant 32-bits
  • hashCode()for string: - Honer’s method - Turn the i^th character of s to the unicode

User-defined implementation for the Hash function

  • Combine each significant field using 31x + y rule
  • If the field is a primary type, use wrapper type hashCode()
  • Modular hashing: return a hash between 0 and M — 1

3. Separate chaining table

Collision

  • Two distinct keys hashing to same index

Collision resolution

  • Algorithm and data structure to handle two keys that hash to the same array index

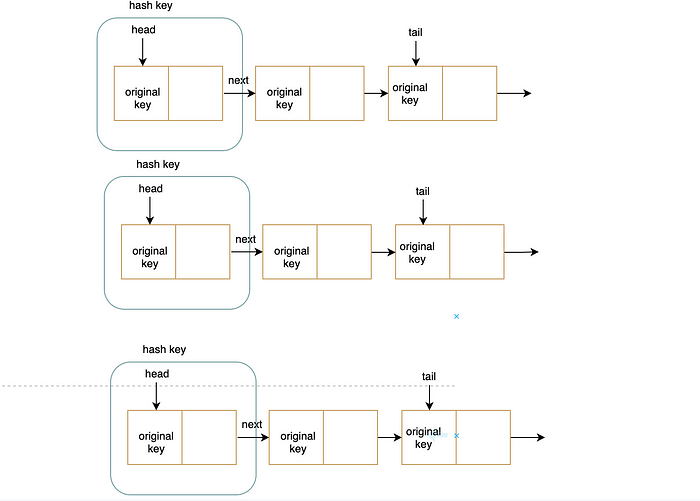

Separate chaining table

  • To solve the collision issues efficiently
  • Use an array of M < N linked lists
source: https://readmedium.com/learning-data-structure-in-javascript-for-beginners-f5752363a4e1#8804

Implementation

  • Number of probes for search/insert is proportional to N/M (M time faster than sequenced search)
  • M too large => too many empty chains
  • M too small => chains too long
  • Typical choice: M ~ N/5 -> constant-time operations

4. Linear probing

  • Map key to integer i between 0 and M — 1
  • Array size M must be greater than number of key-value pairs N
  • Search table index i; if occupied but no match, try i + 1, i + 2, etc

Implementation

5. Separate chaining table vs. Linear probing

Separate chaining table

  • Easier to implement delete
  • Performance degrades gracefully
  • Clustering lass sensitive to poorly-designed hash function

Linear probing

  • Less wasted space
  • Better cache performance

6. Hash tables vs. balanced search trees

Hash tables

  • Simpler to code
  • No effective alternative for unordered keys
  • Faster for simple keys (a few arithmetic operations verses log N compares)
  • Better system support in Java for strings (e.g., cached hash code)

Balanced search trees

  • Stronger performance guarantee
  • Support for ordered ST operations
  • Easier to implement compareTo() correctly than equals() and hashCode()

Java system includes both

  • Red-black BSTs: java.util.TreeMap, java.util.TreeSet
  • Hash tables: java.util.HashMap,java.util.IdentityHashMap

7. Completed code in JavaScript

  • completed by myself, not from the official video

Week 5 Programming Assignment: KD-Tree

Give a bunch of points and draw a rectangle by the mouse, calculate the points inside the rectangle.

Implement in two ways.

  1. brute-force implementation (PointSET.java)
  2. KD-tree implementation (KdTree.java)

Requirements in detail

Solutions

  • PointSET.java
  • KdTree.java

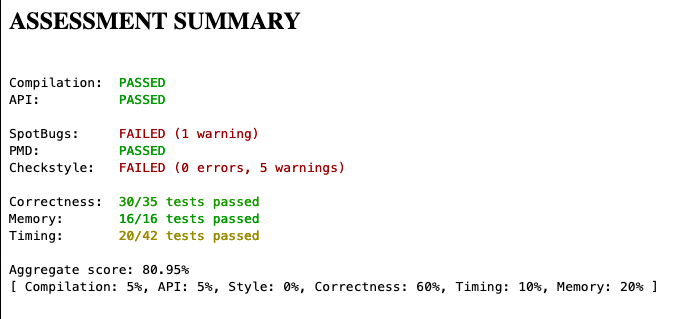

Grades

Summary

Thanks for your patient. I am Sean. I work as a software engineer.

This article is my note. Please feel free to give me advice if any mistakes. I am looking forward to your feedback.
