Verify domains for SES using CloudFormation
One of the goals of using infrastructure as code is to automate as much as possible the provisioning of your infrastructure. Thankfully, AWS provides us with its CloudFormation tool, which is aimed at just that. One area of the cloud infrastructure that can get particularly messy is DNS configuration (provided by the AWS Route53 service). If you want to (and you should!) manage your Route53 Hosted Zones using CloudFormation, chances are you will have to manage your SES domains through CloudFormation.
In order to send emails using Amazon SES, you need to verify your domain to confirm that you are the domain owner and to prevent others from using it.
This is done by adding a TXT record to your domains’s DNS server. Amazon SES will provide you the name and value for this TXT record.

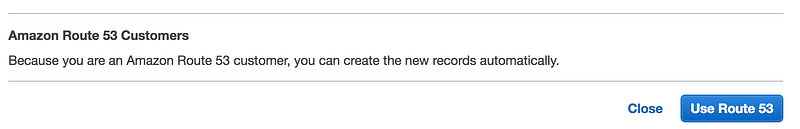

If you’re using Route53 as your DNS provider, then you’re in for a treat! The SES console will offer you to add the TXT record to your Route53 hosted zone for you, by clicking the blue button:
You must resist the temptation to click that button! Do not forget the 1st commandment of Infrastructure as Code:
Thou shalt not click the dreaded blue button
What you don’t want, is to create those txt records by hand

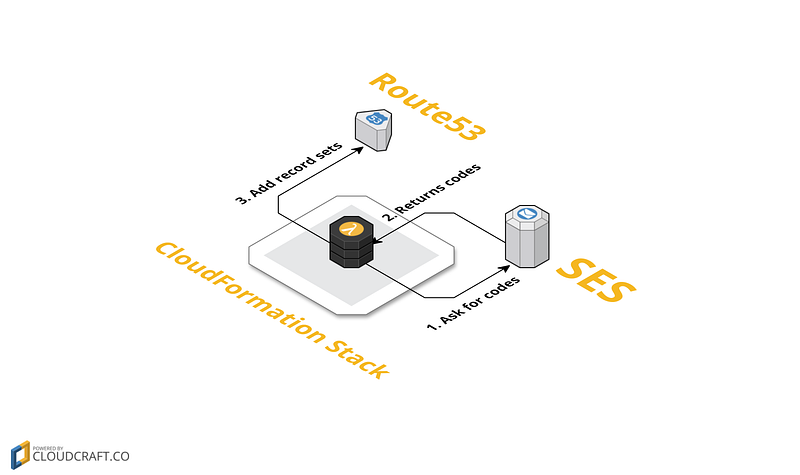

Using CloudFormation Custom Resources, you can wire a Lambda function to add those TXT records automatically. Our system will look like this:
First, our Lambda function will acquire the verification codes using the SES API. Once our Lambda has these verification codes, it will modify our hosted zone records in Route53.
The Lambda function
First, let’s have a look at the Lambda function’s handler:
def _lambda_handler(event, context):
print "Received event: "
print event resource_type = event['ResourceType']
request_type = event['RequestType']
resource_properties = event['ResourceProperties']
hosted_zone_id = resource_properties['HostedZoneId'] physical_resource_id = event.get('PhysicalResourceId', unicode(uuid.uuid4())) try:
if resource_type == "Custom::AmazonSesVerificationRecords":
if request_type == 'Create':
verify_ses(hosted_zone_id=hosted_zone_id, action='UPSERT')
elif request_type == 'Delete':
verify_ses(hosted_zone_id=hosted_zone_id, action='DELETE')
elif request_type == 'Update':
old_hosted_zone_id = event['OldResourceProperties']['HostedZoneId']
verify_ses(hosted_zone_id=old_hosted_zone_id, action='DELETE')
verify_ses(hosted_zone_id=hosted_zone_id, action='UPSERT')
else:
print 'Request type is {request_type}, doing nothing.'.format(request_type=request_type) response_data = {}
else:
raise ValueError("Unexpected resource_type: {resource_type}".format(resource_type=resource_type))
except Exception:
send(
event,
context,
responseStatus=FAILED if request_type != 'Delete' else SUCCESS,
# Do not fail on delete to avoid rollback failure
responseData=None,
physicalResourceId=physical_resource_id,
)
raise # this statement is important so the exception (along with the original traceback) is logged to Cloudwatch
else:
send(
event,
context,
responseStatus=SUCCESS,
responseData=response_data,
physicalResourceId=physical_resource_id,
)So the basic logic is simple: if our custom resource is created, we’ll create the records in the hosted zone. If it’s deleted, then we’ll delete the records in the hosted zone. If our custom resource is updated, then we’ll need to delete records from the old hosted zone and add records to the new one. Once this is all done, we signal CloudFormation (using our custom send() function, or you could use the cfn-signal helper) that our custom resource is completed.
Now, let’s have a deeper look into the verify_ses() function:
def verify_ses(hosted_zone_id, action):
ses = boto3.client('ses') print "Retrieving Hosted Zone name"
hosted_zone_name = _get_hosted_zone_name(hosted_zone_id=hosted_zone_id)
print 'Hosted zone name: {hosted_zone_name}'.format(hosted_zone_name=hosted_zone_name) domain = hosted_zone_name.rstrip('.') verification_token = ses.verify_domain_identity(
Domain=domain
)['VerificationToken'] dkim_tokens = ses.verify_domain_dkim(
Domain=domain
)['DkimTokens'] print 'Changing resource record sets'
changes = [
{
'Action': action,
'ResourceRecordSet': {
'Name': "_amazonses.{hosted_zone_name}".format(hosted_zone_name=hosted_zone_name),
'Type': 'TXT',
'TTL': 1800,
'ResourceRecords': [
{
'Value': '"{verification_token}"'.format(verification_token=verification_token)
}
]
}
}
] for dkim_token in dkim_tokens:
change = {
'Action': action,
'ResourceRecordSet': {
'Name': "{dkim_token}._domainkey.{hosted_zone_name}".format(
dkim_token=dkim_token,
hosted_zone_name=hosted_zone_name
),
'Type': 'CNAME',
'TTL': 1800,
'ResourceRecords': [
{
'Value': "{dkim_token}.dkim.amazonses.com".format(dkim_token=dkim_token)
}
]
}
} changes.append(change) boto3.client('route53').change_resource_record_sets(
ChangeBatch={
'Changes': changes
},
HostedZoneId=hosted_zone_id
)Using a helper function _get_hosted_zone_name() (detailed below), we get the name of the hosted zone. Next, using the SES api, we retrieve both the verification and DKIM tokens for our domain. Finally, we leverage the Route53 api to update the record sets on our hosted zone.
Here’s how you can retrieve the name of a given hosted zone. Nothing too fancy:
def _get_hosted_zone_name(hosted_zone_id):
route53 = boto3.client('route53')
route53_resp = route53.get_hosted_zone(
Id=hosted_zone_id
)
return route53_resp['HostedZone']['Name']Finally, here’s the code of the send() function. This is boilerplate code that we carry around our Lambda functions to signal CloudFormation of the outcome of the Lambda's execution:
def send(event, context, responseStatus, responseData, physicalResourceId):
responseUrl = event['ResponseURL'] print responseUrl responseBody = {}
responseBody['Status'] = responseStatus
responseBody['Reason'] = 'See the details in CloudWatch Log Stream: ' + context.log_stream_name
responseBody['PhysicalResourceId'] = physicalResourceId
responseBody['StackId'] = event['StackId']
responseBody['RequestId'] = event['RequestId']
responseBody['LogicalResourceId'] = event['LogicalResourceId']
responseBody['Data'] = responseData json_responseBody = json.dumps(responseBody) print "Response body:\n" + json_responseBody headers = {
'content-type': '',
'content-length': str(len(json_responseBody))
} try:
response = requests.put(responseUrl,
data=json_responseBody,
headers=headers)
print "Status code: " + response.reason
except Exception as e:
print "send(..) failed executing requests.put(..): " + str(e)The CloudFormation template
First, you’ll need a Lambda function:
AmazonSesVerificationRecordsLambdaFunction:
Type: AWS::Lambda::Function
Properties:
Description: This function manages the verification and DKIM records for SES
Code:
S3Bucket: my-bucket-name
S3Key: ses_route53_verification.zip
Handler: ses_route53_verification.lambda_handler
Role:
Fn::GetAtt:
- AmazonSesVerificationRecordsRole
- Arn
Runtime: python2.7
Timeout: 30The timeout can be left to 30 seconds, as our Lambda is short to execute. You will also need to store your Lambda’s zip in a bucket.
Next, we’ll need an IAM role for our Lambda:
AmazonSesVerificationRecordsRole:
Type: AWS::IAM::Role
Properties:
AssumeRolePolicyDocument:
Version: '2012-10-17'
Statement:
- Sid: 'AllowTheLambdaFunctionToAssumeThisRole'
Effect: Allow
Principal:
Service: lambda.amazonaws.com
Action: sts:AssumeRole
Path: "/"
ManagedPolicyArns:
- arn:aws:iam::aws:policy/service-role/AWSLambdaBasicExecutionRole
Policies:
- PolicyName: Route53Access
PolicyDocument:
Version: '2012-10-17'
Statement:
- Effect: Allow
Action:
- route53:GetHostedZone
- route53:ChangeResourceRecordSets
Resource:
- !Sub arn:aws:route53:::hostedzone/${MyHostedZone}
- PolicyName: SesAccess
PolicyDocument:
Version: '2012-10-17'
Statement:
- Effect: Allow
Action:
- ses:VerifyDomainDkim
- ses:VerifyDomainIdentity
Resource: "*"We give permissions to our Lambda to use CloudWatch logs (using the built-in AWSLambdaBasicExecutionRolepolicy), change record sets on our hosted zone and generate the verification values.
Finally, here’s our custom resource:
SesVerificationRecords:
Type: Custom::AmazonSesVerificationRecords
Properties:
ServiceToken:
Fn::GetAtt:
- AmazonSesVerificationRecordsLambdaFunction
- Arn
HostedZoneId:
Ref: MyHostedZoneOur custom resource will invoke our Lambda and pass in the ID of the target hosted zone that needs to be modified.
