Using ChatGPT to build System Diagrams — Part I

Interested in Mindmaps — read our blog post on using plantUML with ChatGPT to create awesome Mindmaps

The popularity of ChatGPT keeps growing and it’s now being used in a wide range of applications. As a software architect, I had the opportunity to explore ChatGPT’s capabilities for use within the financial domain, specifically for Wealth Management.

I wanted to confirm if ChatGPT could generate diagrams for a use case explanation and analyze multiple factors at the same time.

So, I logged into chat.openai.com and here is my conversation

Step 1: Let’s define the use-case

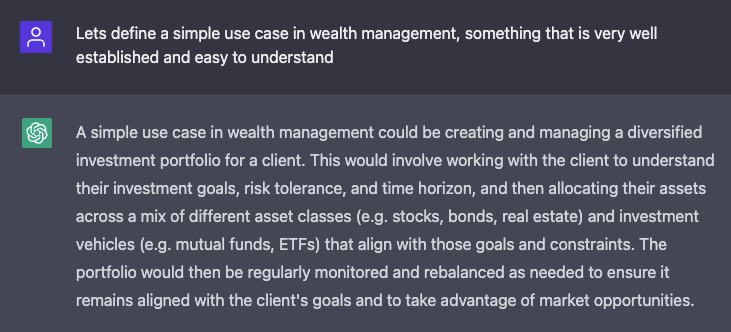

I could have defined my own use-case, but I wanted to test all aspects of ChatGPT, so I asked it to define one for me.

Step 2: Let’s define a Data Model for the use-case

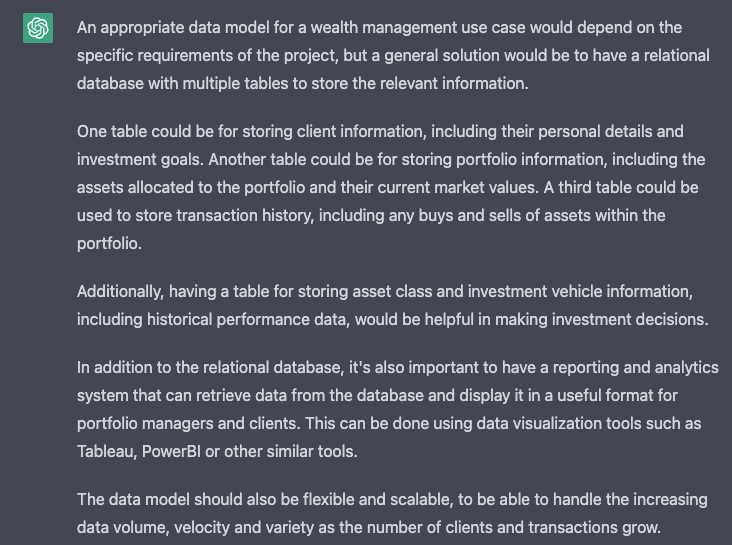

Looks good to me, let’s start by defining the data model — so I asked ChatGPT to do it and this is what I got

That sounds about right, lets see what it can do for diagrams. I wanted to drill a bit deeper on the data model so my next prompt was

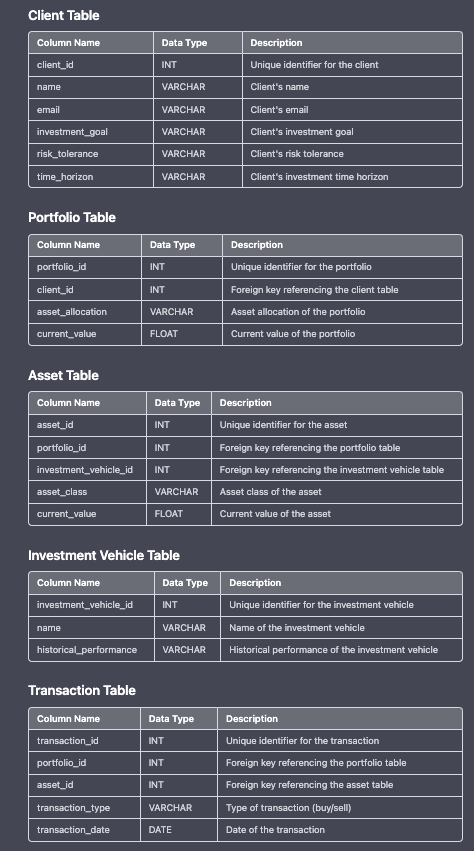

Prompt: describe the data model in more detail or tabular format using markdown ChatGPT: I can describe the structure of the data model in a tabular format using markdown.

This is a good start. Next I asked for defining relationships

Step 3: Let’s define relationships — Entity Relationship Diagram

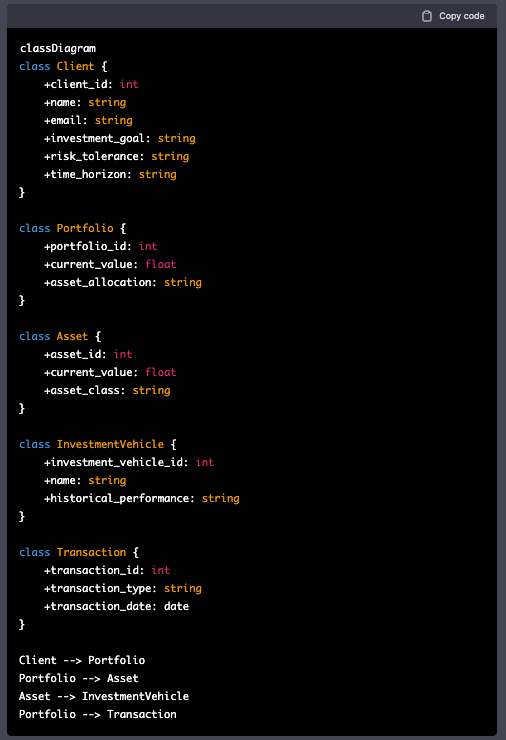

Prompt: this is perfect, I would like to depict the relationships in a mermaid diagram, can you give me the markdown code to do this ChatGPT: I apologize, but as a text-based model, I am not able to generate Mermaid diagrams or any other visual diagrams. However, I can provide you with an example of how the relationships could be represented in Mermaid syntax:

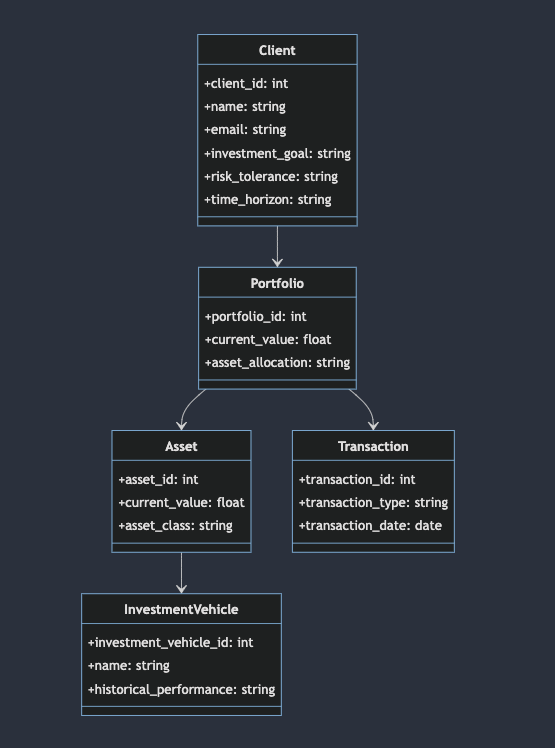

And copying this in a markdown editor enclosed within {mermaid} tags, I got

Great, we are getting somewhere.

I have a class diagram / entity-relationship diagram. Let’s see what else is possible

Step 4: Sequence Diagram

Next, I tried to make hypothetical prompts to check responses. My first intention was to get a sequence diagram created

Prompt: how would a Buy transaction for an asset impact the tables mentioned above, I would like to depict this as a sequence diagram. Can you help describe the diagram in markdown format for mermaid ChatGPT: Sure, a Buy transaction would have an impact on the following tables:

Asset table: the current_value of the asset would be updated to reflect the current market value of the asset Portfolio table: the current_value of the portfolio would be updated to reflect the new asset and its market value, and the asset_allocation would be updated to reflect the new asset. Transaction table: a new transaction would be added with the transaction details such as the transaction type, transaction date, asset_id, and portfolio_id

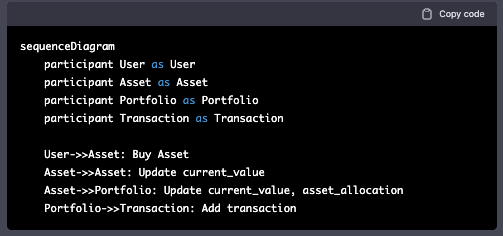

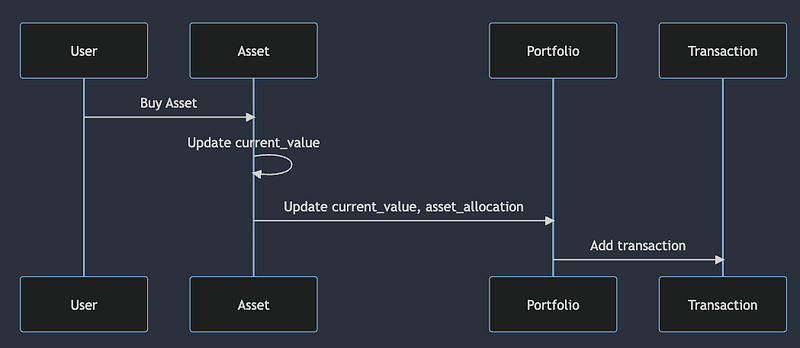

Here is an example of how the process could be represented in a Mermaid sequence diagram:

and copying this is in a markdown editor

Impressive. But I am not done yet

Step 5: State Transition Diagram

Let me ask about a State Transition diagram

Prompt: Will the account have states like new, closed, active inactive etc? I would like to depict the states in a state diagram using mermaid. Can you help describe the diagram in markdown format ChatGPT: It is common for financial accounts to have different states, such as new, closed, active, and inactive, to reflect the current status of the account.

new account would be one that has just been opened and is awaiting funding or verification. active account would be one that is currently open and being used for transactions. inactive account would be one that is not currently being used but has not been closed. closed account would be one that has been closed by the customer or the financial institution, and no longer able to be used for transactions. Pending state could be used to indicate that the account is under review or awaiting verification. Suspended state could be used to indicate that the account has been temporarily suspended, for example, due to suspicious activity or non-compliance with terms and conditions. Frozen state could be used to indicate that the account has been frozen, for example, due to a legal dispute or regulatory action. Expired state could be used to indicate that the account has reached its expiration date and is no longer in use.

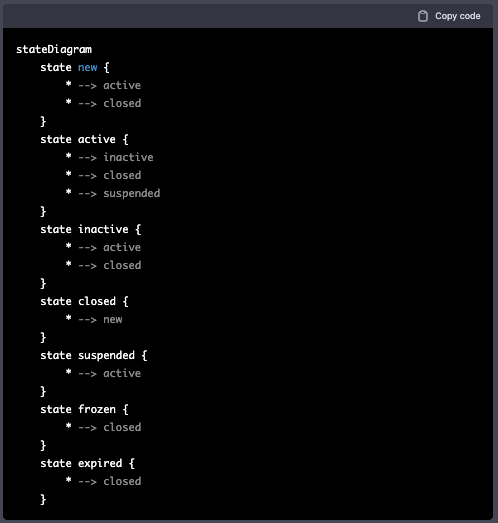

here is an example of how the states of an account could be represented in a Mermaid state diagram:

Looks like, this format is older and may break due to cyclical dependencies. So I asked ChatGPT to improve this

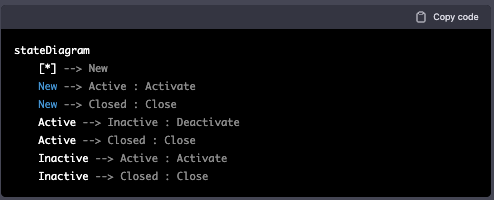

Prompt: can you try giving the state diagram markdown syntax in new format using [*] ChatGPT: Sure, here is an example of how a state diagram for a wealth management system's account management component could be represented in Mermaid using the new format with [*]:

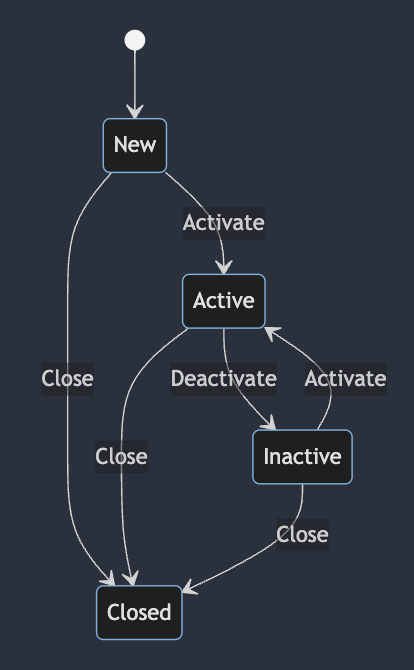

Markdown Editor Representation

This diagram shows the different states of an account and the possible transitions between them.

• The initial state is [*] which denotes the start state.
• The account can transition from New state to Active state by activating it.
• The account can transition from New state to Closed state by closing it.
• The account can transition from Active state to Inactive state by deactivating it.
• The account can transition from Active state to Closed state by closing it.
• The account can transition from Inactive state to Active state by activating it.
• The account can transition from Inactive state to Closed state by closing it.

Now we are getting somewhere. Let’s extend this further to include other states as well

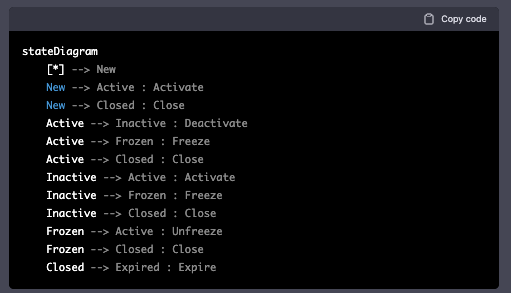

Prompt: please include expired, frozen and other relevant states as well ChatGPT: Sure, here is an example of how a state diagram for a wealth management system’s account management component could be represented in Mermaid including additional states such as Expired, Frozen, etc:

Description: This diagram shows the different states of an account and the possible transitions between them.

The initial state is [*] which denotes the start state. The account can transition from New state to Active state by activating it. The account can transition from New state to Closed state by closing it. The account can transition from Active state to Inactive state by deactivating it. The account can transition from Active state to Frozen state by freezing it. The account can transition from Active state to Closed state by closing it. The account can transition from Inactive state to Active state by activating it. The account can transition from Inactive state to Frozen state by freezing it. The account can transition from Inactive state to Closed state by closing it. The account can transition from Frozen state to Active state by unfreezing it. The account can transition from Frozen state to Closed state by closing it. The account can transition from Closed state to Expired state if the account is expired.

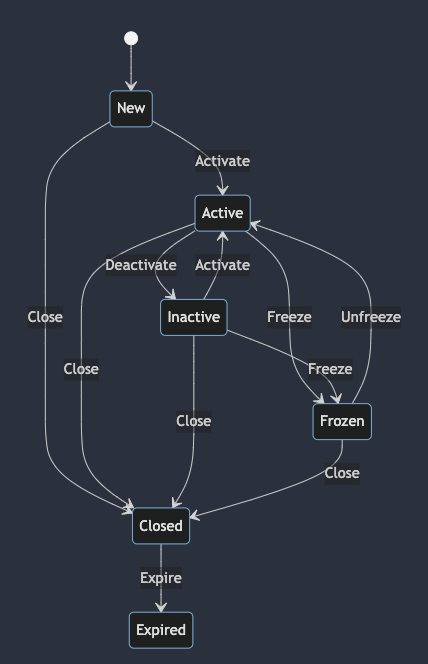

And Diagrammatic Representation

This is awesome. Truly impressive on what can be achieved with ChatGPT and Mermaid

I next moved on to describing and building more diagrams using the C4 model and will add them to a follow up post

Thanks for reading!
