SVG animation for any website with Adobe Illustrator, HTML and CSS

A top trend in web design for 2020 is the increased use of SVG animations on web pages and in logo design. In this article, we will implement a simple and straight forward method to create relatively complex animation. We will use Adobe Illustrator, although a similar program capable of creating SVG files will suffice. On our web page we will use HTML and CSS to animate our SVG.

In this tutorial, we will create the IRIS WEB CORE logo.

So let’s begin.

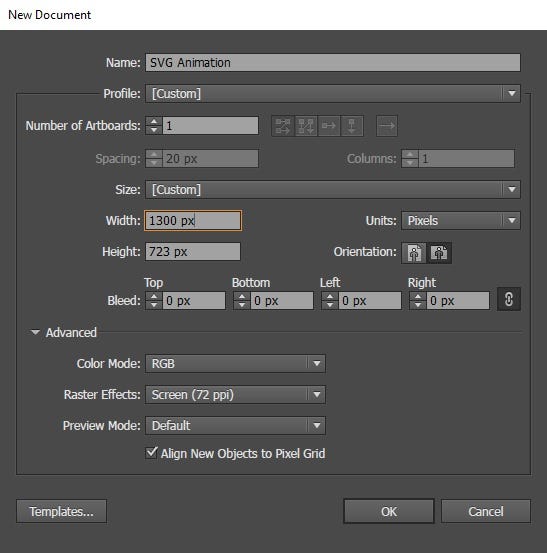

Open Adobe Illustrator and hit “Create new…”, set the artboard width to 1300px and the height to 723px

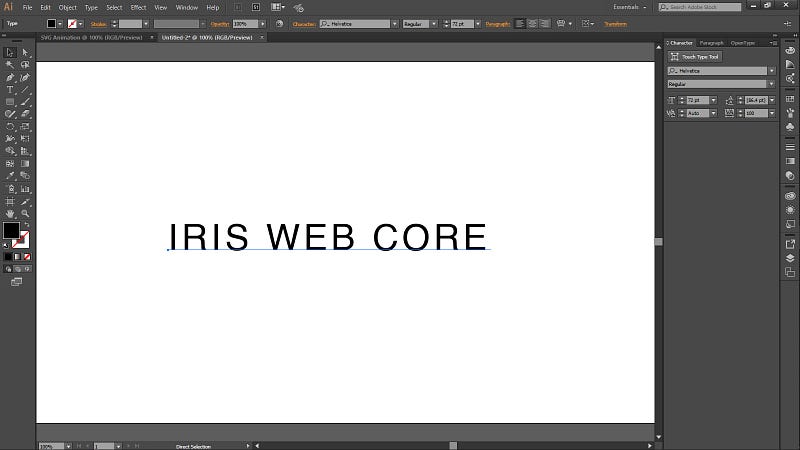

Type in some text and hit “ctrl + t” on your keyboard on PC or “Command + t” on Mac.

Set the font size to “72pt”, the letter tracking to “100” and the font family to “Helvetica”

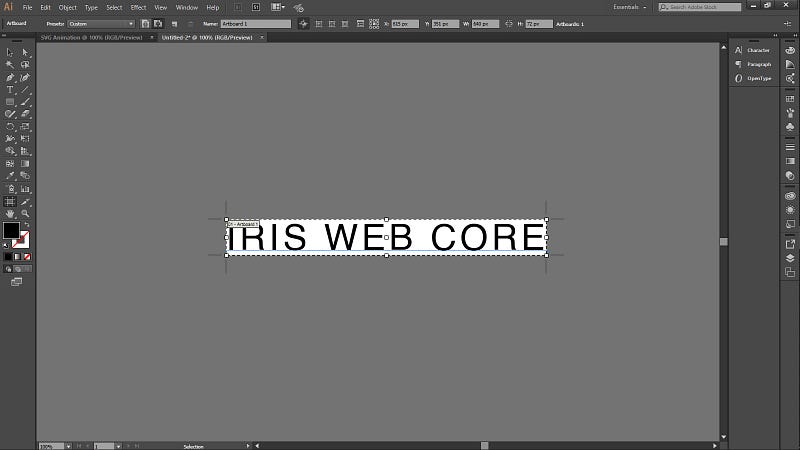

Hit “Document Setup” and select “Edit Artboards”. Move the edges of the art board closer to the edges of the text.

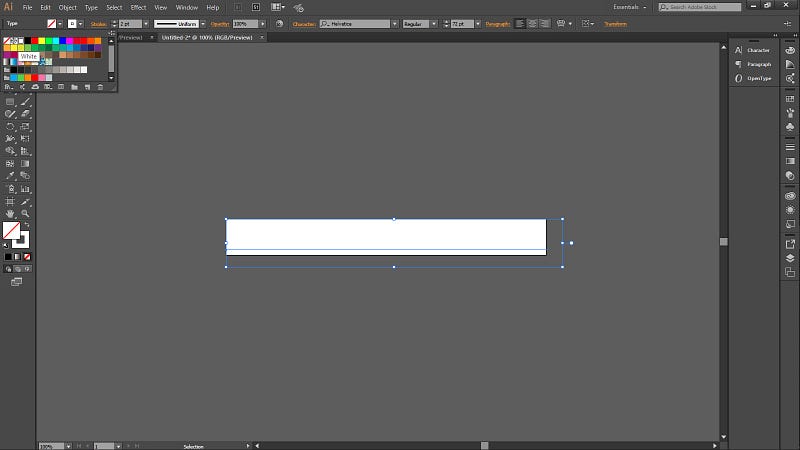

Select the text and set the Fill property to “None” and the Stroke property to “White” and “2pt”

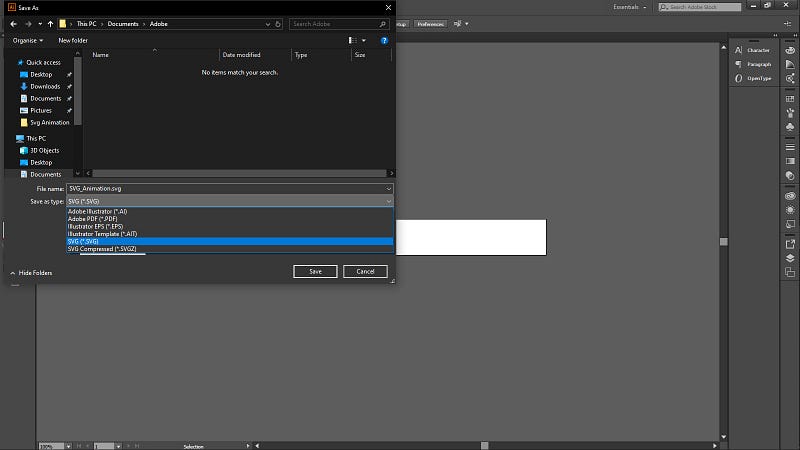

Go to “File” and “Save As”. Choose the destination for the file and select from the “Save as type” dropdown list “SVG (*.SVG)” and hit “Save”

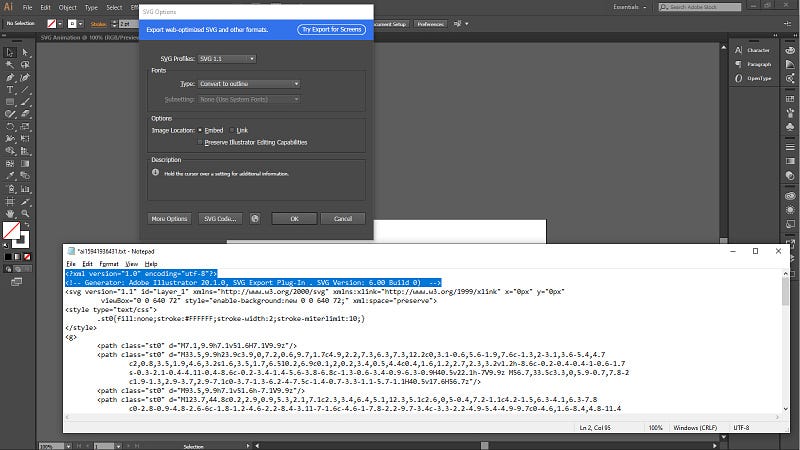

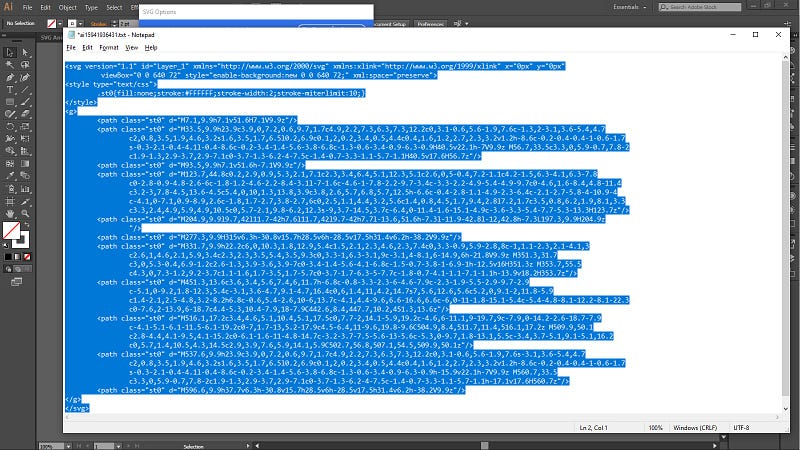

From the following menu on the Fonts group select from the “Type:” dropdown list “Convert to outline”. Hit the “SVG Code…” button. In the text editor that will open remove the first two lines of code before the tag.

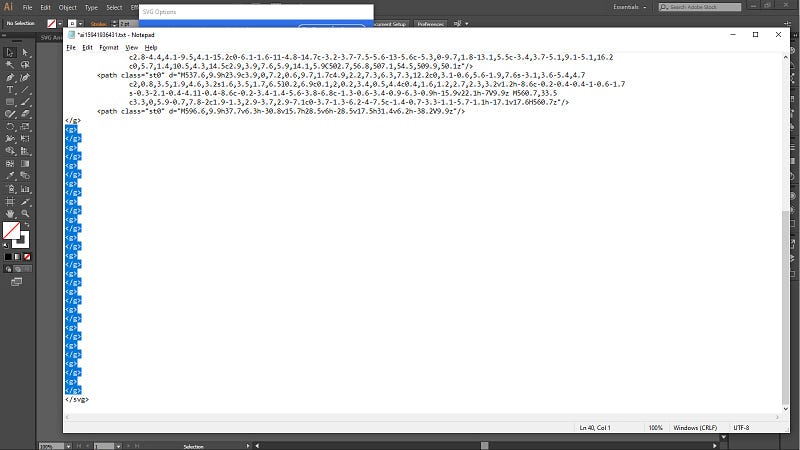

Go to the bottom of the file and remove the unnecessary tags

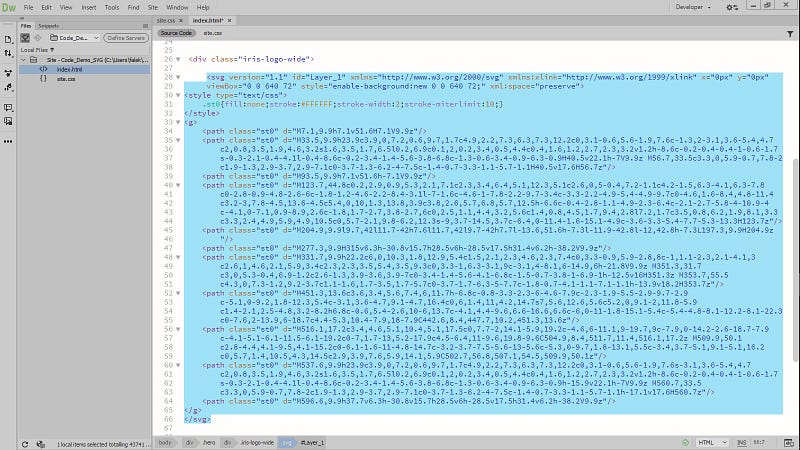

Copy the remaining code and paste it into your HTML document. Close Adobe Illustrator.

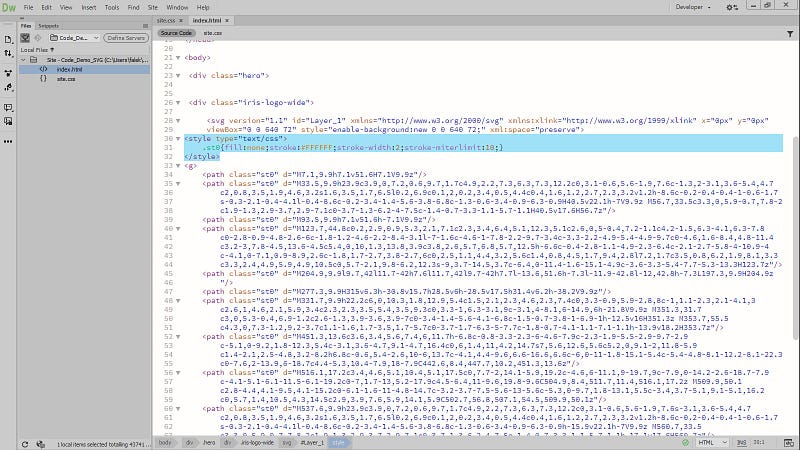

Remove the tag from your html document as we will do the styling in the .css file.

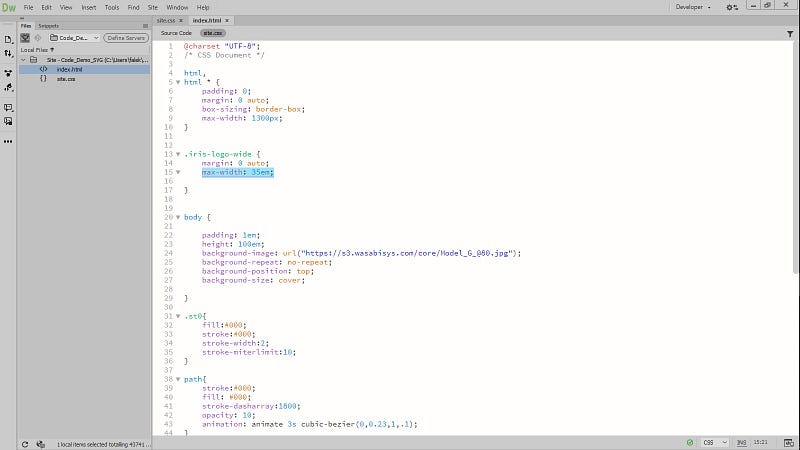

To control the size of the SVG Logo and to keep it responsive we set a “max-width: 35em;” on its parent container “.iris-logo-wide”.

To animate our SVG we are concerned with adjusting the following parts of the SVG in our CSS — the “.st0” class and the tag.

Copy and paste the following code into your CSS file.

.st0{
  fill:#000;
  stroke:#000;
  stroke-width:2;
  stroke-miterlimit:10;
}

path{
  stroke:#000;
  fill: #000;
  stroke-dasharray:1800;
  opacity: 10;
  animation: animate 3s cubic-bezier(0,0.23,1,.1);
}

@keyframes animate{
  0%{
   opacity:0;
   fill:none;
   stroke-dashoffset:1800;
 }

  30%{
   opacity:1;
   fill:none;
   stroke-dashoffset:1800;
  }

  90%{
   fill:rgba(0,0,0,0);
  }
  100%{
   opacity: 1;
   fill:rgba(0,0,0,0);
   stroke-dashoffset:0;
  }
}

We can set up the colors of the stroke and fill of our SVG in the “.st0” class and the tag. We have set them up here to black #000. Notice that we started with a white #FFF stroke and no fill color. in Adobe Illustrator. This is valid for all the properties of the SVG, they can be changed in our .css file.

We want to animate the tag so we create an animation “@keyframes animate”. At 0% we start with “opacity:0;” “fill:none;” “stroke-dashoffset:1800;” and at 100% we finish with “opacity: 1;” “fill:rgba(0,0,0,0);” “stroke-dashoffset:0;”.

This is the result

You can absolutely customise the animation. Notice that we have used a cubic-bezier animation above. Here is a good place to customize your animation https://cubic-bezier.com/

Find the full code for our web page below

HTML

<!doctype html>
<html>
<head>
<meta charset="utf-8">
<meta name="viewport" content="initial-scale=1.0">

<title>iris Web Core</title>


  <meta name="description" content="IRIS WEB CORE is a Website Design and Digital Marketing Agency experienced in delivering customers through attractive design, strategic SEO and Social Media management." />

<meta name="author" content="COPYRIGHT 2020 IRIS WEB CORE LTD ALL RIGHTS RESERVED (developed with care by Fabio Aleksiev at irisWebCore)" />



<link href="site.css" rel="stylesheet" type="text/css">

</head>

<body>

<div class="hero">

<div class="iris-logo-wide">

  <svg version="1.1" id="Layer_1" xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" x="0px" y="0px"
  viewBox="0 0 640 72" style="enable-background:new 0 0 640 72;" xml:space="preserve">

<g>
 <path class="st0" d="M7.1,9.9h7.1v51.6H7.1V9.9z"/>
 <path class="st0" d="M33.5,9.9h23.9c3.9,0,7.2,0.6,9.7,1.7c4.9,2.2,7.3,6.3,7.3,12.2c0,3.1-0.6,5.6-1.9,7.6c-1.3,2-3.1,3.6-5.4,4.7
  c2,0.8,3.5,1.9,4.6,3.2s1.6,3.5,1.7,6.5l0.2,6.9c0.1,2,0.2,3.4,0.5,4.4c0.4,1.6,1.2,2.7,2.3,3.2v1.2h-8.6c-0.2-0.4-0.4-1-0.6-1.7
  s-0.3-2.1-0.4-4.1l-0.4-8.6c-0.2-3.4-1.4-5.6-3.8-6.8c-1.3-0.6-3.4-0.9-6.3-0.9H40.5v22.1h-7V9.9z M56.7,33.5c3.3,0,5.9-0.7,7.8-2
  c1.9-1.3,2.9-3.7,2.9-7.1c0-3.7-1.3-6.2-4-7.5c-1.4-0.7-3.3-1.1-5.7-1.1H40.5v17.6H56.7z"/>
 <path class="st0" d="M93.5,9.9h7.1v51.6h-7.1V9.9z"/>
 <path class="st0" d="M123.7,44.8c0.2,2.9,0.9,5.3,2.1,7.1c2.3,3.4,6.4,5.1,12.3,5.1c2.6,0,5-0.4,7.2-1.1c4.2-1.5,6.3-4.1,6.3-7.8
  c0-2.8-0.9-4.8-2.6-6c-1.8-1.2-4.6-2.2-8.4-3.1l-7-1.6c-4.6-1-7.8-2.2-9.7-3.4c-3.3-2.2-4.9-5.4-4.9-9.7c0-4.6,1.6-8.4,4.8-11.4
  c3.2-3,7.8-4.5,13.6-4.5c5.4,0,10,1.3,13.8,3.9c3.8,2.6,5.7,6.8,5.7,12.5h-6.6c-0.4-2.8-1.1-4.9-2.3-6.4c-2.1-2.7-5.8-4-10.9-4
  c-4.1,0-7.1,0.9-8.9,2.6c-1.8,1.7-2.7,3.8-2.7,6c0,2.5,1.1,4.4,3.2,5.6c1.4,0.8,4.5,1.7,9.4,2.8l7.2,1.7c3.5,0.8,6.2,1.9,8.1,3.3
  c3.3,2.4,4.9,5.9,4.9,10.5c0,5.7-2.1,9.8-6.2,12.3s-9,3.7-14.5,3.7c-6.4,0-11.4-1.6-15.1-4.9c-3.6-3.3-5.4-7.7-5.3-13.3H123.7z"/>
 <path class="st0" d="M204.9,9.9l9.7,42l11.7-42h7.6l11.7,42l9.7-42h7.7l-13.6,51.6h-7.3l-11.9-42.8l-12,42.8h-7.3L197.3,9.9H204.9z
  "/>
 <path class="st0" d="M277.3,9.9H315v6.3h-30.8v15.7h28.5v6h-28.5v17.5h31.4v6.2h-38.2V9.9z"/>
 <path class="st0" d="M331.7,9.9h22.2c6,0,10.3,1.8,12.9,5.4c1.5,2.1,2.3,4.6,2.3,7.4c0,3.3-0.9,5.9-2.8,8c-1,1.1-2.3,2.1-4.1,3
  c2.6,1,4.6,2.1,5.9,3.4c2.3,2.3,3.5,5.4,3.5,9.3c0,3.3-1,6.3-3.1,9c-3.1,4-8.1,6-14.9,6h-21.8V9.9z M351.3,31.7
  c3,0,5.3-0.4,6.9-1.2c2.6-1.3,3.9-3.6,3.9-7c0-3.4-1.4-5.6-4.1-6.8c-1.5-0.7-3.8-1-6.9-1h-12.5v16H351.3z M353.7,55.5
  c4.3,0,7.3-1.2,9.2-3.7c1.1-1.6,1.7-3.5,1.7-5.7c0-3.7-1.7-6.3-5-7.7c-1.8-0.7-4.1-1.1-7.1-1.1h-13.9v18.2H353.7z"/>
 <path class="st0" d="M451.3,13.6c3.6,3.4,5.6,7.4,6,11.7h-6.8c-0.8-3.3-2.3-6-4.6-7.9c-2.3-1.9-5.5-2.9-9.7-2.9
  c-5.1,0-9.2,1.8-12.3,5.4c-3.1,3.6-4.7,9.1-4.7,16.4c0,6,1.4,11,4.2,14.7s7,5.6,12.6,5.6c5.2,0,9.1-2,11.8-5.9
  c1.4-2.1,2.5-4.8,3.2-8.2h6.8c-0.6,5.4-2.6,10-6,13.7c-4.1,4.4-9.6,6.6-16.6,6.6c-6,0-11-1.8-15.1-5.4c-5.4-4.8-8.1-12.2-8.1-22.3
  c0-7.6,2-13.9,6-18.7c4.4-5.3,10.4-7.9,18-7.9C442.6,8.4,447.7,10.2,451.3,13.6z"/>
 <path class="st0" d="M516.1,17.2c3.4,4.6,5.1,10.4,5.1,17.5c0,7.7-2,14.1-5.9,19.2c-4.6,6-11.1,9-19.7,9c-7.9,0-14.2-2.6-18.7-7.9
  c-4.1-5.1-6.1-11.5-6.1-19.2c0-7,1.7-13,5.2-17.9c4.5-6.4,11-9.6,19.8-9.6C504.9,8.4,511.7,11.4,516.1,17.2z M509.9,50.1
  c2.8-4.4,4.1-9.5,4.1-15.2c0-6.1-1.6-11-4.8-14.7c-3.2-3.7-7.5-5.6-13-5.6c-5.3,0-9.7,1.8-13.1,5.5c-3.4,3.7-5.1,9.1-5.1,16.2
  c0,5.7,1.4,10.5,4.3,14.5c2.9,3.9,7.6,5.9,14.1,5.9C502.7,56.8,507.1,54.5,509.9,50.1z"/>
 <path class="st0" d="M537.6,9.9h23.9c3.9,0,7.2,0.6,9.7,1.7c4.9,2.2,7.3,6.3,7.3,12.2c0,3.1-0.6,5.6-1.9,7.6s-3.1,3.6-5.4,4.7
  c2,0.8,3.5,1.9,4.6,3.2s1.6,3.5,1.7,6.5l0.2,6.9c0.1,2,0.2,3.4,0.5,4.4c0.4,1.6,1.2,2.7,2.3,3.2v1.2h-8.6c-0.2-0.4-0.4-1-0.6-1.7
  s-0.3-2.1-0.4-4.1l-0.4-8.6c-0.2-3.4-1.4-5.6-3.8-6.8c-1.3-0.6-3.4-0.9-6.3-0.9h-15.9v22.1h-7V9.9z M560.7,33.5
  c3.3,0,5.9-0.7,7.8-2c1.9-1.3,2.9-3.7,2.9-7.1c0-3.7-1.3-6.2-4-7.5c-1.4-0.7-3.3-1.1-5.7-1.1h-17.1v17.6H560.7z"/>
 <path class="st0" d="M596.6,9.9h37.7v6.3h-30.8v15.7h28.5v6h-28.5v17.5h31.4v6.2h-38.2V9.9z"/>
</g>
</svg>

</div>

</div>

</body>

</html>

CSS

@charset "UTF-8";
/* CSS Document */

html,
html * {
 padding: 0;
 margin: 0 auto;
 box-sizing: border-box;
 max-width: 1300px;
}

.iris-logo-wide {
 margin: 0 auto;
 max-width: 35em;

body {

 padding: 1em;
 height: 100em;
 background-image: url("https://s3.wasabisys.com/core/[email protected]");
 background-repeat: no-repeat;
  background-position: top;
 background-size: cover;

}

.st0{
 fill:#000;
 stroke:#000;
 stroke-width:2;
 stroke-miterlimit:10;
}

path{
 stroke:#000;
 fill: #000;
 stroke-dasharray:1800;
 opacity: 10;
 animation: animate 3s cubic-bezier(0,0.23,1,.1);
}

@keyframes animate{
 0%{
  opacity:0;
  fill:none;
  stroke-dashoffset:1800;
 }

 30%{
  opacity:1;
  fill:none;
  stroke-dashoffset:1800;
 }

 90%{
  fill:rgba(0,0,0,0);
 }
 100%{
  opacity: 1;
  fill:rgba(0,0,0,0);
  stroke-dashoffset:0;
 }
}

Get Adobe Illustrator from here https://www.adobe.com/products/illustrator.html

That is it my friends, if you liked this article visit our Facebook page and our website IRIS WEB CORE.

And as always have a great day!

Find me on LinkedIn: https://www.linkedin.com/in/fabio-aleksiev-irsctx
