Kubernetes SSO using Keycloak

The purpose of this project is to test Keycloak using federation with an external LDAP.

The SSO solution is based on Keycloak, but will also use:

OpenLDAP as external storage for identities
OAuth2 Proxy that provides authentication for unsecured applications

This article is based on this Github repository.

Installation

Kubernetes cluster setup

Before installing the SSO solution, we need to get a Kubernetes cluster with NGINX Ingress controller and cert-manager installed. Let’s Encrypt will be used for certificates management.

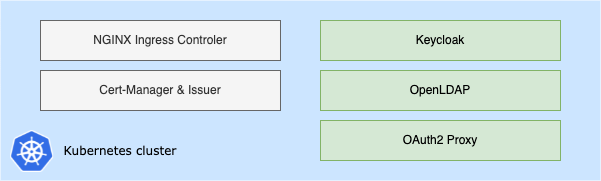

A Kubernetes cluster with ingress controller and cert-manager

You can use any Kubernetes solution, but you need to have a public domain that points to the entry point of your cluster.

Step-by-step installation documentation.

Install the SSO components

We are going to install and configure the tools that will compose the SSO solution: Keycloak, OpenLDAP and Oauth2 Proxy.

Step-by-step installation documentation.

Identification process

Here is an overview of the process when a client access the secured application for the first time, before being authentified:

Customer requests the demo app
Ingress controller redirect to OAuth2 Proxy according annotations in the demo app ingress
OAuth2 Proxy checks with Keycloak if the user is authenticated
The user is not identified, Keycloak presents the login page
The user fills in his credentials for authentcation
Keycloak passes identification datas to OAuth2 Proxy
OAuth2 Proxy informs Ingress Controller that the user is identified and is authorized to access the application
Ingress controller routes the request to the demo app

Some tests

Deploy a secured application

Now we have a SSO solution ready to use, we are going to deploy a first secured application.

We use NGINX as demo application to check if the SSO solution, including OAuth2 Proxy, is working well. In this example we want that users login with Keycloak before they can access the welcome page of NGINX.

Step-by-step installation documentation.

Then check that the demo application is secured, when you want to access it:

You get the Keycloak login page if your are not already identified
You can directly access the demo app if you are already identified

Deploy a unsecured application

In the previous test, we saw that we secure an application through ingress annotations.

So, even if OAuth2 Proxy is installed, we can still deploy unsecured applications in the cluster.

Step-by-step documentation

Simulate failure in federation

What happens if OpenLDAP goes down and the federation doesn’t work anymore ? Let’s see if we can continue authenticating to Keycloak and accessing the secured application.

Step-by-step documentation

Conclusion

It is a good introduction about how to build a SSO solution based on Keycloak in Kubernetes.

I will try to add some tests to study new use cases. But there is a lot of other configuration and features available, I need to spend more time to study everything in depth.

By the way, if you have any idea or suggestions to improve this demonstrations, please write them in comment.
