Summary

The article outlines a method for invoking an AWS Lambda function with a different IP address for each execution to avoid API rate limits, using a NAT instance in the Mumbai region.

Abstract

The author describes a technique to invoke an AWS Lambda function with a unique IP address for each execution. This is achieved by setting up a NAT instance in the Mumbai region, which is used to route traffic for the Lambda function. The process involves launching an EC2 instance with a specific AMI for NAT, configuring route tables, creating IAM roles with necessary permissions, and writing Lambda functions in Python to start and stop the NAT instance to obtain a new IP address upon each execution. The setup includes two Lambda functions: one to trigger the NAT instance and another to execute the main task and print the new IP address before stopping the NAT instance. The article emphasizes the importance of this approach to circumvent API throttling limits.

Opinions

The author believes that changing the IP address for each Lambda execution is crucial for avoiding API rate limits, which is a common issue when accessing APIs frequently.
The use of a NAT instance without an Elastic IP is a deliberate choice to ensure a new public IP is assigned each time the instance is started.
The author suggests that the setup is straightforward and effective, as evidenced by the step-by-step guide and the inclusion of code snippets for the Lambda functions.
The article implies that the described method is particularly useful for scenarios like the author's work on a CoWIN vaccine slot alert system, where frequent API calls are necessary without hitting rate limits.
The author encourages reader support by asking them to click the clap button if the post was helpful, indicating a desire for feedback and community engagement.

Invoking Lambda With A Different IP Upon Every Execution

Recently while working on creating a Lambda for Cowin vaccine slot alert, I thought of trying how we can invoke Lambda with a different IP upon every execution, so that we don’t hit the API throttling limit.

Note: We’ll be using Mumbai region. If you are using a different region, make sure you choose the correct NAT instance AMI.

Step 1: Launch an instance in Public subnet using amzn-ami-vpc-nat-2018.03.0.20200918.0-x86_64-ebs AMI. We’ll use this as our NAT instance. In the security group, allow all traffic from this security group as we’ll use the same group for Lambda function as well.

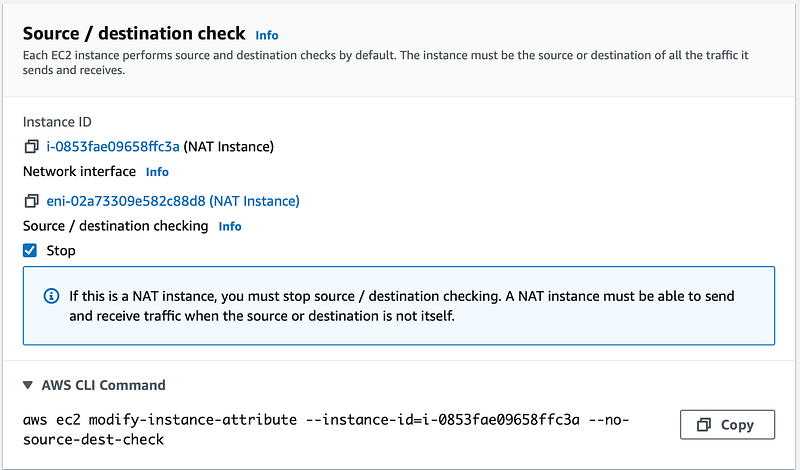

Once it’s launched, go to Actions->Networking->Change source/destination check and disable it. This is required for NAT instance to route traffic.

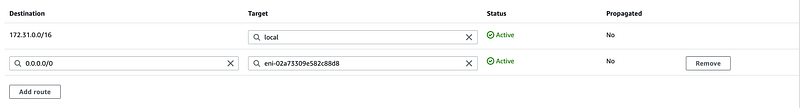

Step 2: Change the Route table of Private subnets to use NAT instance to route external traffic via NAT instance.

Step 3: Create a role for lambda which has AWSLambdaBasicExecutionRole permission, along with this policy attached to it:

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "VisualEditor0",
            "Effect": "Allow",
            "Action": [
                "ec2:CreateNetworkInterface",
                "ec2:DescribeNetworkInterfaces",
                "ec2:StartInstances",
                "lambda:InvokeFunction",
                "ec2:DeleteNetworkInterface",
                "lambda:InvokeAsync",
                "ec2:StopInstances"
            ],
            "Resource": "*"
        }
    ]
}

Step 4: Create a lambda function named trigger with the role we created and Python 3.7 as runtime. Set timeout as 5 minutes and create an event trigger to invoke this lambda every 5 minutes. Use this code and change NAT instance id.

import boto3
import time

def lambda_handler(event, context):
    client = boto3.client('lambda')
    ec2 = boto3.client('ec2')
    response = ec2.start_instances(InstanceIds=['i-0853fae09658ffc3a']) ## Specify NAT instance ID
    time.sleep(180)
    response = client.invoke(FunctionName='ip')

This function will start our NAT instance and then trigger our main lambda function. Since we are not using Elastic IP for our NAT instance, it will get a new public IP, every time it’s started.

Step 5: Create another function named ip with the role we created and Python 3.7 as runtime. In the network configuration, select our VPC and private subnets. Also, use the same security group as we had for the NAT instance. Set function timeout as 1 minute.

Use this code for our lambda function and change NAT instance id.

def lambda_handler(event, context):
    from botocore.vendored import requests
    import boto3
    ec2 = boto3.client('ec2')
    print(requests.get('http://ip.42.pl/raw').text)
    ec2.stop_instances(InstanceIds=['i-0853fae09658ffc3a']) #Specify NAT instance id

This function simply prints the public IP used by lambda(which is our NAT instance IP) and then stops our NAT instance.

That’s all for setup. Once the trigger lambda is executed, check the logs for ip lambda to make sure the setup is working fine.
