Immersive space coordinate system

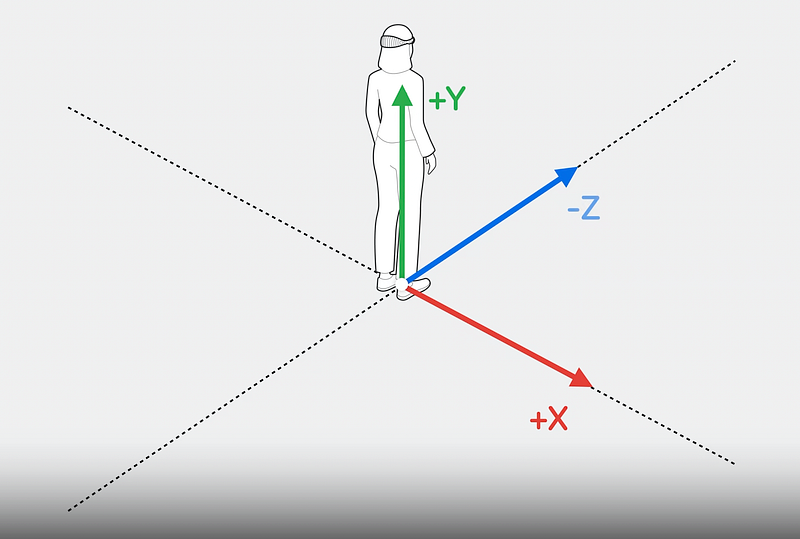

Foot is the origin of coordinates (0,0,0).

X is right direction

Y is up direction

-Z is front direction

-X is left direction

-Y is bottom direction

Z is back direction

Note: the coordinates system can be used in Reality Composer Pro for 3D object positioning. It can also be used in Xcode to programmatically change the position of the imported 3D object. For example,

var transform = value.entity.transform
transform.translation += SIMD3(0.1, 0, -0.1)
value.entity.move(
  to: transform,
  relativeTo: nil,
  duration: 3,
  timingFunction: .easeInOut
)
