How to fix error The Group Policy settings for BitLocker startup options are in conflict and cannot be applied

ERROR: An error occurred (code 0x8031005b): The Group Policy settings for BitLocker startup options are in conflict and cannot be applied. Contact your system administrator for more information.

I got this error when I attempted to encrypt a virtual hard drive (.vhd) that I created as a backup disk.

Platform: Microsoft Windows [Version 10.0.19043.1348]

FIX:

Open Policy settings:

gpedit.msc

Go to “Local Computer Policy > Administrative Templates > Windows Components > BitLocker Drive Encryption > Operating System Drives”

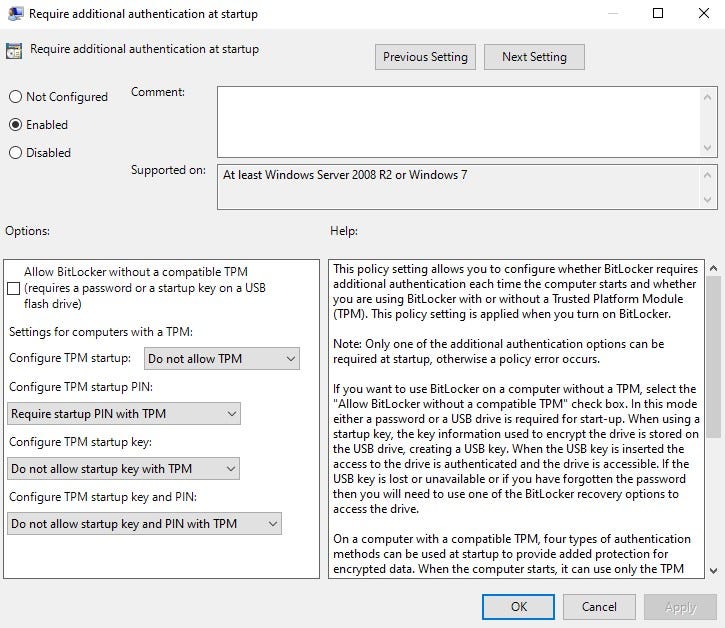

Select the following Item: “Require additional authentication at startup”

Local Group Policy Editor

Change the following:

Change it to “Enabled”

Uncheck “Allow BitLocker without a compatible TPM”

Change “Configure TPM startup” to “Do not allow TPM”

Change “Configure TPM startup PIN” to “Require startup PIN with TPM”

Change “Configure TPM startup key” to “Do not allow startup key with TPM”

Change “Configure TPM startup key and PIN” to “Do not allow startup key and PIN with TPM”

Click “Apply” and “OK”

Require additional authentication at startup

Open regedit

Find key: Computer\HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Microsoft\FVE

Export for backup and delete it.

Open Terminal and execute:

gpupdate /force /target:computer

To encrypt the drive F:

manage-bde -on f: -rp

Result should be something like:

Volume F: [Data Volume]

Hope it helps!
