EVM Puzzle full solution

As you dive into Solidity, it’s quite important to understand what opcodes are and how to use them. I strongly recommend checking this link :

https://www.evm.codes/?fork=grayGlacier

What are the EVM puzzles?

This is a set of 10 puzzles created by Franco Victorio (https://github.com/fvictorio) to get us more comfortable with opcodes. You can find it in the below link. Follow the instruction to get started: https://github.com/fvictorio/evm-puzzles

What are opcodes?

You can understand “opcode” as low-level human-readable instructions to program. Let’s take a look at the following contract:

// SPDX-License-Identifier: GPL-3.0
pragma solidity >=0.7.0 <0.9.0;

contract Sum {

  uint256 a = 5;

  uint256 b = 10;

  bool isItTrue = true;

  function addNumbers() public view returns (uint256) {

    return a+b;

  }

}

Here would be the resulting opcode:

000 PUSH1 80

002 PUSH1 40

004 MSTORE

005 PUSH1 05

007 PUSH1 00

009 SSTORE

010 PUSH1 0a

012 PUSH1 01

014 SSTORE

015 PUSH1 01

017 PUSH1 02

019 PUSH1 00

021 PUSH2 0100

024 EXP

025 DUP2

026 SLOAD

027 DUP2

028 PUSH1 ff

030 MUL

031 NOT

032 AND

033 SWAP1

034 DUP4

035 ISZERO

036 ISZERO

037 MUL

038 OR

039 SWAP1

040 SSTORE

041 POP

042 CALLVALUE

043 DUP1

044 ISZERO

045 PUSH2 0035

048 JUMPI

049 PUSH1 00

051 DUP1

052 REVERT

053 JUMPDEST

054 POP

055 PUSH2 0154

058 DUP1

059 PUSH2 0045

062 PUSH1 00

064 CODECOPY

065 PUSH1 00

067 RETURN

068 INVALID

069 PUSH1 80

071 PUSH1 40

073 MSTORE

074 CALLVALUE

075 DUP1

076 ISZERO

077 PUSH2 0010

080 JUMPI

081 PUSH1 00

083 DUP1

084 REVERT

085 JUMPDEST

086 POP

087 PUSH1 04

089 CALLDATASIZE

090 LT

091 PUSH2 002b

094 JUMPI

095 PUSH1 00

097 CALLDATALOAD

098 PUSH1 e0

100 SHR

101 DUP1

102 PUSH4 3a2f9eb7

107 EQ

108 PUSH2 0030

111 JUMPI

112 JUMPDEST

113 PUSH1 00

115 DUP1

116 REVERT

117 JUMPDEST

118 PUSH2 0038

121 PUSH2 004e

124 JUMP

125 JUMPDEST

126 PUSH1 40

128 MLOAD

129 PUSH2 0045

132 SWAP2

133 SWAP1

134 PUSH2 0074

137 JUMP

138 JUMPDEST

139 PUSH1 40

141 MLOAD

142 DUP1

143 SWAP2

144 SUB

145 SWAP1

146 RETURN

147 JUMPDEST

How does it work?

Each of these instructions is readable and the full list can be found here: https://www.evm.codes/. The first instructions can be read in the execution order. First, we push a value, then store it … It will be way clearer in the puzzles :-)

Important, these opcodes are compiled into bytecode that looks like this :

60806040526005600055600a6001556001600260006101000a81548160ff02191690831515021790555034801561003557600080fd5b50610154806100456000396000f3fe608060405234801561001057600080fd5b506004361061002b5760003560e01c80633a2f9eb714610030575b600080fd5b61003861004e565b6040516100459190610074565b60405180910390f35b6000600154600054610060919061008f565b905090565b61006e816100e5565b82525050565b60006020820190506100896000830184610065565b92915050565b600061009a826100e5565b91506100a5836100e5565b9250827fffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffff038211156100da576100d96100ef565b5b828201905092915050565b6000819050919050565b7f4e487b7100000000000000000000000000000000000000000000000000000000600052601160045260246000fdfea26469706673582212203fed942253f5a012c3422013c4601688071a02a565ae8eda725cf0409a454bf364736f6c63430008070033

That you can read by decomposing it such as :

6080 => PUSH1 80

6040 => PUSH1 40

…

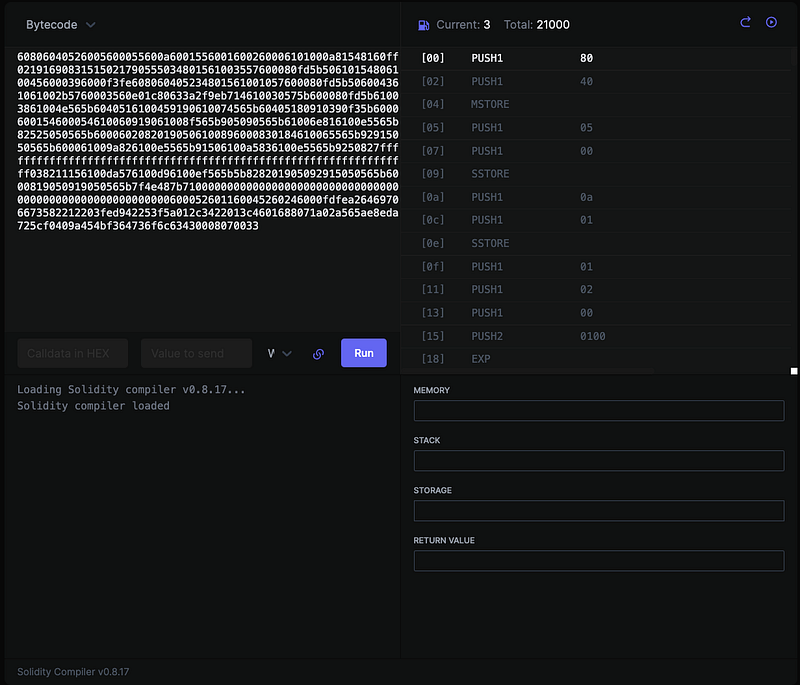

How to use EVM opcode playground

To use the playground, you can go to this address:https://www.evm.codes/playground

There are a few things to understand here :

• As you as see, I pasted the Bytecode of the above contract, but you can set it to Yul, Solidity, and Mnemonic.
• You can pass it a calldata or a value.
• Use the blue arrow on the top right to go through all opcodes, step by step, see the stack, memory, storage, and return value evolving as you go through the code.

Detailed solution

Let’s dive deeper into all the puzzles. We are presented with a set of 10 puzzles and the goal of each of them is to reach the JUMPDEST.

On https://www.evm.codes/ we can reproduce these puzzles and place them around. The goal is to force us to make some research on the opcodes and understand what’s happening under the hood.

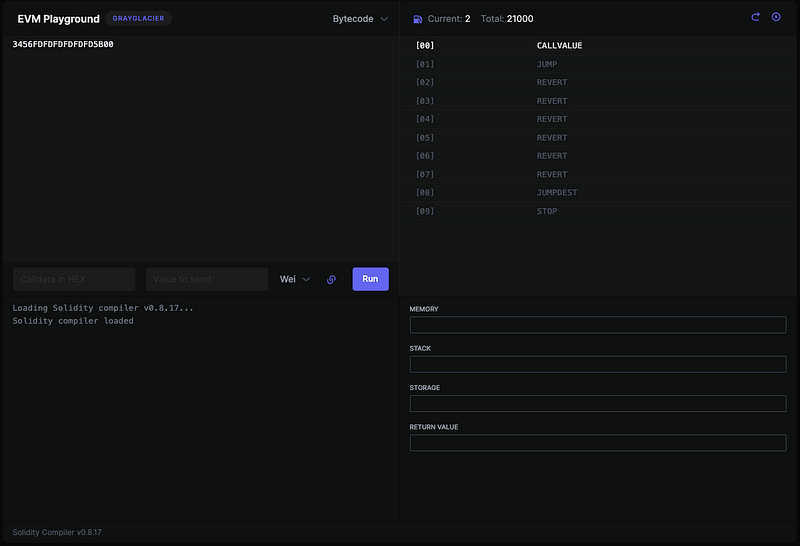

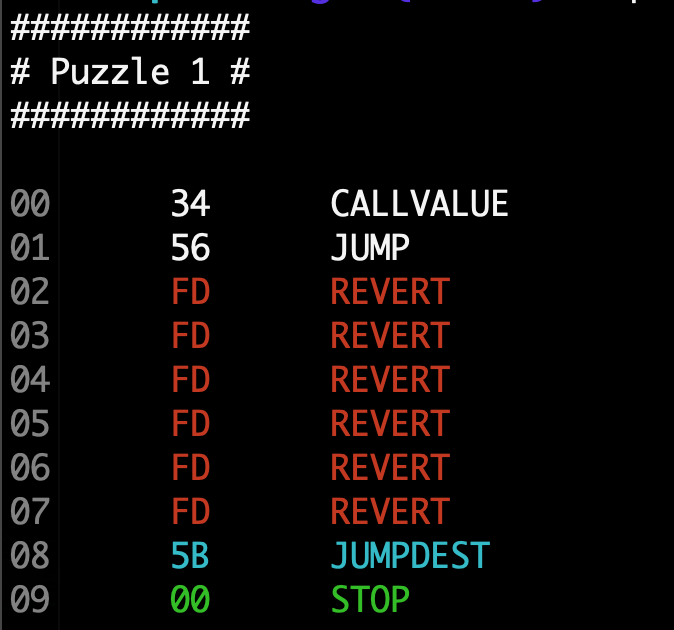

Puzzle 1

Let’s decompose it:

• CALLVALUE opcode that gets the deposited value by the instruction/transaction [value we pass in wei in this case].
• The JUMP opcode will grab the last value of the stack and jump to this destination on the code.

Once this is understood we quickly realize that if we want to reach JUMPDEST, position 08, the CALLVALUE has to be 8.

NB: you can make your experimentation on the playground. The solution is 8 wei.

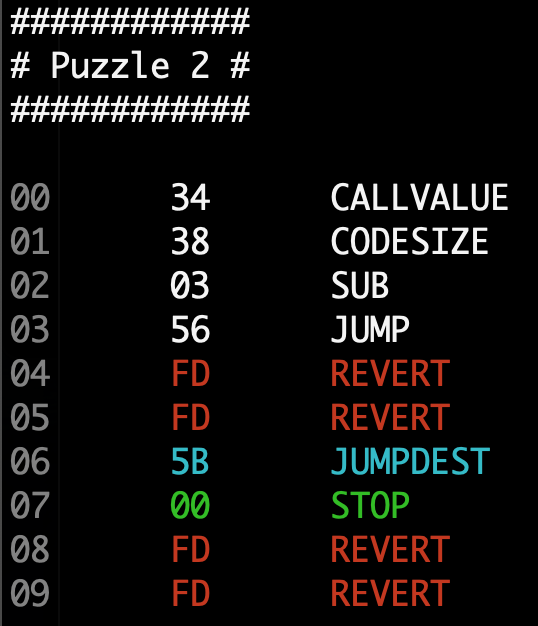

Puzzle 2

Let’s decompose this second puzzle :

• CALLVALUE opcode again, so we know we will have to pass a value and it will be added on top of the stack.
• CODESIZE this opcode represents the size of the code we have here, so basically 10 ( 00–01–02–03 … 09 ).
• SUB, if we check on the documentation, the SUB opcode takes the value on top of the stack ( CODESIZE ) and subtracts the value right after it ( CALLVALUE).

Knowing that we want to reach JUMPDEST again,

We simply need to solve the following: 10-X = 6

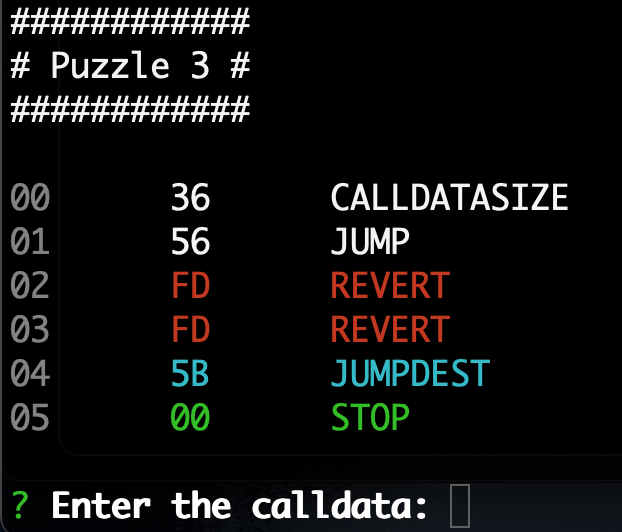

Puzzle 3

New puzzle, new opcodes! :)

Moreover, if we pay attention to the prompt, we need to enter the calldata and not a value in this case!

• CALLDATASIZE opcode takes a value in bytes size.

To reach our JUMPDEST ( 04 )

We need to convert 04 to bytes which are 0xFFFFFFFF

0x — define bytes

4 x FF — represent 4 bytes

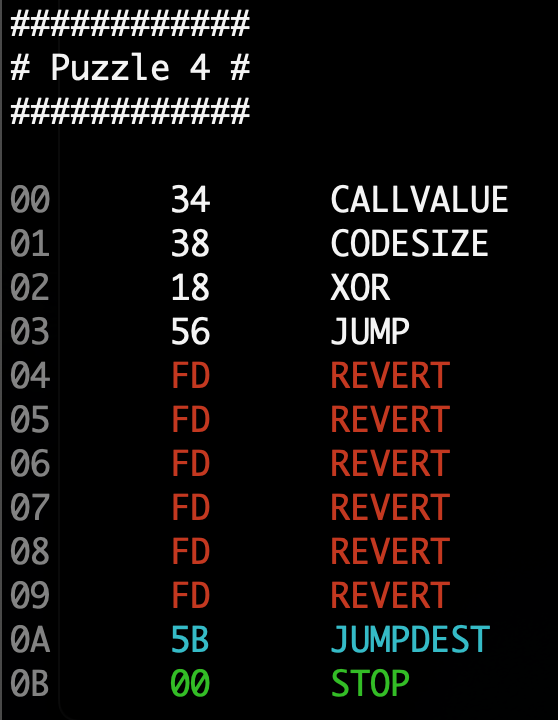

Puzzle 4

• CALLVALUE — we know we will have to pass a value here
• CODESIZE — so here we have numeric until 9 then it goes 0A 0B so the total code size is 0C <-> 12 bytes
• XOR — This one is a bit tricky, so keep in mind that in the stack we need have “x” ( To be found).

The Stack is a LIFO queue, so when the XOR will be applied it would be like this: XOR(CODESIZE, CALLVALUE)

We know that the result of XOR(12, CALLVALUE ) must be equal to 10 — JUMPDEST

Therefore, the result is 6 :-)

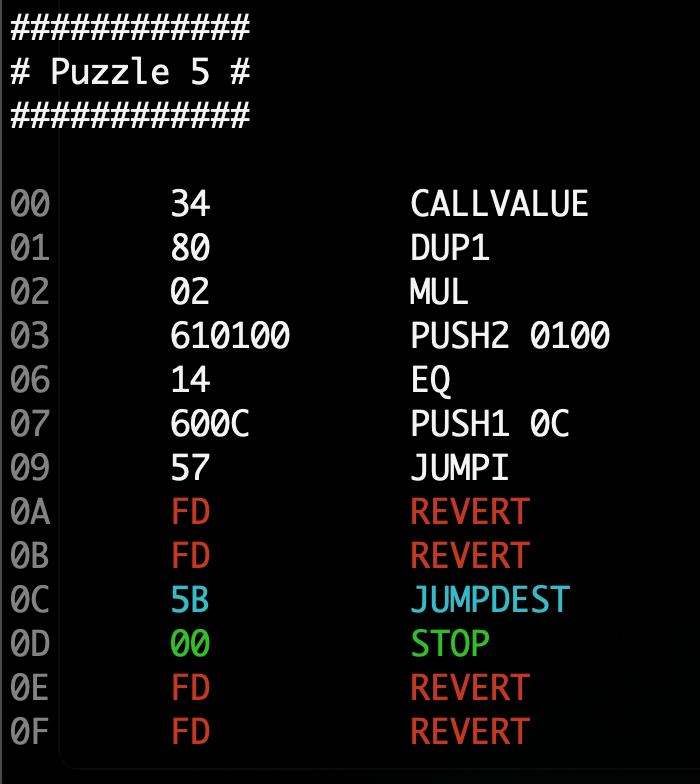

Puzzle 5

• Again we have to pass a CALLVALUE
• DUP1 — Duplicate the first item in the stack ( here, CALLVALUE )
• MUL — multiply the last 2 items on the stack → CALLVALUE * CALLVALUE
• PUSH2 0100 — Place 2 bytes item on the stack
• EQ — will check the equality of the last 2 items in the stack (the result of MUL == 100 ? ) return 1 if true, 0 if false
• PUSH1 0C — Place 1byte item on the stack which is 0C in this case

Therefore, we need to find a value * value == 0x0100

! 0x0100 in decimal == 256

So 16 * 16 = 256 :-)

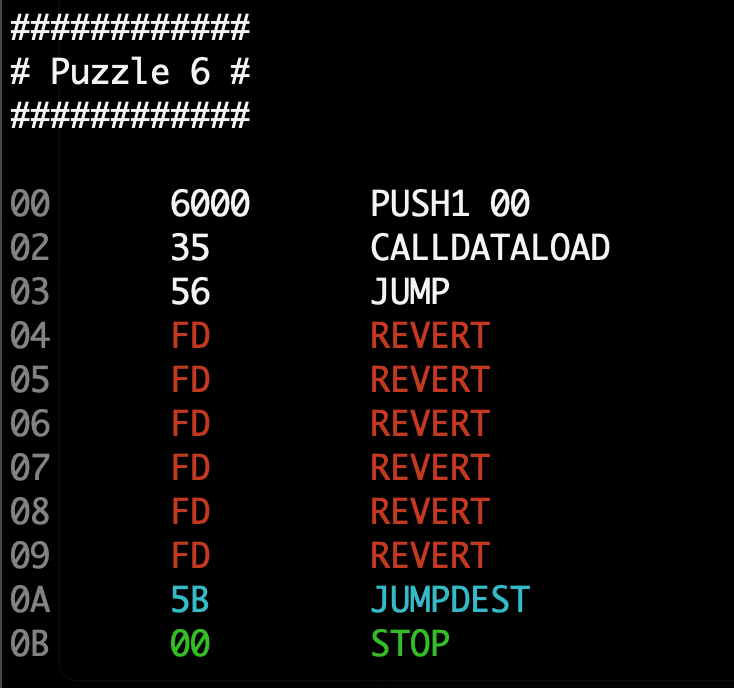

Puzzle 6

In this puzzle, the first instruction is a PUSH1 with a 0 value.

Then we have a new opcode: CALLDATALOAD which will take the last value in the stack ( 0 ) as an index. So we are reading the calldata with an offset of 0, so an entire 32 bytes of data.

So we know the offset index is a value of 0 that we need inside of calldata that will jump us a position 0A ( JUMPDEST)

The solution is: 0x000000000000000000000000000000000000000000000000000000000000000A

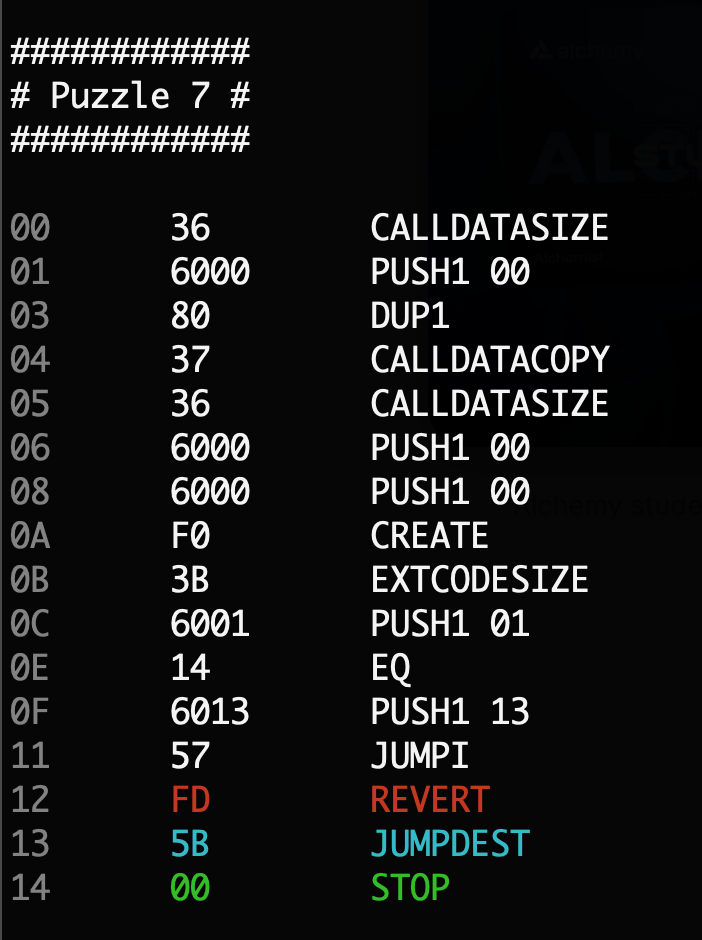

Puzzle 7

See the breakdown:

• CALLDATASIZE: Get the size of input data in the current environment
• PUSH1 00: Push 00 in the first position of the stack
• DUP1: will duplicate the 1st stack item ( 00 )
• CALLDATACOPY: pops 3 values from the stack and copies the calldata value from the transaction data to memory:

destOffset ( 0 ) offset ( 0 ) size (CALLDATASIZE)

Will return bytes in memory

• CALLDATASIZE: same as above
• PUSH1 00
• PUSH1 00
• CREATE: pops 3 values from the stack. This will actually deploy a new contract and returns the address of the deployed contract that is pushed to the stack.

1. value — value in wei to send to the new contract address

2. offset — byte offset from where you want to start to copy the new contract’s code from the memory

3. size — byte size to copy ( size of the initialization code )

Returns the address of the deployed contract, if 0, failed

• EXTCODESIZE: get the size in. bytes of the deployed contract

Here we need to contract size code to be 1.

• EQ: equality comparison, return 1 if true, 0 if false.
• PUSH1 13
• JUMPI

Note on Create:

The create opcode gets executed in the transaction, returning a copy of the runtime code.

⚠️ constructor is part of the creation code, but NOT the runtime code

The runtime byte code is the part of the code saved in the blockchain as the contract runtime code.

When the CREATE opcode is executed, only the code returned by the RETURN opcode will be the runtime code that will be executed in the future once the contract is called.

Here is what we want 600060005360016000F3

Will return 1-byte code.

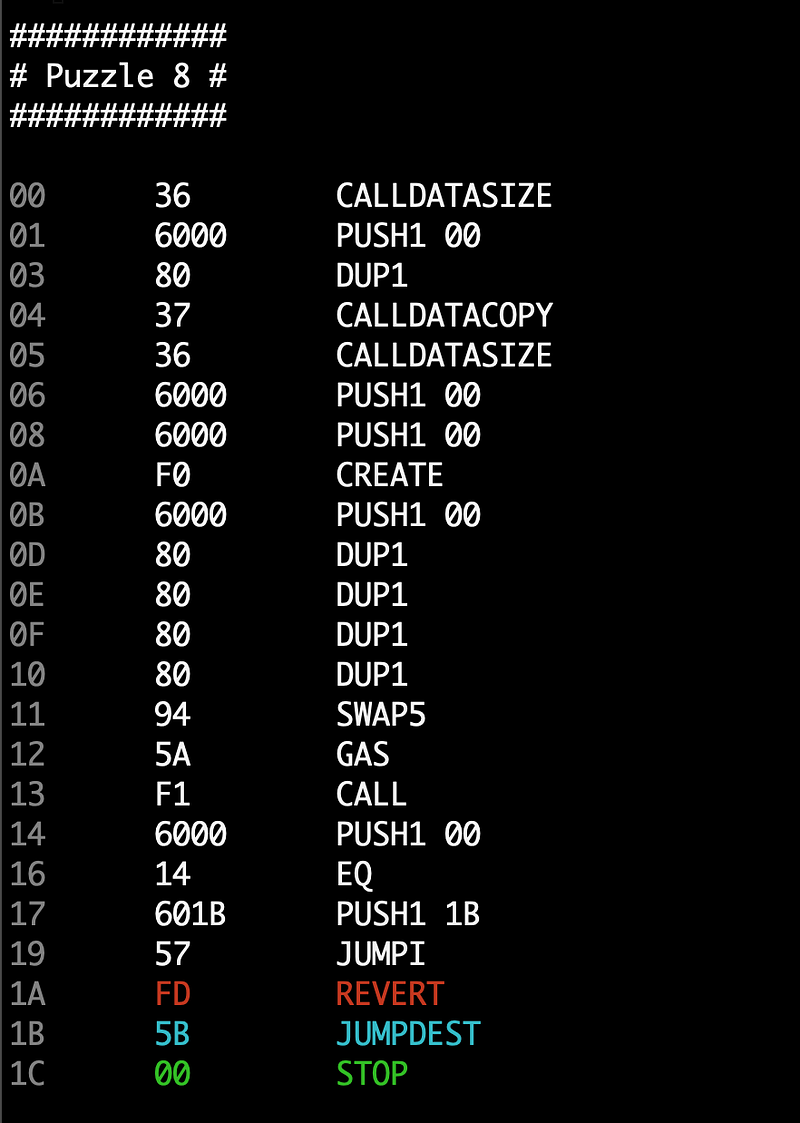

Puzzle 8

We can see that the first chunk of code is the same as puzzle 7 so I won’t go through it.

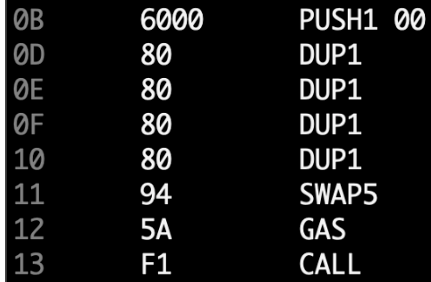

Let’s look a the second big chunk:

• CALL opcode creates a new sub-context and executes the code present in the external account. It will also pop 7 elements from the stack.

1. Gas: the amount of gas to send to the sub-context to execute
2. Address: an account in which context to execute
3. Value: value in wei to send
4. ArgsOffset: byte offset in the memory in bytes [Call data of the sub context]
5. ArgSize: byte size to copy [Byte size of the call data]
6. RetOffset: byte offset in the memory in bytes, where to store the return data of the subcontext.
7. RetSize: byte size to copy

• SWAP5: this opcode will swap the opcode in position 0 with the one in position 5

At this moment here is where we stand:

CALL(ALL_THE_GAS_AVAILABLE,ADDRESS_FROM_CREATE,0,0,0,0,0)

Will return 0 if the call is reverted, otherwise 1.

Then there is the last chunk:

So basically, we need to make the call revert to having 0.

Then PUSH1 00

EQ 0 == 0 => 1

Here is an example that would revert: 0x60FD60005360016000F3

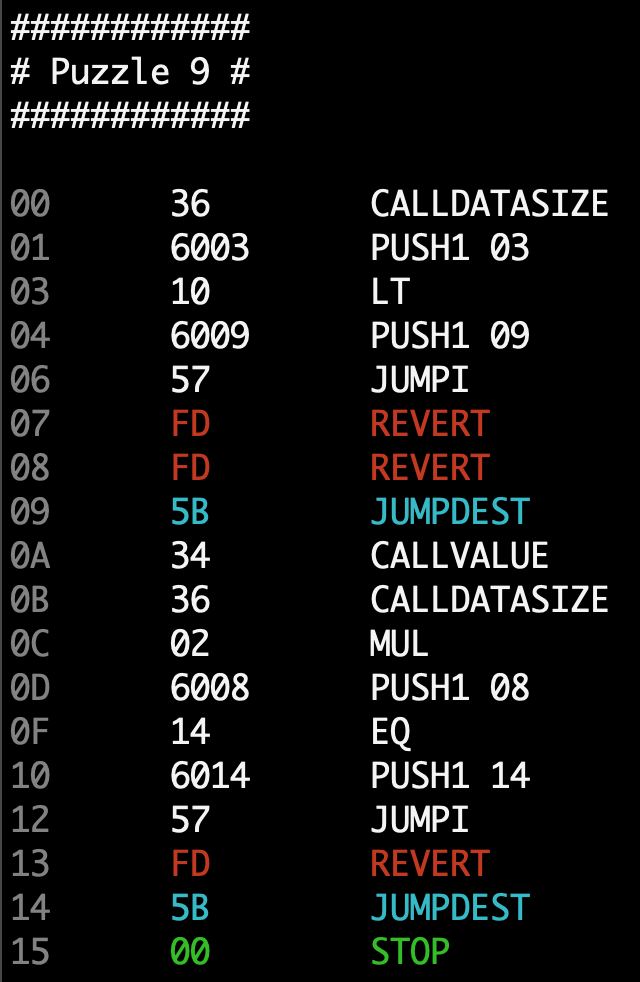

Puzzle 9

So for this puzzle, the interesting point is that we will have to pass a value in wei and a calldata for this level.

Here, we have a new opcode: LT it pops 2 values (a,b) from the stack and pushes the results.

a < b => 1

a > b => 0

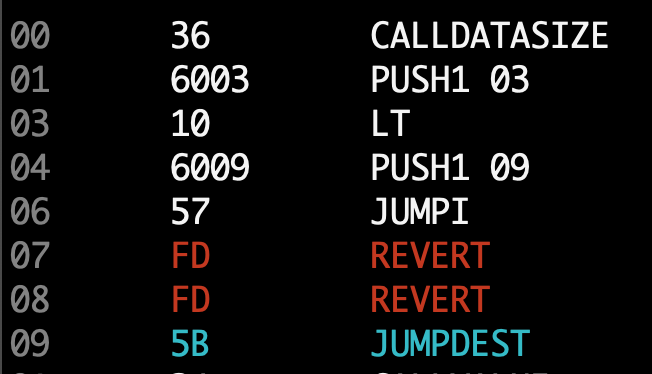

In the first chunk of code, we need to make the CALLDATASIZE greater or equal to 3.

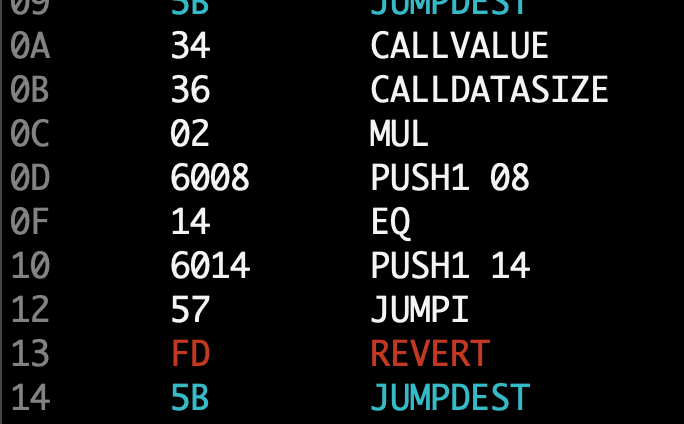

Then here, we have the MUL(CALLDATASIZE, CALLVALUE) = 8

So that could be either:

CALLDATASIZE = 4 ( 0xFFFFFFFF )

CALLVALUE = 2

OR

CALLDATASIZE = 8 ( 0xFFFFFFFFFFFFFFFF )

CALLVALUE=1

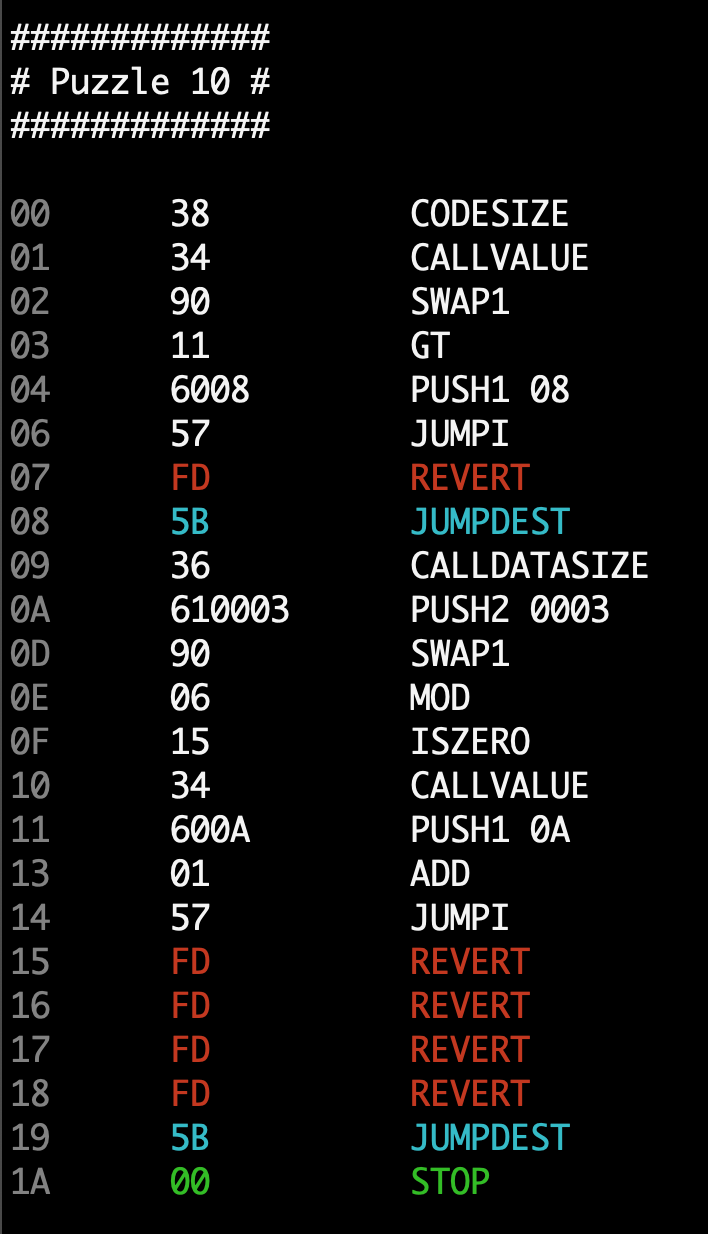

Puzzle 10

Here once again, we will have to pass a value && calldata.

Let’s break it down:

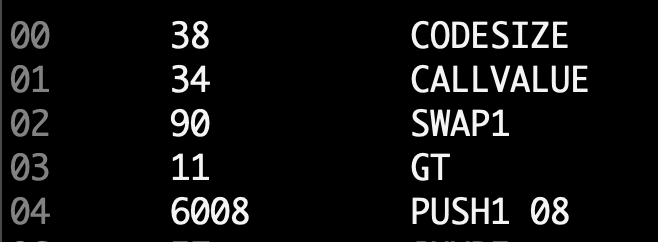

There is a new opcode here, GT, pop 2 values from the stack and push the result of a > b.

The code size in our case is 0x1b ( 27 in decimal )

a > b => 1

a < b => 0

So:

GT(CODESIZE,CALLVALUE)

GT(27,CALLVALUE)

CALLVALUE must be ≤ 27 ( 1b in hex )

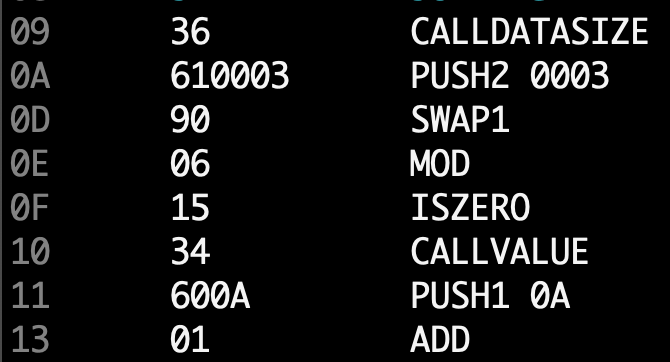

Here we have some new opcodes as well:

• MOD: pop2 values from the stack and push back to the stack the result of a % b
• ISZERO: pop a value A from the stack and push the result of a === 0 to the stack

ISZERO( CALLDATA SIZE % 3 ) ( 3 from PUSH2 0003 )

ADD(CALLVALUE, 0A) = 0x19 ( 25 in decimal) the destination

Based on this, ISZERO results must be equal to 1

This is a possible answer:

CALLVALUE: 15

CALLDATA: 0xFFFFFFFFFFFF

NB: You can find my solutions here: https://github.com/Simon-Busch/evm-puzzles
