Essential Guide to GitLab CI/CD Catalog Components

GitLab CI/CD (Continuous Integration and Continuous Deployment) is an integral part of the GitLab platform, providing automated pipelines for testing, building, and deploying code. CI/CD helps ensure that code changes are reliable and stable, automating repetitive tasks and facilitating faster releases.

Current Landscape of GitLab CI/CD

GitLab CI/CD is widely adopted in various industries due to its robust features and flexibility. One of the significant advantages of using GitLab CI/CD is the ability to write templates for the .gitlab-ci.yml file. This approach is particularly beneficial for large-scale projects where multiple repositories require consistent CI/CD configurations.

By using templates, you can streamline your workflows, reduce duplication, and accelerate development processes. Templates allow teams to define standard CI/CD practices and reuse them across different projects, ensuring consistency and efficiency. This means less time spent on writing and maintaining individual CI/CD configurations for each project, and more time focusing on development and innovation.

GitLab CI/CD Templates

GitLab CI/CD templates are pre-defined configurations for various programming languages and frameworks that can be easily integrated into your projects. These templates are designed to simplify the setup process and ensure best practices are followed. You can find templates for languages like Python, Java, Ruby, and frameworks like Django, Spring Boot, and many more.

Using these templates, you can quickly create a .gitlab-ci.yml file tailored to your specific needs, reducing the time required to set up CI/CD pipelines from scratch. This not only speeds up the initial setup but also helps maintain consistency across different projects within your organization.

Latest GitLab CI/CD Catalog

The latest GitLab CI/CD catalog introduces an organized way to manage and discover CI/CD components, such as job definitions, pipeline configurations, and reusable templates. This catalog is designed to help teams find and use pre-defined CI/CD components, promoting reuse and standardization across projects.

The GitLab CI/CD catalog includes various components like:

Job Templates: Pre-defined jobs that can be included in your .gitlab-ci.yml files to perform specific tasks like code linting, testing, and deployment.
Pipeline Templates: Complete pipeline configurations that define a series of jobs and stages for complex CI/CD workflows.
Reusable Templates: Components that can be used across different projects to ensure consistency and reduce maintenance overhead.

Using the CI/CD catalog, you can easily browse and integrate these components into your projects, improving efficiency and collaboration within your team.

Example Template Structure and File

Here is an example of a folder structure and a template file for GitLab CI/CD:

.
├── LICENSE
├── README.md
└── templates
    ├── test.yml
    └── build.yml

Example Template File: test.yml

spec:
  inputs:
    STAGE:
      default: test
      description: Defines the test stage
    DOCKER_VERSION:
      default: dind
      description: Specify the Docker version, use values from https://hub.docker.com/_/docker. Defaults to dind
    CI_ENVIRONMENT_NAME:
      default: $CI_ENVIRONMENT_NAME
      description: Environment name for the CI
    DOCKER_PLATFORM:
      default: $DOCKER_PLATFORM
      description: Docker platforms to build
    DOCKER_REGISTRY:
      default: $DOCKER_REGISTRY
      description: Docker registry URL- <$AWS_ACCOUNT_ID>.dkr.ecr.$AWS_DEFAULT_REGION.amazonaws.com/<$ECR_REPOSITORY_NAME>
    DOCKER_LOGIN:
      default: $DOCKER_LOGIN
      description: Docker login command- aws ecr get-login-password --region $AWS_DEFAULT_REGION | docker login --username AWS --password-stdin $DOCKER_REGISTRY
    DOCKER_FILE_IMAGE:
      default: $DOCKER_FILE_IMAGE
      description: Dockerfile image name
    DOCKER_ADDITIONAL_ARG:
      default: $DOCKER_ADDITIONAL_ARG
      description: Additional Docker arguments
    AWS_ACCESS_KEY_ID:
      default: $AWS_ACCESS_KEY_ID
      description: AWS Access Key ID
    AWS_SECRET_ACCESS_KEY:
      default: $AWS_SECRET_ACCESS_KEY
      description: AWS Secret Access Key
    AWS_DEFAULT_REGION:
      default: $AWS_DEFAULT_REGION
      description: AWS Default Region
---
services:
  - docker:dind

test-with-aws-ecr-private-$[[ inputs.DOCKER_VERSION ]]:
  stage: $[[ inputs.STAGE ]]
  script:
    - apk add bash curl aws-cli
    - ln -s $(which aws) /bin/aws-cli || true
    - curl -fsSL https://gitlab.com/opslabhq/shared/ci/template/raw/main/ecr-private/docker_buildx_ecr_private.sh | bash -s -- check_build_docker_buildx
    - curl -fsSL https://gitlab.com/opslabhq/shared/ci/template/raw/main/ecr-private/docker_buildx_ecr_private.sh | bash -s -- test_build_docker_buildx
  image: docker:$[[ inputs.DOCKER_VERSION ]]

Explanation

The spec: block defines the inputs that can be used to parameterize the pipeline jobs.

spec:

STAGE: Specifies the build stage. The default value is test. This can be overridden to specify different stages of the pipeline.

inputs:
    STAGE:
      default: test
      description: Defines the test stage

DOCKER_VERSION: Specifies the Docker version to use. The default is dind (Docker-in-Docker). Users can specify a different version from the Docker Hub.

    DOCKER_VERSION:
      default: dind
      description: Specify the Docker version, use values from https://hub.docker.com/_/docker. Defaults to dind

CI_ENVIRONMENT_NAME: Sets the environment name for the CI based on the environment variable.

    CI_ENVIRONMENT_NAME:
      default: $CI_ENVIRONMENT_NAME
      description: Environment name for the CI

DOCKER_PLATFORM: Specifies the Docker platforms to build.

    DOCKER_PLATFORM:
      default: $DOCKER_PLATFORM
      description: Docker platforms to build

DOCKER_REGISTRY: Specifies the Docker registry URL, typically in the format <AWS_ACCOUNT_ID>.dkr.ecr.$AWS_DEFAULT_REGION.amazonaws.com/<ECR_REPOSITORY_NAME>.

    DOCKER_REGISTRY:
      default: $DOCKER_REGISTRY
      description: Docker registry URL- <$AWS_ACCOUNT_ID>.dkr.ecr.$AWS_DEFAULT_REGION.amazonaws.com/<$ECR_REPOSITORY_NAME>

DOCKER_LOGIN: Specifies the Docker login command using AWS ECR.

    DOCKER_LOGIN:
      default: $DOCKER_LOGIN
      description: Docker login command- aws ecr get-login-password --region $AWS_DEFAULT_REGION | docker login --username AWS --password-stdin $DOCKER_REGISTRY

DOCKER_FILE_IMAGE: Specifies the Dockerfile image name to use.

    DOCKER_FILE_IMAGE:
      default: $DOCKER_FILE_IMAGE
      description: Dockerfile image name

DOCKER_ADDITIONAL_ARG: Specifies additional Docker arguments.

    DOCKER_ADDITIONAL_ARG:
      default: $DOCKER_ADDITIONAL_ARG
      description: Additional Docker arguments

AWS_ACCESS_KEY_ID: Uses the AWS Access Key ID from the environment variables.

    AWS_ACCESS_KEY_ID:
      default: $AWS_ACCESS_KEY_ID
      description: AWS Access Key ID

AWS_SECRET_ACCESS_KEY: Uses the AWS Secret Access Key from the environment variables.

    AWS_SECRET_ACCESS_KEY:
      default: $AWS_SECRET_ACCESS_KEY
      description: AWS Secret Access Key

AWS_DEFAULT_REGION: Uses the AWS Default Region from the environment variables.

    AWS_DEFAULT_REGION:
      default: $AWS_DEFAULT_REGION
      description: AWS Default Region

services: Specifies that the job will use the docker:dind (Docker-in-Docker) service, allowing Docker commands to be run within the CI job.

services:
  - docker:dind

stage: Specifies the stage of the job. This is dynamically set based on the STAGE input.

  stage: $[[ inputs.STAGE ]]

script: Defines the commands to run in the job.

  script:
    - apk add bash curl aws-cli
    - ln -s $(which aws) /bin/aws-cli || true
    - curl -fsSL https://gitlab.com/opslabhq/shared/ci/template/raw/main/ecr-private/docker_buildx_ecr_private.sh | bash -s -- check_build_docker_buildx
    - curl -fsSL https://gitlab.com/opslabhq/shared/ci/template/raw/main/ecr-private/docker_buildx_ecr_private.sh | bash -s -- test_build_docker_buildx

apk add bash curl aws-cli: Installs bash, curl, and aws-cli without using the cache.
ln -s $(which aws) /bin/aws-cli || true: Creates a symbolic link for aws-cli, ignoring errors if the link already exists.
curl -fsSL https://gitlab.com/opslabhq/shared/ci/template/raw/main/ecr-private/docker_buildx_ecr_private.sh | bash -s -- check_build_docker_buildx: Downloads and runs a script to check the Docker Buildx setup.
curl -fsSL https://gitlab.com/opslabhq/shared/ci/template/raw/main/ecr-private/docker_buildx_ecr_private.sh | bash -s -- test_build_docker_buildx: Downloads and runs a script to test the Docker Buildx setup.

image: Specifies the Docker image to use for the job. This is dynamically set to the Docker image version specified in the DOCKER_VERSION input.

  image: docker:$[[ inputs.DOCKER_VERSION ]]

Publishing GitLab Catalog with Semantic Versioning

Once you’ve created your GitLab CI/CD templates, it’s essential to manage their versions and publish them correctly to ensure consistency and reliability across projects. One effective way to achieve this is by using semantic versioning and GitLab tags. This section will guide you through the process of writing a .gitlab-ci.yml file to automate the release process and contribute your templates to the GitLab CI/CD catalog.

Finding the .gitlab-ci.yml file

https://gitlab.com/opslabhq/shared/ci/template/-/blob/main/gitlab-release/.gitlab-ci.yml

The .gitlab-ci.yml file below demonstrates how to automate the process of preparing release notes and creating releases using GitLab tags and semantic versioning. This setup ensures that your templates are versioned properly and published to the GitLab CI/CD catalog.

Explanation

prepare_job: This job prepares the release notes by fetching the changelog for the specific tag and saving it to release_notes.md.
It runs only if the commit is tagged with a semantic version (e.g., v1.0.0).
The job installs curl and jq to handle HTTP requests and JSON parsing.
It uses the GitLab API to fetch the changelog and save the notes to release_notes.md.
release_job: This job creates the release using the prepared release notes.
It runs only if the commit is tagged with a semantic version.
It installs curl and jq to handle HTTP requests and JSON parsing.
It uses the GitLab API to create the release and the release-cli tool to publish it.

Enabling GitLab CI/CD Catalog

To contribute your templates to the GitLab CI/CD catalog, follow these steps:

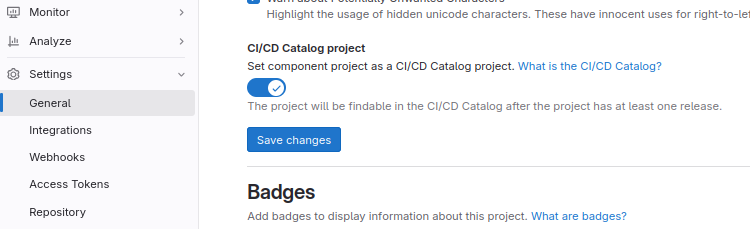

Navigate to your GitLab project.
Go to Settings > General.
Scroll down to Visibility, project features, permissions and enable the CI/CD Catalog project.

This allows your project to be listed in the GitLab CI/CD catalog, making your templates available for reuse across different projects.

You can check out the latest GitLab CI/CD catalog gallery here:

CI/CD Catalog · GitLab

GitLab.com

gitlab.com

Once published, you can find your catalog listed:

Example Workflow

Here’s a workflow example that includes shared components and sets up your CI/CD environment for testing and building Docker images.

---
# ... in case you absolutely know what you are doing and are
# aware that this may introduce breaking changes, you may use the latest release:
include:
  - component: gitlab.com/opslabhq/shared/ci/aws-ecr-private/test@~latest
  - component: gitlab.com/opslabhq/shared/ci/aws-ecr-private/build@~latest

variables:
  CI_ENVIRONMENT_NAME: $CI_COMMIT_REF_NAME
  DOCKER_FILE_IMAGE: $CI_PROJECT_DIR/Dockerfile
  DOCKER_PLATFORM: linux/amd64,linux/arm64
  DOCKER_REGISTRY: <$AWS_ACCOUNT_ID>.dkr.ecr.$AWS_DEFAULT_REGION.amazonaws.com/<$ECR_REPOSITORY_NAME>
  DOCKER_LOGIN: aws ecr get-login-password --region $AWS_DEFAULT_REGION | docker login --username AWS --password-stdin $DOCKER_REGISTRY
  DOCKER_ADDITIONAL_ARG: ""

workflow:
  rules:
    - if: '$CI_MERGE_REQUEST_ID'
      when: never
    - when: always

before_script:
  - set -o errexit -o pipefail

stages: [test, build]

Conclusion

By following these steps, you can ensure that your GitLab CI/CD templates are properly versioned, published, and made available in the GitLab CI/CD catalog. This approach leverages semantic versioning and GitLab tags to automate the release process, enhancing consistency and efficiency in your CI/CD workflows. Whether you’re managing a small project or a large-scale CI/CD environment, this method provides the tools you need to maintain high standards and accelerate development.

Reference

Catalog Announcement: Introducing the GitLab CI/CD Catalog Beta
Catalog Documentation: GitLab CI/CD Components
GitLab Catalog: Explore Catalog
Release .gitlab-ci.yml File Example: GitLab Release Template
Full Article Example: GitLab CI/CD Template

Feel free to explore these resources to better understand and implement versioned CI/CD templates in GitLab.

Author’s Note

For detailed instructions on setting up each tool and more advanced configurations, refer to the respective documentation. This guide provides a foundational approach and can be extended based on your specific use case.
