Design a Data Table Component | FrontEnd System Design Interview

I’m starting a series to practice the frontend system design interview questions. This is the very first article and I plan to work on other questions like Design a WYSIWYG editor, YouTube, Facebook, Netflix, etc.

Check out the YouTube video that I made for this practice:

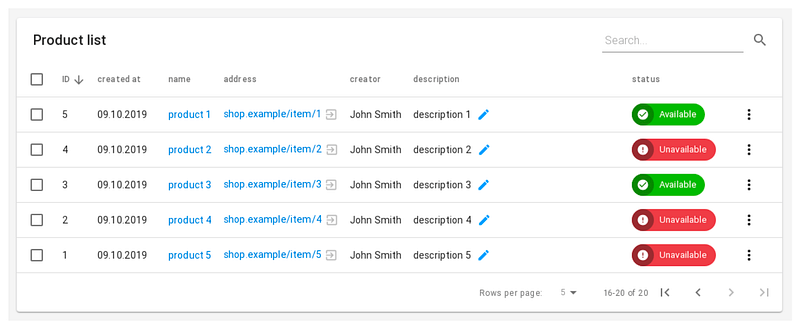

Mock up

I plan to discuss about:

1. Requirements 2. API/Data flow 3. Component architecture / UI State & Props 4. Performance 5. Accessibility 6. I18N 7. Cross-device

Functional Requirements:

1. Table should have a header 2. Table columns should be configurable (Name, width, order, sortable, editable) 3. Table rows should be selectable(multi-select, single-select) 4. Table columns could include JSX Element or primitive types. 4. Table could have a filter (client side vs server side) 5. Table could have a pagination component 6. Page size could be configurable

Non-functional requirements:

1. Table components should avoid unnecessary re-render 2. Table should support accessibility & internationalization 3. Should have cross-device support. — responsive on mobile

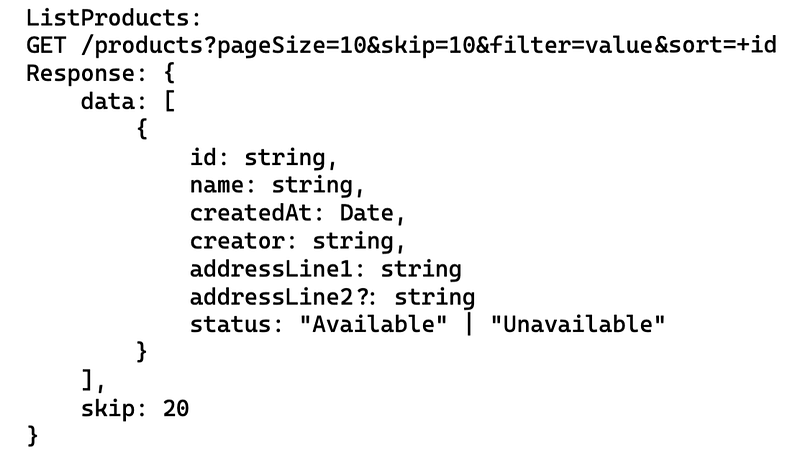

API/Dataflow

Component Architecture

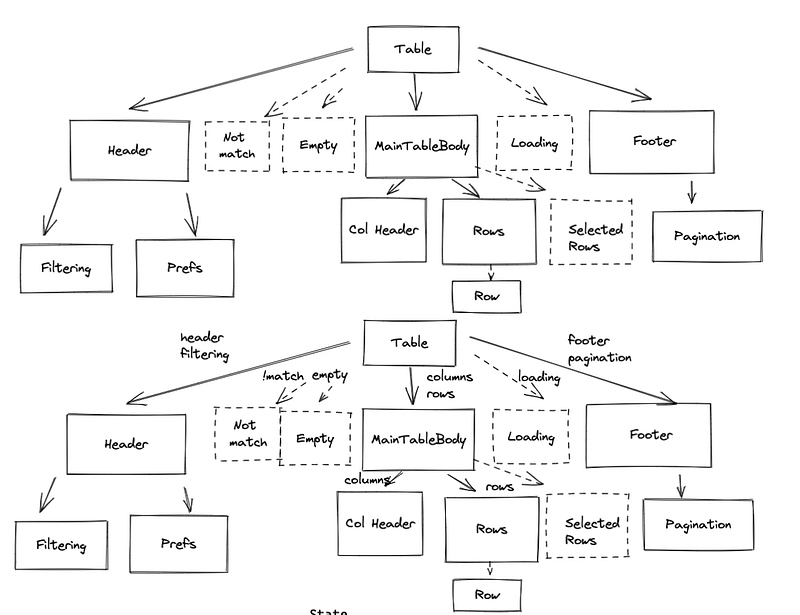

Table component architecture

UI State & Props

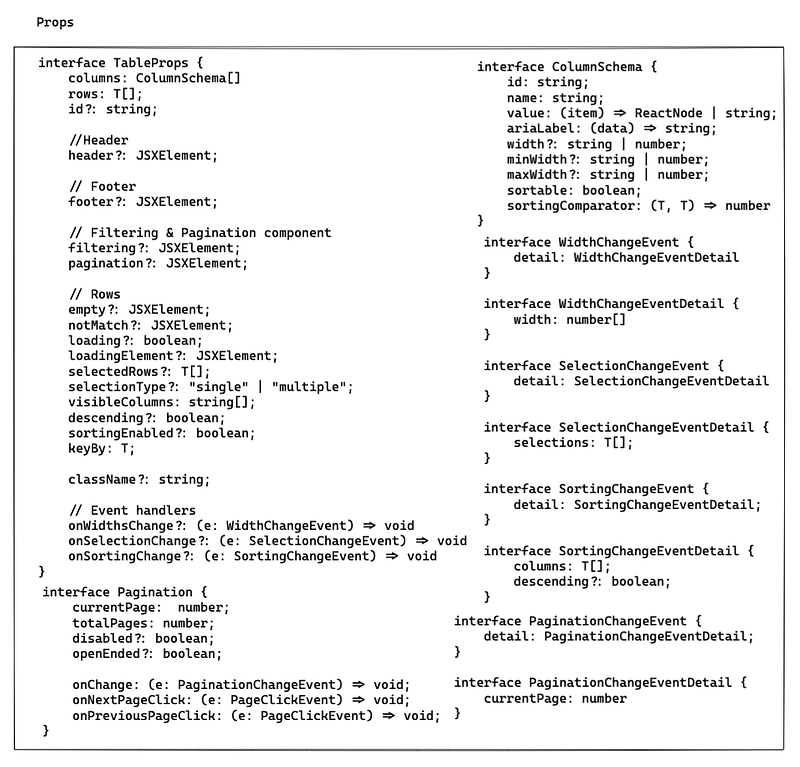

Table component props

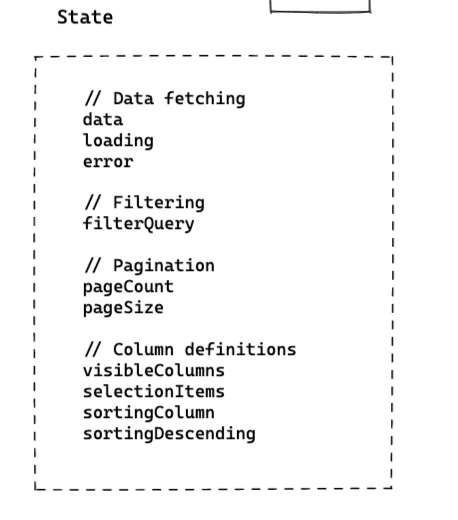

State when using the table component in React

Performance Improvements

1. Provide key property for improved re-rendering of list items 2. If using react — Use react hooks to avoid re-rendering 3. Event delegation

Internationalization — sample i18n.json:

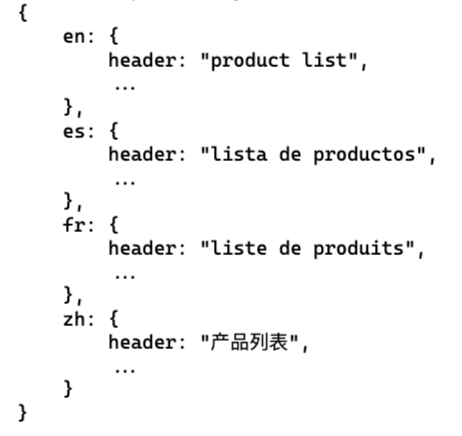

Sample i18n.json

Mobile support

1. To have a different design on mobile — horizontal table to vertical 2. Multiple lines 3. Use accordion to show less important data 4. Table preferences — hide certain columns 5. Sticky columns to the left or right side

Accessibility

1. Using table markup to present tabular data 2. Using the scope attribute to associate header cells and data cells in data tables 3. Pass in the aria label for selection to align with the language

If you like this content, please give me a thumbs up. Please let me know your insights and thoughts on this. It would be very nice to grow with you all and extend my knowledge.
