Automated Test Coverage Check in buildSrc

Ever wonder if you could automate your coverage checking in your CI (Continuous Integration), as the image above? And also have the coverage checking on a separate build source (buildSrc of gradle)…

In this Blog the focus is to how use buildSrc in gradle to build a Coverage Check for your build process. The explanation of what is buildSrc is very well defined in

Add Jacoco Coverage

The first step is to use Jacoco Coverage. If you already know how to on this, you could skip this section.

I assume you already have your App code working with some tests. To add Jacoco Code Coverage (for Android), would be a simple process.

1. In your root’s build.gradle, add classpath ‘com.dicedmelon.gradle:jacoco-android:0.1.2’ to buildscript dependencies
2. In your module (in our case app) build.gradle, add apply plugin: ‘jacoco-android’ at the top of the file
3. Optional: exclude any modules that is not wanted for coverage measurement. In my case is the Activity, since it is not a presenter logic code that I wanted to test.

jacocoAndroidUnitTestReport {
    excludes += ['**/*Activity*.*']
}

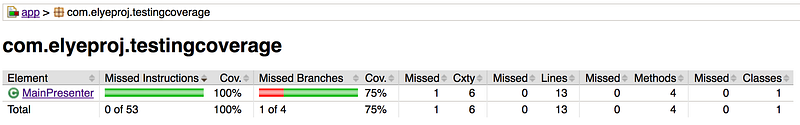

With this in place, if you run your test, you could get your code coverage in

/app/build/reports/jacoco/jacocoTestDebugUnitTestReport/html/index.html

This is good, but it doesn’t automatically check for you if it meets your requirement. I will show you how in next section.

Add Coverage Check process in buildSrc

Actually, there’re some references on how to write gradle script to measure it. To be exact, it is from here. For this blog, I’ll show you how to get the scripts in a more organized fashion in buildSrc, so you don’t need to add extra gradle scripts to the root folder.

1. Create a custom gradle plugin in buildSrc

Under your application root folder, create a buildSrc folder. Then make the directory src/main/groovy. In thegroovy folder, you could put your groovy based classes code there, as instructed below

2. Create CoverageCheckTask.groovy class to perform the check

Based on the code here, transform it into Groovy class format and break it down to relevant functions for more clarity.

The code starts as below. Refers to github for the other part of the codes.

class CoverageCheckTask extends DefaultTask {
    String reportPath
    String coverageRequired

    @TaskAction
    def testCoverageVerification() {
        reportPath = project.coverageCheckConfig.reportPath
        coverageRequired =
               project.coverageCheckConfig.coverageRequired

       // ... Call the relevant def functions for checking coverage
    }

    // ... more codes. Refer to the git
}

Note the above reportPath is to indicate the path of the Jacoco Coverage Report. The coverageRequired is the path of the file to state the expected % required. It looks like below (100% for all… the ideal case :)

instruction=100
branch=100
line=100
complexity=100
method=100
class=100

3. Create CoverageCheckTaskConfig.groovy class to define inputs for the Coverage Check Task class

package custom.build.gradle

class CoverageCheckTaskConfig {
    String reportPath
    String coverageRequired
}

This is defined, so that in your app’s build.gradle, you could set this inputs accordingly per your app’s module specific folder data. I’ll elaborate in the last section beneath.

4. Create CustomBuildPlugin.groovy class to define the plugin entry

class CustomBuildPlugin implements Plugin<Project> {
    void apply(Project project) {
        project.extensions.create('coverageCheckConfig',
                                        CoverageCheckTaskConfig)
        project.tasks.create('coverageCheck', CoverageCheckTask)
    }
}

This is the plugin definition that connects all the CoverageCheckTaskConfig, CoverageCheckTask and also the entry to it, which is

• coverageCheckConfig — the task configuration scope that your app’s build.gradle to define the path of reportPath and coverageRequired
• coverageCheck — the task name that your app’s build.gradle could access.

This could be seen clearer in the section beneath.

4. Define the META-INF.gradle-plugins for your CustomBuildPlugin

Under the main folder, create META-INF.gradle-plugins folder. In that folder, create a file name custombuild.properties

In the file, just define your implementation-class as below

implementation-class=custom.build.gradle.CustomBuildPlugin

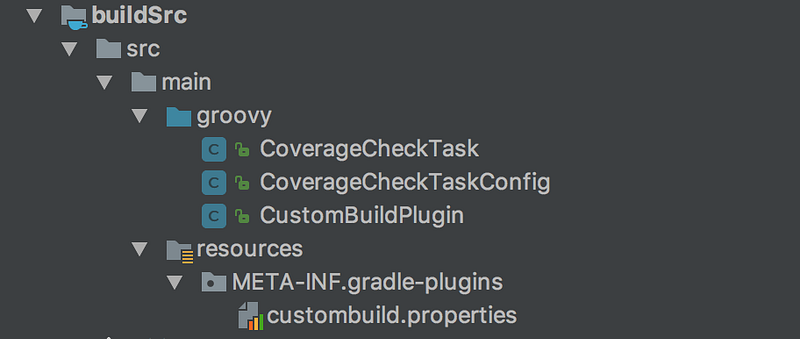

By now, your buildSrc should look like this.

Call Coverage Check from your app module

Now you have the Coverage Check class defined in buildSrc, you could then use it in your module (app module or other modules you have defined).

To use it, is quite simple. Just need to add the below code to your build.gradle.

apply plugin: custom.build.gradle.CustomBuildPlugin

coverageCheckConfig {
    reportPath = "app/build/reports/jacoco/" +
            "jacocoTestDebugUnitTestReport/" +
            "jacocoTestDebugUnitTestReport.xml"
    coverageRequired = "app/coverage.properties"
}

coverageCheck.dependsOn "jacocoTestDebugUnitTestReport"

In this code, we just

• apply the custom.build.gradle.CustomBuildPlugin plugin
• define your reportPath and converageRequired path through coverageCheckConfig
• inform that coverageCheck task depends on jacocoTestDebugUnitTestReport task, so that jacoco report could be generate first before your run your converageCheck task.

With this defined, all done! Ready to check your automated coverage check triggered.

Code references

All the above codes are available in github.

To show the test, it has simple App that enable user to enter 2 numbers and sum it up. The logic is stored in MainPresenter class. And unit test is added to MainPresenter with 100% coverage.

To run the test and it’s code coverage, just run (i.e. clean the build, and run test)

./gradlew clean coverageCheck

It will result as below

> Task :app:coverageCheck
Passed Code Coverage Checks

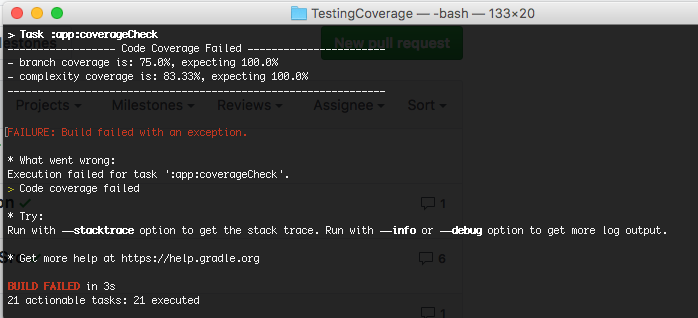

If you disable one of the test, it will result as something like below

If you inspect the Coverage Check codes, it also will update the coverage.properties when the % coverage improve. So you could actually start with 0% for all, and incrementally improve from there.

Happy Testing and Code Coverage-ing!!
