The 3 Most Powerful Architecture Decisions (10 min podcast)

Power your way to the crucial answers for your solution.

[I am experimenting with what I call an ‘enhanced’ Podcast. The audio is accompanied by visuals and the complete transcript (below). So the reader can listen, watch, or read as convenient.]

Today, I will talk to you about the three most powerful architectural decisions. It will make you an expert in finding and dealing with the most critical solution problems first and foremost.

A little backstory: I transitioned into architecture in 2001. My first substantial project was a dealer incentive management system for a large company. There was a lot to work out, and it was daunting. Where would I begin? How would I know if I was making the right decisions? I had formal architecture training, but you know what? Unless one gets into the deep end, it’s all theory. I completed it somehow.

However, it was only after doing four or five architecture projects that I started working things out more easily. I began to see the patterns in the problems and solutions. And I discovered efficient ways of getting good outcomes.

Today, I will share the technique I refined that will demystify a critical aspect of architecture for you — how we can find and expertly deal with architectural problems. It can seem mysterious to outsiders. But it is not an art and does not have to be a struggle. Let’s see how we can make our lives easier and deliver good customer outcomes.

Preparation

Now, the complexity can be enormous if you look at a typical IT landscape of systems and how they work with each other. Imagine scores of systems and hundreds of interfaces. If something new or a significant change affects a large area, how does one start dealing with the large number of possible architectural decisions required? How do we even know if we have asked and answered the most important questions?

It can be a jungle, and we must slash a path through it. We will start with these three tools.

• First, a clear destination: Precise functional and non-functional (or quality) requirements.
• Second, a birds-eye view of the land: This means the details of the existing architecture in the form of lists of assets, their functions, integrations, and diagrams.
• Third, a machete: a clear and sharp architectural thinking technique.

Now that we are well equipped, we can clear a path through the undergrowth in three stages, in the form of three types of Architecture Decisions (aka ADs). Why three and not five or ten? Well, this is from my experience, from getting through such jungles a few hundred times till now. I have learned that these are the most critical problems, and if we deal with them first, we make headway fast and get control over the other architecture, design, and technology decisions. Trust me and try it. It works for me, and it will work for you.

The 3 Fundamental Architecture Decisions

1. Function Placement ADs
2. Data Source ADs
3. Integration Method ADs

Let’s have an in-depth look at each. Now keep this in mind; we will be applying the core architectural motivation –

Achieve the maximum functionality and quality at the minimum long term cost. It is the ‘Science of the Optimum’.

Cohesion, Loose Coupling and Reuse are the underlying patterns that help to get this balance. They drive several services, data types and interfaces to the same component and separate others. [You can look up these three essential concepts in books or on the internet, or drop me a line, and I’ll explain them.]

Problem 1: Function Placement (FP) ADs

They address the central problem — where should the functions be executed? To work this out, take each Functional Requirement and see if there is an existing system, component or sub-component (these formal architectural constructs are the subject of a separate article) or a combination that provides the underlying technical function. If not, see if there is one that you can extend for it. No joy? Then, you need a new architectural component for it. Reusing systems is the least expensive overall. Creating a new one is the costliest and should be avoided if possible. And for a new one, buying may be cheaper today than building. Repeat this AD for every new or modified business requirement.

You can apply a mantra while attacking Function Placement ADs: “Reuse before modify, modify before buy, buy before build”.

Problem 2: Data Source (DS) ADs

The second problem we deal with is — where the function will get the external data it needs. (No decision is required for the location of the primary or internal data of a system, for, by definition, it will naturally be in a native repository directly accessed by the business logic layer or UI layer.)

Information Technology is, essentially, “data in — data out”. And the overall enterprise cost of IT is pegged to the amount of data it handles and stores. Storage costs per Petabyte are falling, but the need for the enterprise to reduce costs will always outpace everything. So, we architects have to take the utmost care to optimise the flows and storage of data.

There are two main types of data stores — those for Systems of Engagement (SoE) and those that are Systems of Record (SoR). An SoE does not need to store data for long, whereas an SoR does for regulatory and analytical needs. SoR data stores can typically be ten to a hundred times larger than SoE data stores.

Now, for an application that needs to carry out a function that needs data that it does not itself generate or ‘own’, the architectural problem is whether it should (a) take it from the external owner, let’s call it the ‘master’ or (b) some other system that already has a copy of it, let’s call it the ‘record’ or © make a ‘local’ copy for itself.

There has to be an excellent reason for making a local copy of some other system’s core data because every copy involves computing and temporary storage costs at the source, network costs to transport it, and computing and storage costs in the destination system. A few of the right reasons are — low latency requirements, information enrichment that is owned by the consuming application, and retention longer than provided by the master. Take these factors into account while making this AD.

You can apply the mantra while attacking Data Source ADs: “Master before Record before Local”.

[I have a litmus test that quickly and objectively indicates whether we should use the external master/record data or a local copy. I want you to focus on the steps in this podcast, so I will leave it out and publish it in a dedicated article in the future. You can drop me a line if you want it right away.]

Problem 3: Integration Method (IM) ADs

Having gotten so far with the Function and Data Source ADs, the edge of the jungle starts coming into sight, and Integration architecture decisions will get us through. They are relatively straightforward but equally vital. It addresses the problem — how should a system talk to others to get or give data and services?

The focus is to ensure simplicity in communication between the components in the overall architecture, as the cost here comes from maintaining the resulting mesh of connections. Direct connections between systems are the simplest and possible in a mature service-oriented architecture. Here, well-designed clients and serving applications can handle integration needs such as standard protocols, publish-subscribe patterns, peak load smoothening, data aggregation, etc. Only where this maturity is unavailable should we use Enterprise Application Integration (or EAI) platforms to provide the necessary facilities. Finally, an old fallback is to exchange the required information between applications using files. With file exchanges, there can be data reconciliation concerns and additional processing, network and storage costs. But for certain problems, it is a natural choice. It is suited for more extensive data sizes, higher latency toleration and batch operations and is used more often even now than one may think.

You can apply the mantra while attacking Integration ADs: “Direct before EAI, EAI before files”.

[For this, too, I have a litmus test for deciding between direct and EAI-mediated integration, but like the one for data copying, I will leave it for a dedicated future article. Please get in touch with me if you want it immediately.]

Associated Decisions

After you’ve made functional architectural decisions, you often need to decide on the technology and sometimes design elements, too. These are called:

• Technology Decisions (TDs)
• Design Decisions (DDs)

The same thinking approach applies to them — state the problem, identify the options, compare them to choose the best one, and identify the implications.

Architectural Decision Steps and Artefact

There are four steps in making architectural decisions.

1. Collect the relevant reference architectures and architecture patterns
2. Convert the business requirements into architectural problem statements for function placement, data repository/source, and integration method. The three main types are described previously.
3. Let the reference architecture and architecture patterns provide as many decisions as possible that make sense. For example, for the problem statement ‘From where shall the checkout component get the order delivery time?’ let’s say the reference architecture shows a suitable API on the logistics system; that could be the decision.
4. For the rest of the problem statements, use an Architecture Decision Template to state the problem, list all reasonable solution options taking constraints into account, select the best one, justify it, and capture its implications for technology, other decisions, designs, etc.

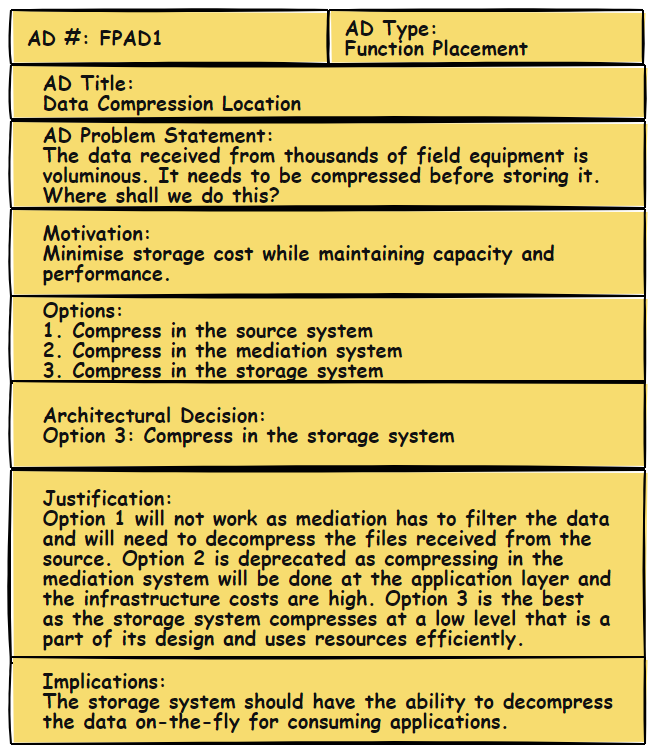

Please take a look at the AD template and example below.

Summarise the ADs

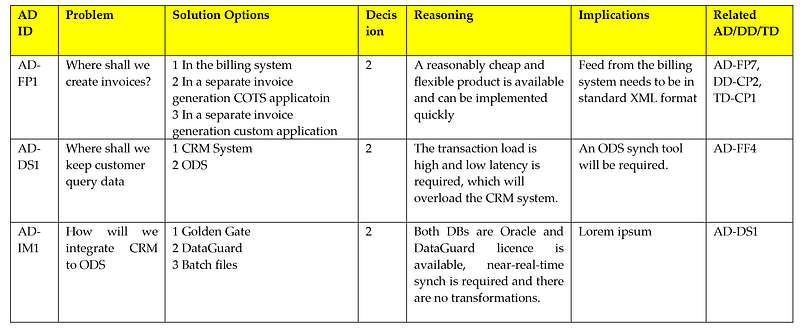

As you progress through the AD jungle, you must put down a map of your way through and get an overview. So, record the above ADs in a summary table if there are more than a handful. It should have the AD ID and Type, a concise problem statement, the solution options considered, the decision, the reasoning and any implications. Mention the related ADs, TDs and DDs as they become available for cross-reference. Filling out this summary will help show others why you took a particular course, and they can follow you easily.

Endnote

These three ADs of Function Placement, Data Source and Integration Method apply to the problems of all the architecture disciplines, especially business, enterprise and application architectures.

Of course, there are several more domains — information, integration, infrastructure and security. To cover all seven fields and their layers for the many IT systems could mean scores of problem statements and decisions.

But with the above approach, you will break the back of the work and deliver high value fast for your customers.

Enjoy, my friends.
